Radio/Stereo

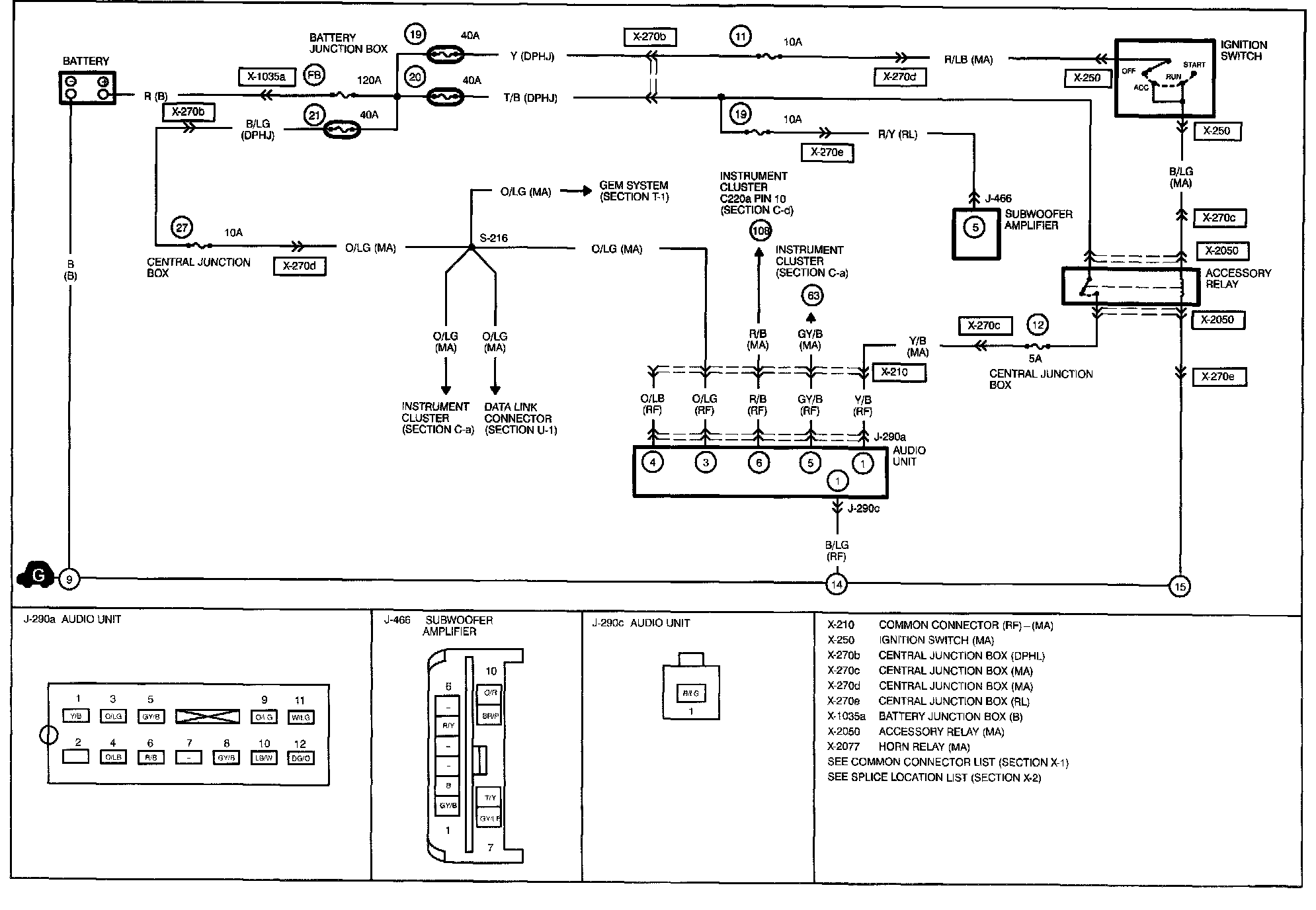

J-a - Audio Unit Circuit:

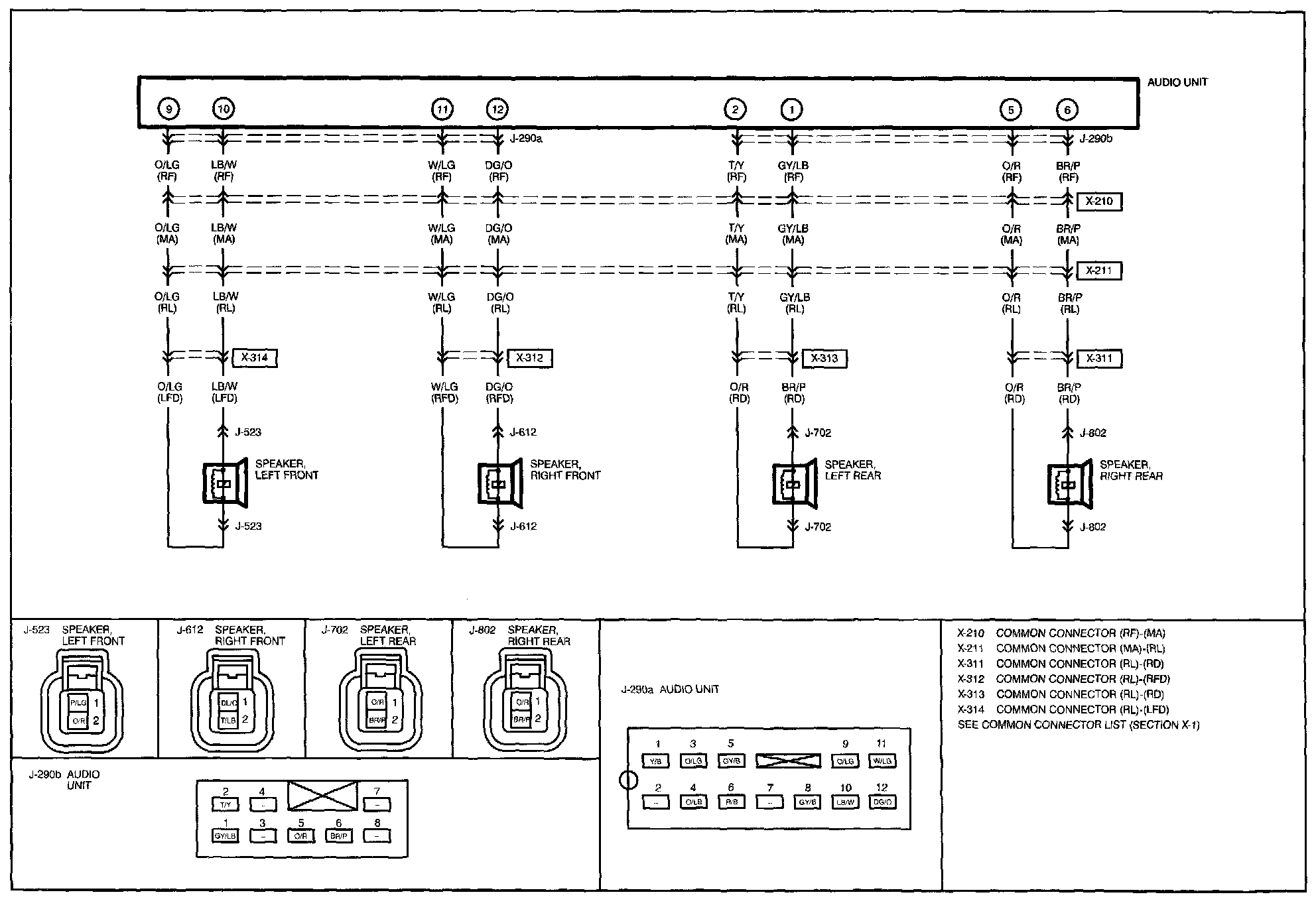

J-b - Audio Unit (Base) Circuit:

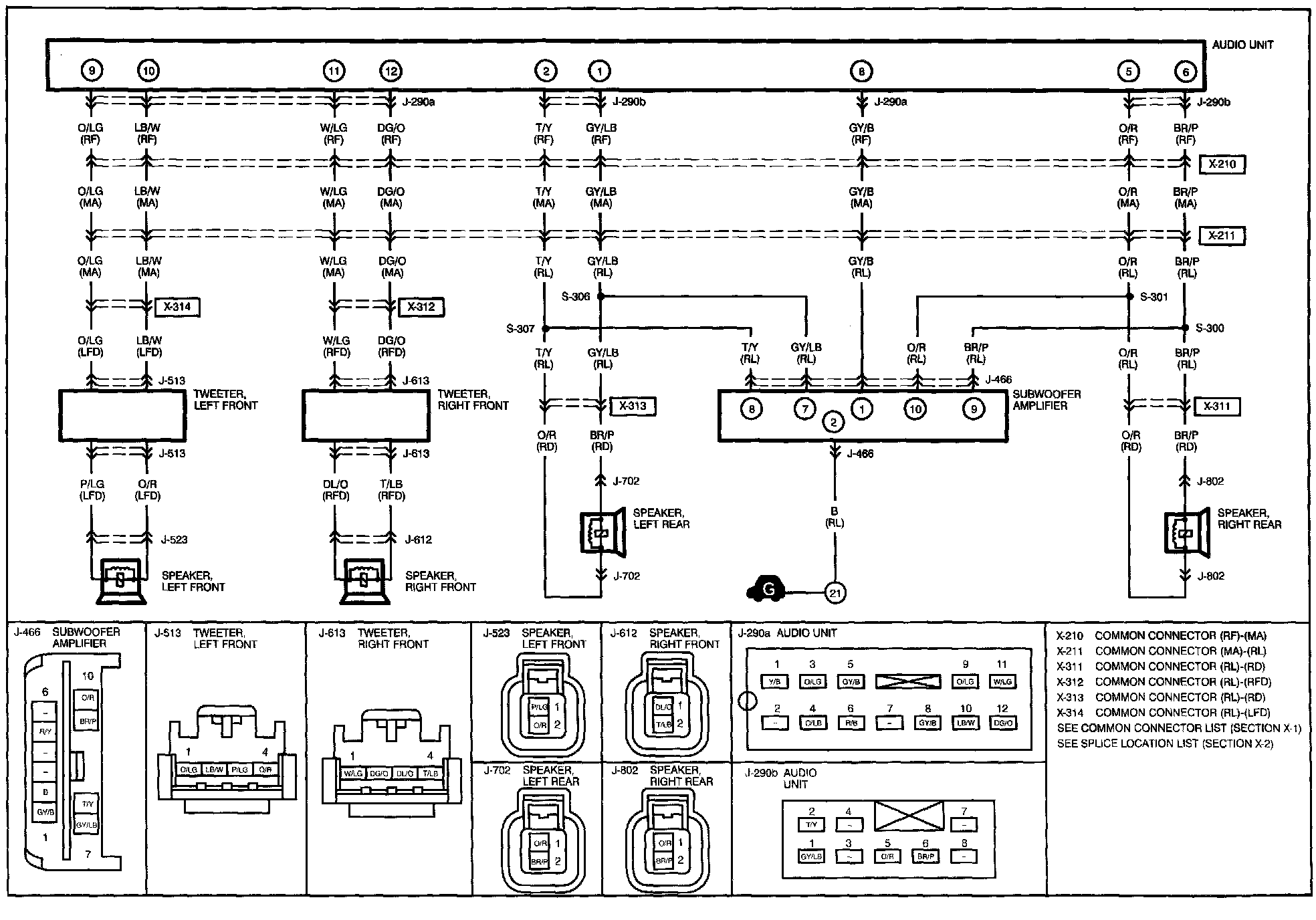

J-b - Audio Unit (Midline) Circuit:

Wiring Diagrams

NOTE: To view other sections referred to in these diagrams, see Complete Body and Chassis Diagrams by Section (A Thru Z) Electrical Diagrams
