System Diagram

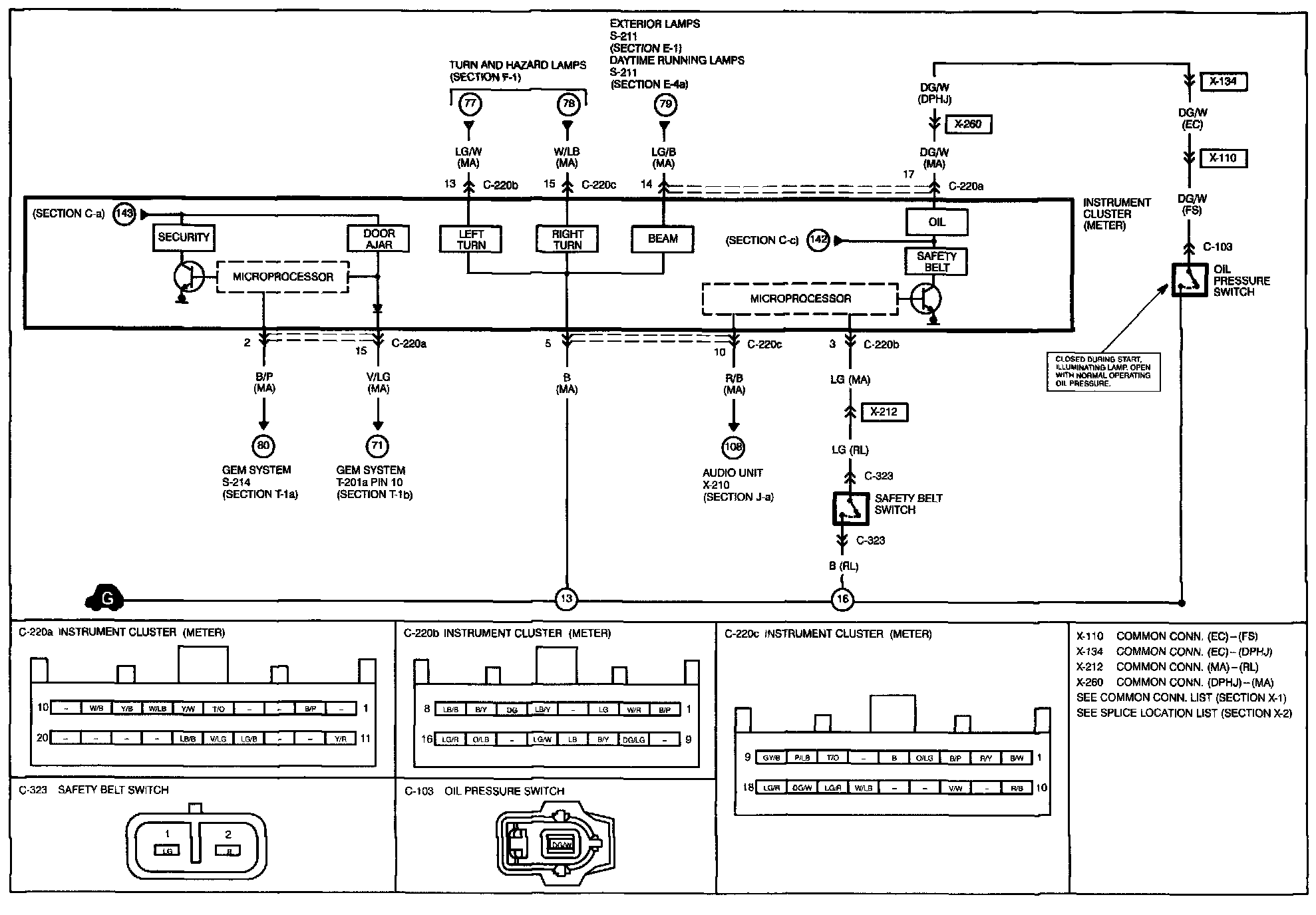

C-a - Instrument Cluster (Meter) Circuit:

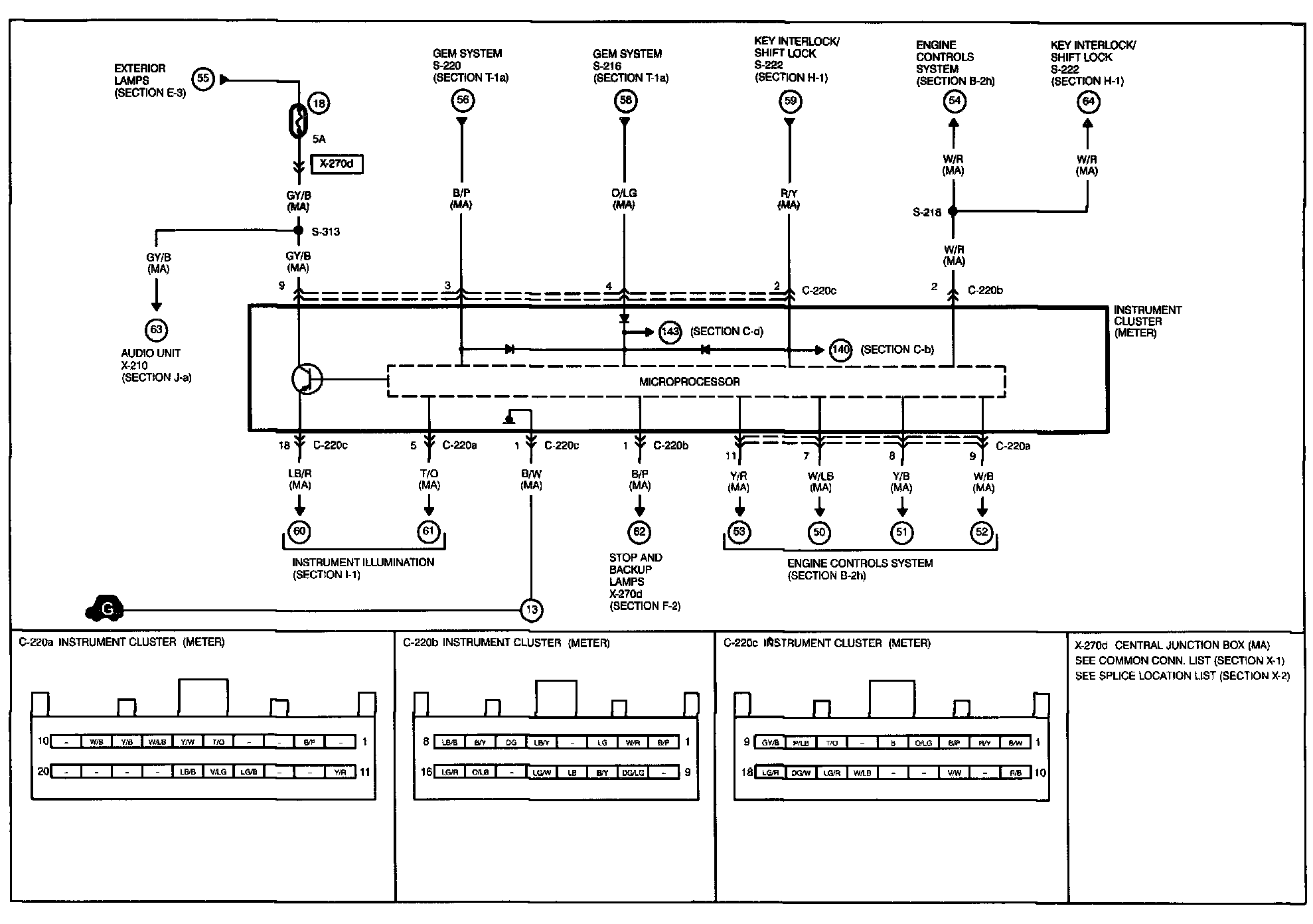

C-b - Instrument Cluster (Meter) Circuit:

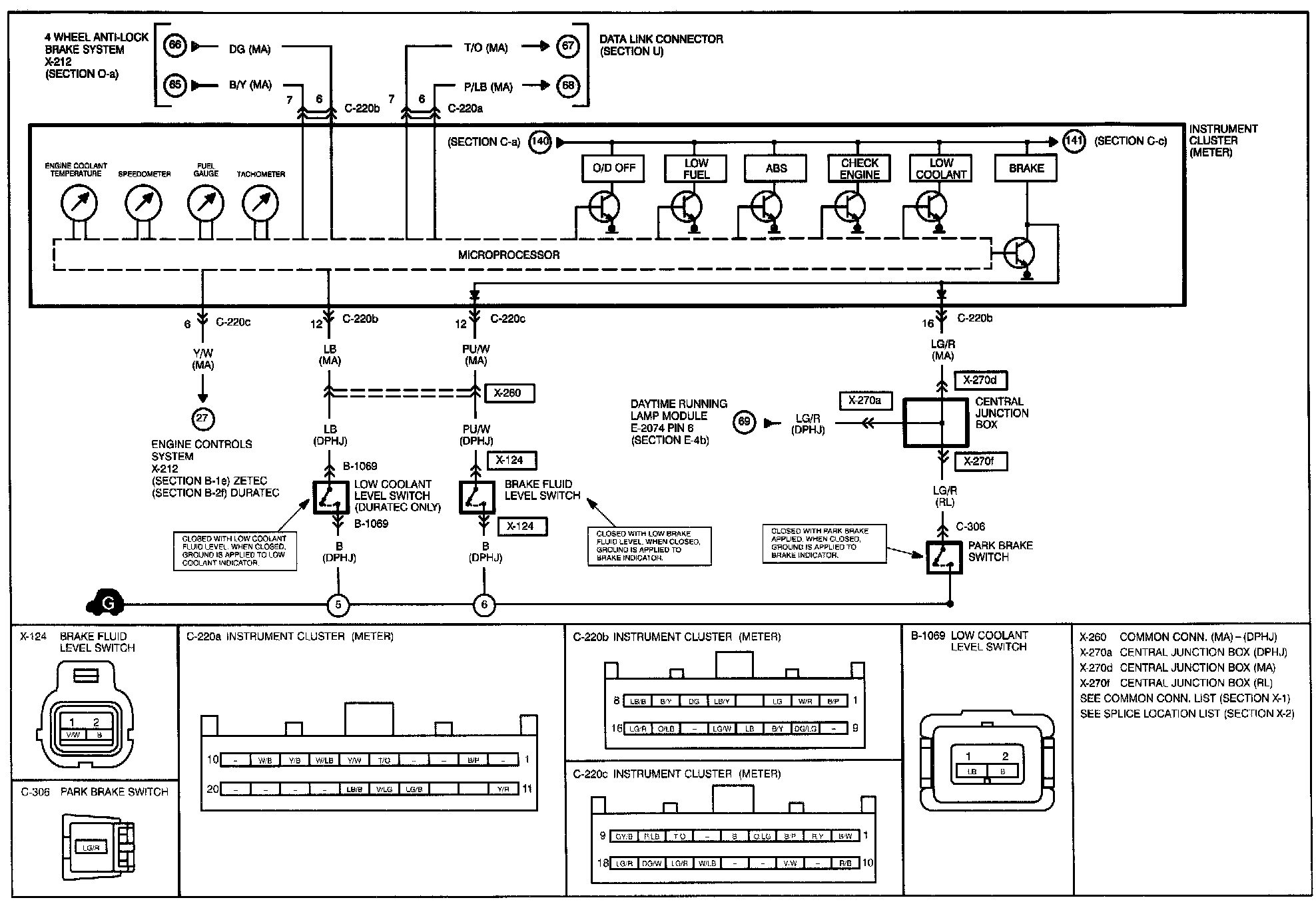

C-c - Instrument Cluster (Meter) Circuit:

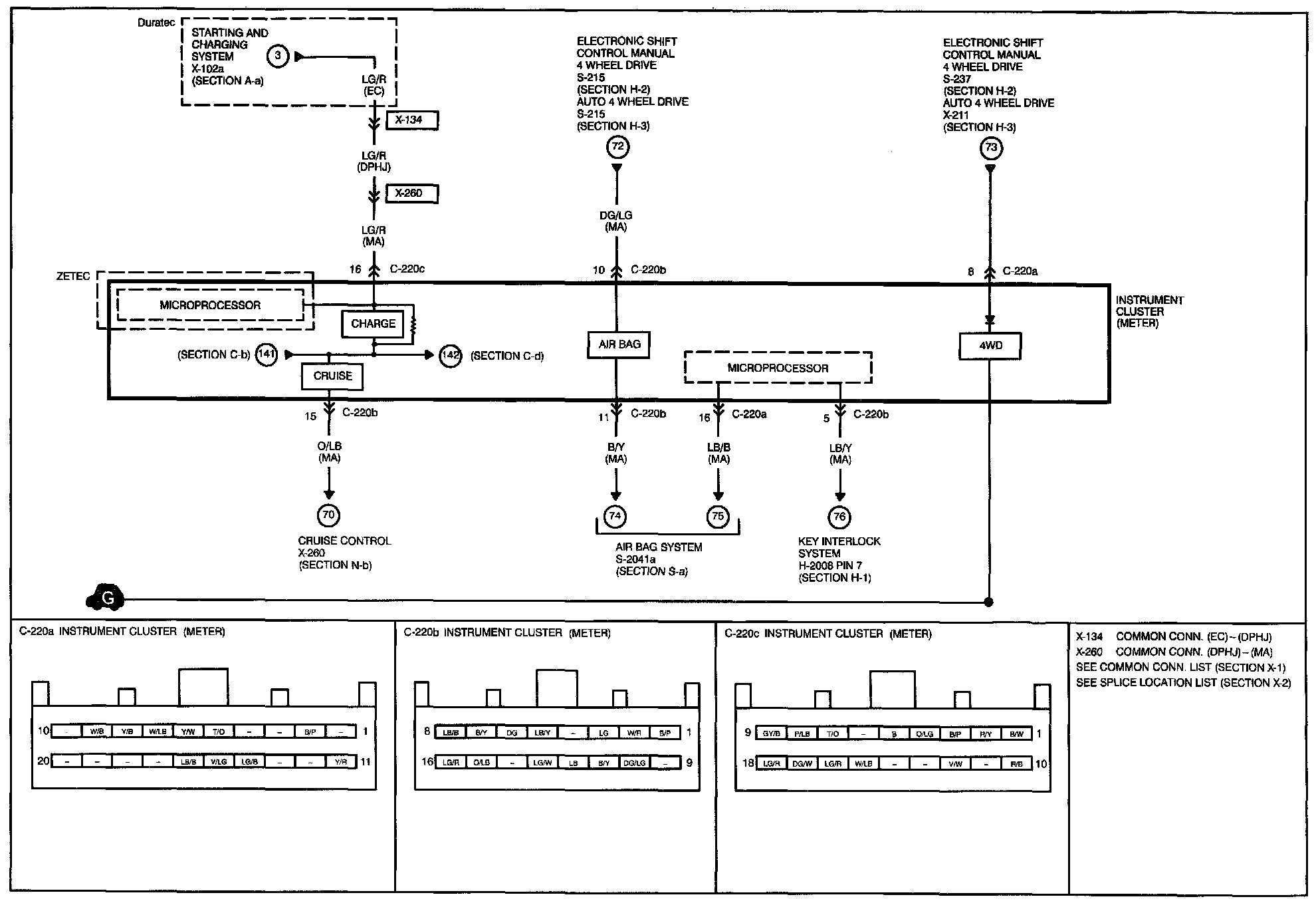

C-d - Instrument Cluster (Meter) Circuit:

Wiring Diagrams

NOTE: To view other sections referred to in these diagrams, see Complete Body and Chassis Diagrams by Section (A Thru Z) Electrical Diagrams
