Four Wheel Drive Selector Switch

H-2 - Electronic Shift Control (Manual Four-Wheel Drive) Circuit:

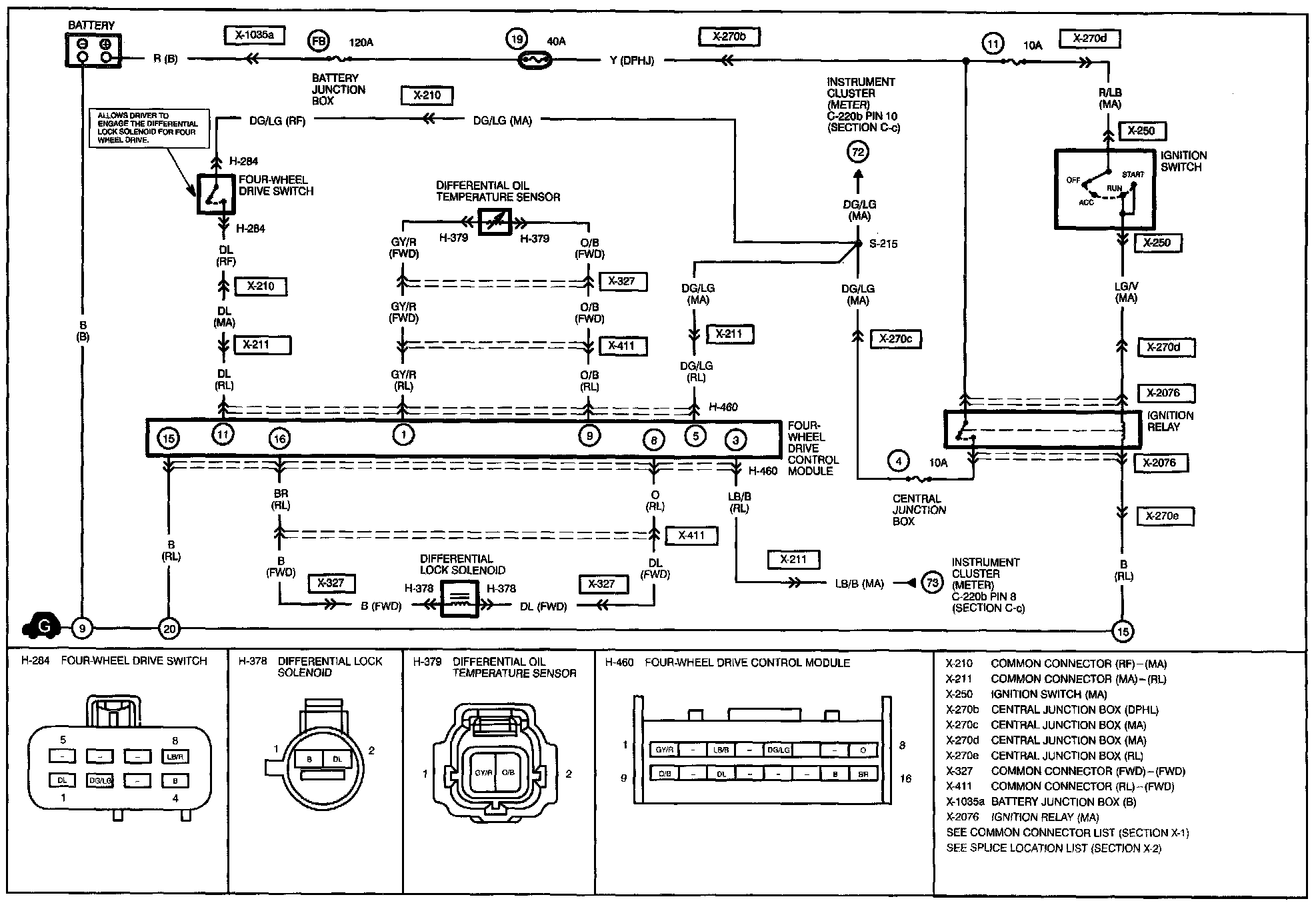

H-3 - Electronic Shift Control (Automatic Four-Wheel Drive) Circuit:

Wiring Diagrams

NOTE: To view other sections referred to in these diagrams, see Complete Body and Chassis Diagrams by Section (A Thru Z) Electrical Diagrams
