Daytime Running Lamp

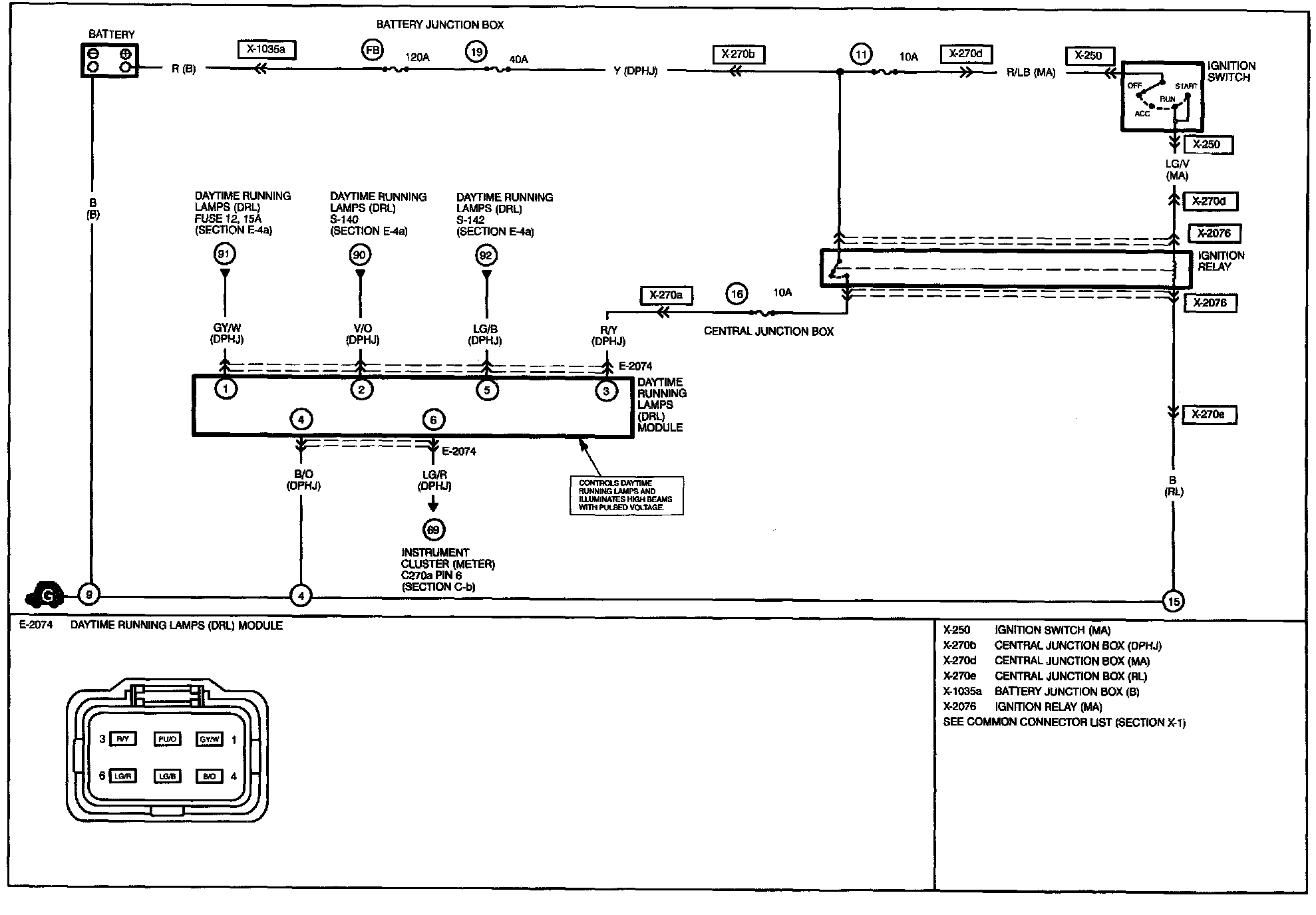

E-4a - Day Time Running Lamps (DRL) Circuit:

E-4b - Day Time Running Lamps (DRL) Circuit:

Wiring Diagrams

NOTE: To view other sections referred to in these diagrams, see Complete Body and Chassis Diagrams by Section (A Thru Z) Electrical Diagrams
