Parking Brake Cable-Rear

Removal and Installation
1. Remove the rear drum brake shoes.

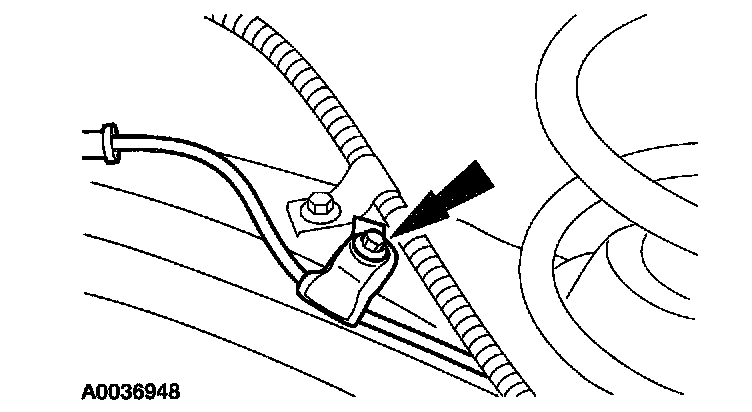

2. If equipped with ABS, remove the ABS cable bracket bolt.

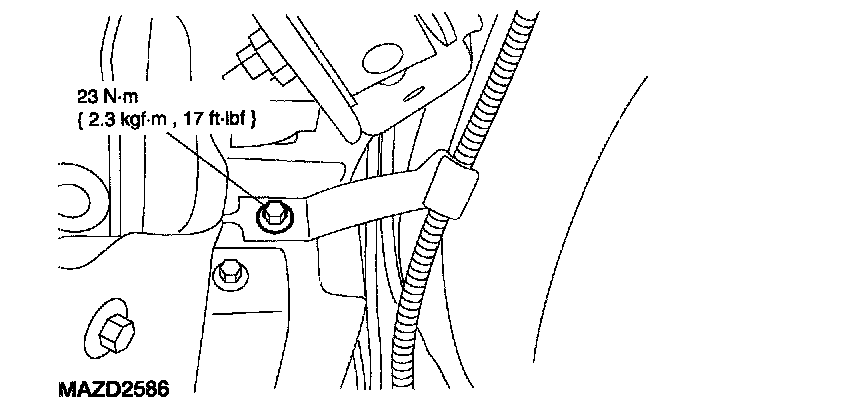

3. Remove the rear parking brake cable to trailing arm bracket bolts.

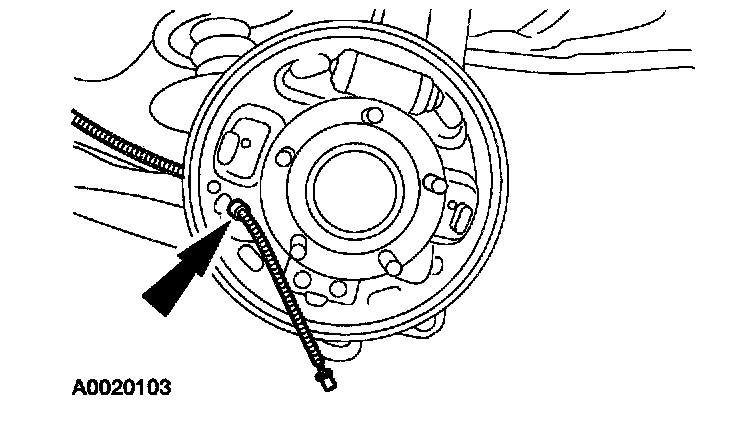

4. Disconnect the rear parking brake cable from the backing plates.

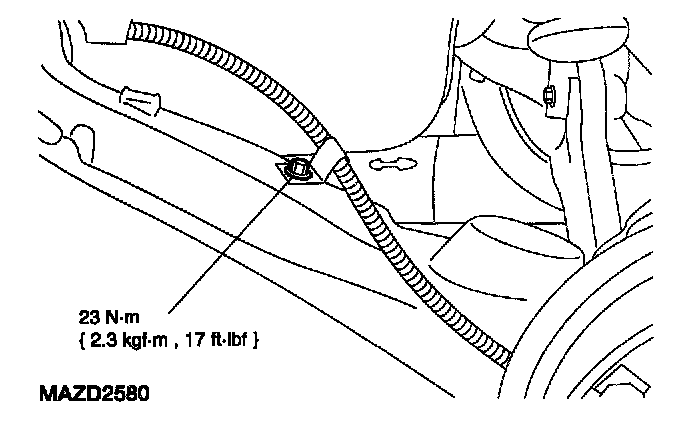

5. Remove the rear parking brake cable bracket bolts.

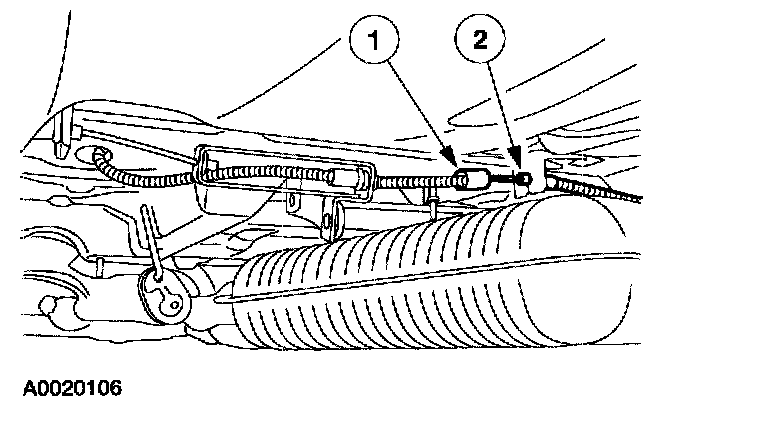

6. Remove the RH side rear parking brake cable.
1. Disconnect the RH side rear parking brake cable from the front parking brake cable.
2. Disconnect the RH side rear parking brake cable from the parking brake bracket.

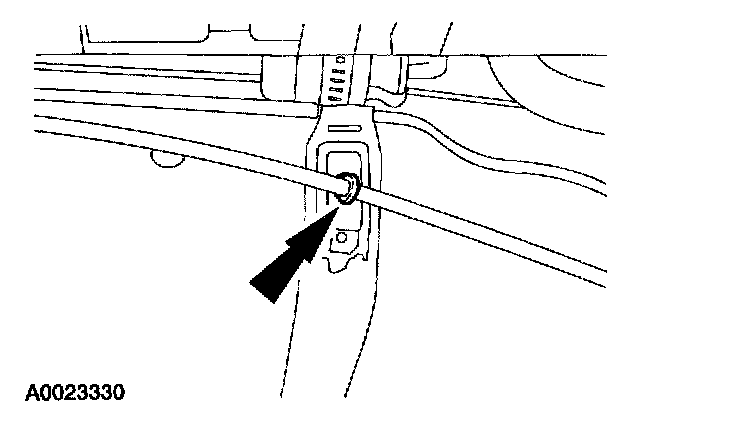

7. Disconnect the rear parking brake cable to fuel tank support strap.

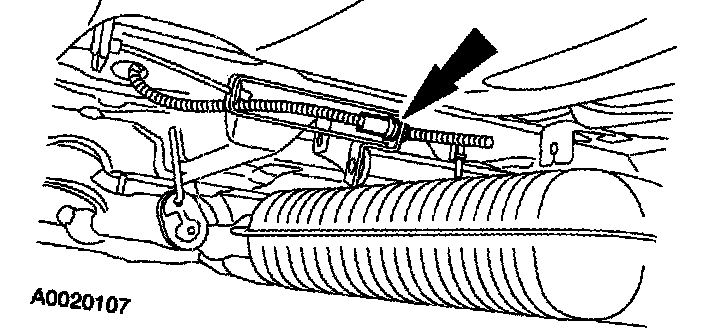

8. Disconnect the front parking brake cable.

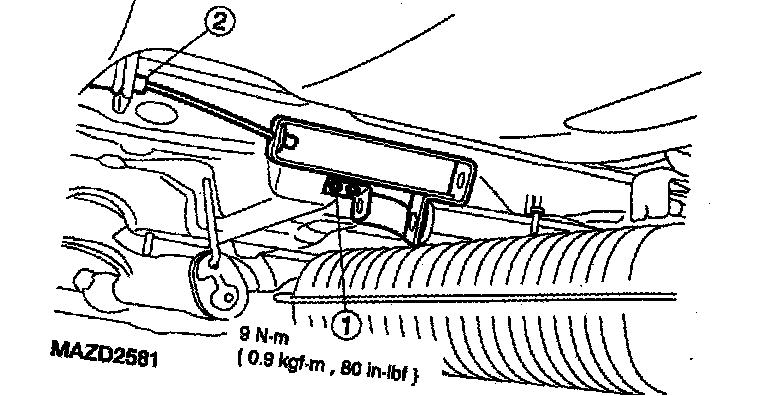

9. Remove the LH rear parking brake cable.
1. Remove the two bolts.
2. Disconnect the rear parking brake cable from the parking brake bracket.
10. To install, reverse the removal procedure.
