Parking Brake Cable-Front

Removal and Installation
1. Remove the parking brake control.

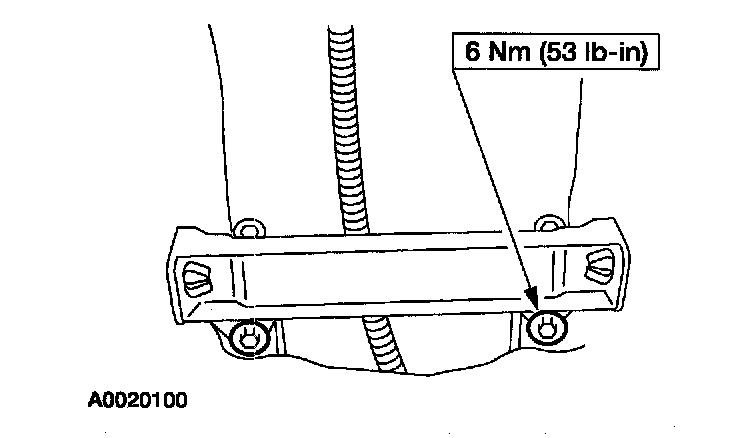

2. Remove the two bolts and the floor console bracket.
3. Raise and support the vehicle.





4. Remove the front parking brake cable.

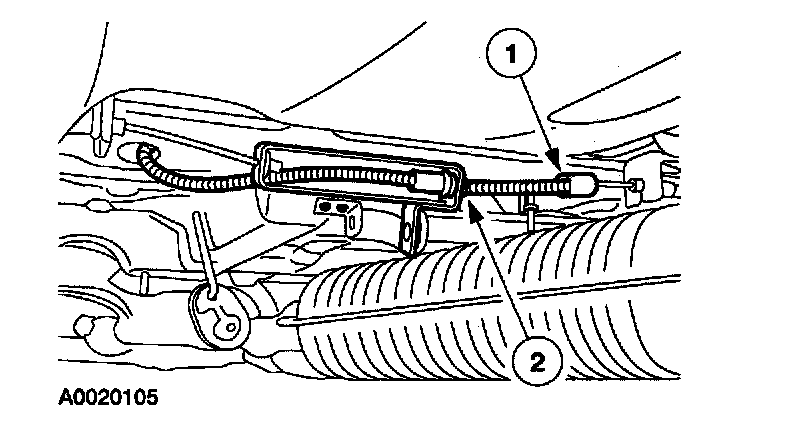

1. Disconnect the parking brake cable from the RH side rear parking brake cable.
2. Disconnect the front parking brake cable from the parking brake cable equalizer.
5. To install, reverse the removal procedure.
