REAR SEAT BACKREST - SPLIT BENCHRemoval
NOTE: The 40% rear seat backrest must be removed before the 60% rear seat backrest
40% rear seat backrest
1. Remove the 40% rear seat backrest.

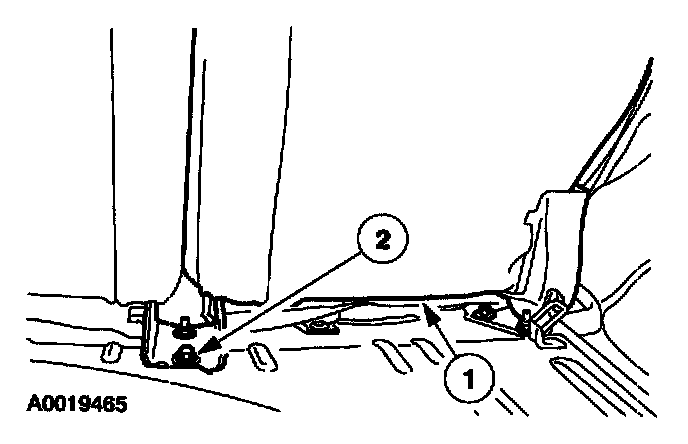

1. Remove the nuts and bolts.
2. Remove the backrest.
60% rear seat backrest
2. Remove the 60% rear seat backrest.

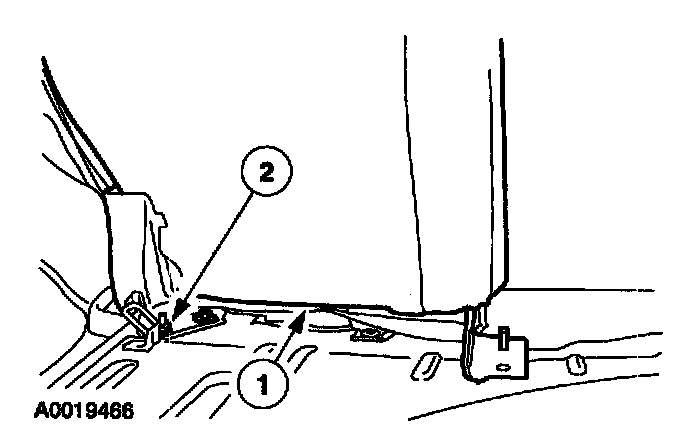

1. Remove the nut and bolt.
2. Remove the backrest.
Installation
NOTE: The 60% rear seat backrest must be installed before the 40% rear seat backrest.
60% rear seat backrest
NOTE: Do not tighten the nut and bolt at this time.
1. Install the 60% rear seat backrest.

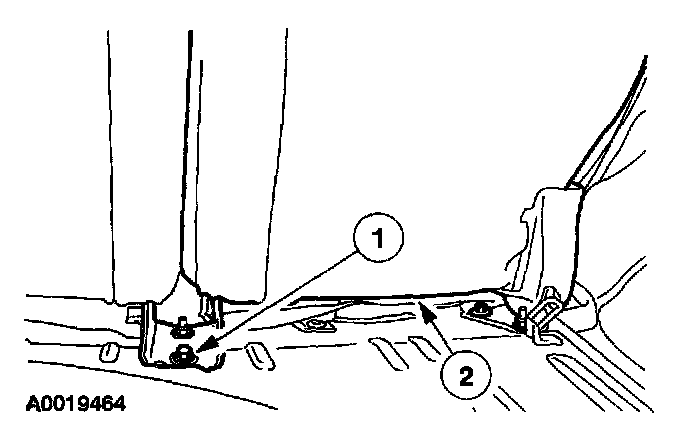

1. Install the rear seat backrest.
2. Install the nut and bolt.
40% rear seat backrest
NOTE: Do not tighten the nuts and bolts at this time.
2. Install the 40% rear seat backrest.

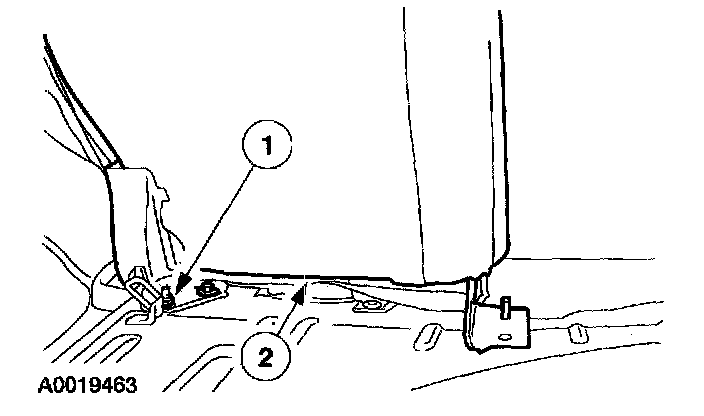

1. Install the rear seat backrest.
2. Install the nuts and bolts.
60/40% rear seat backrest

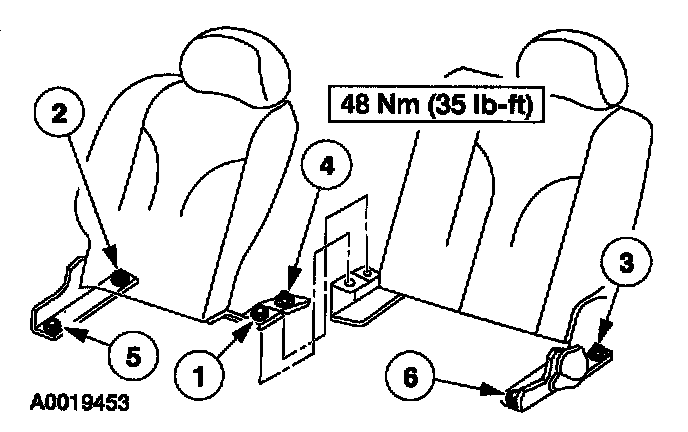

3. Tighten the 60/40% rear seat backrest nuts and bolts in the sequence shown.
40% Rear Seat Backrest

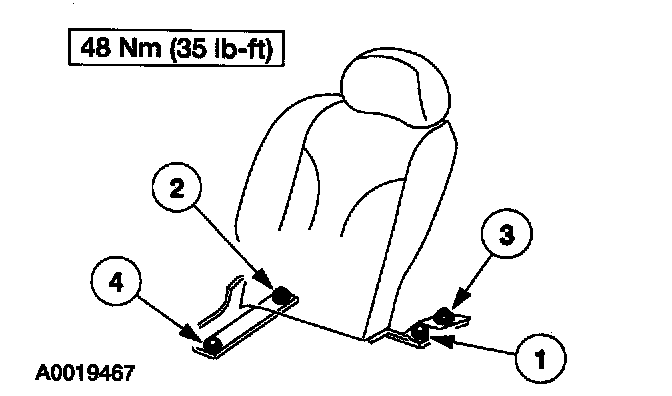

4. Tighten the 40% rear seat backrest nuts and bolts in the sequence shown.
