Rear Door Trim Panel

Removal and Installation

Vehicles with manual windows

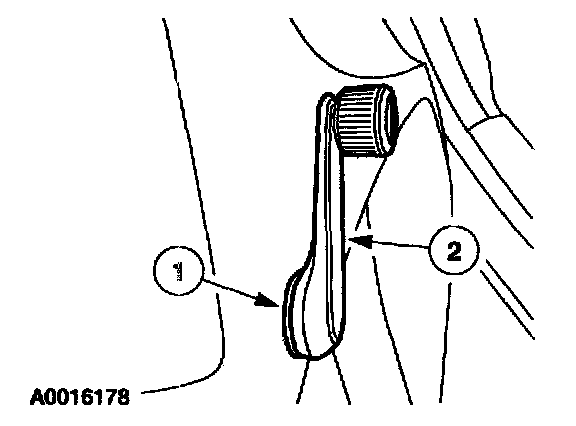

1. Remove the rear door manual window regulator handle.
1. Release the clip.
2. Remove the rear door manual window regulator handle.

All vehicles

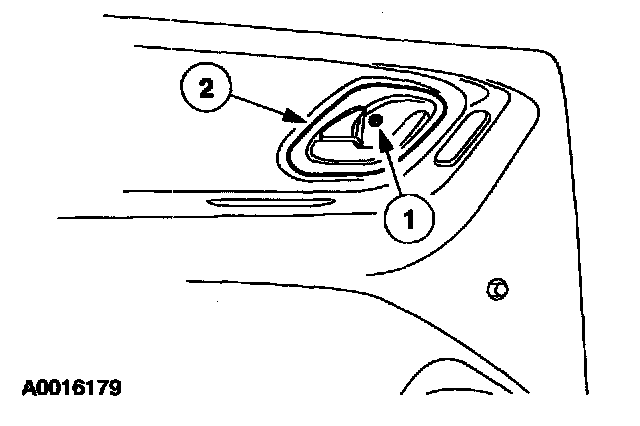

2. Remove the rear door latch release handle bezel.
1. Remove the screw.
2. Remove the rear door latch release handle bezel.

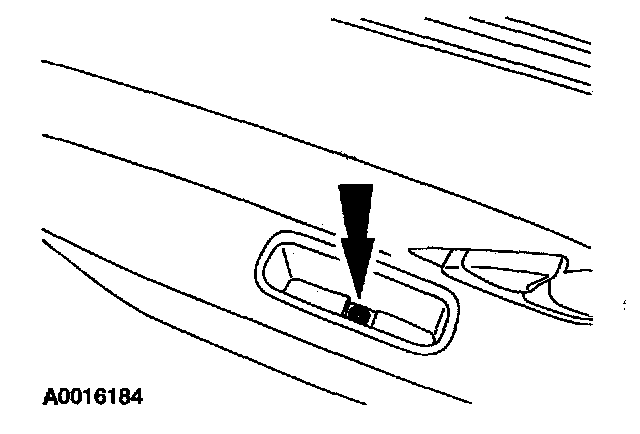

3. Remove the door handle cup screw.

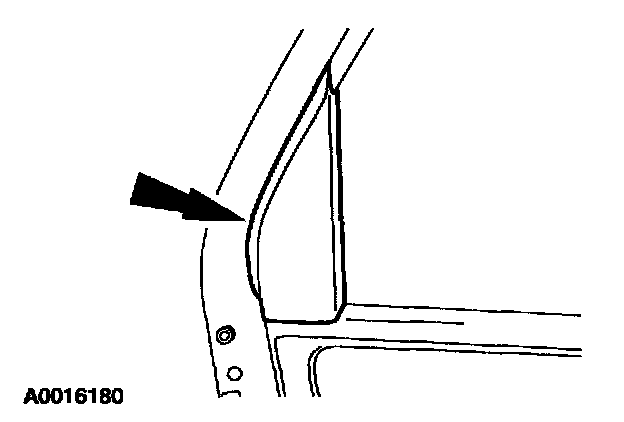

4. Remove the rear door sail panel.

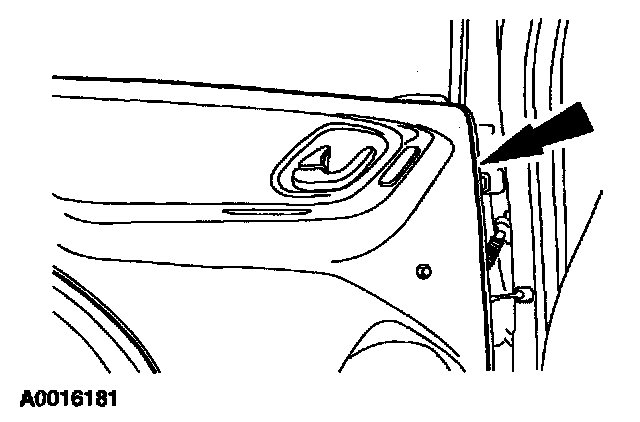

5. Remove the rear door trim panel.
- Disconnect the electrical connector (vehicles with power windows only).

6. To install, reverse the removal procedure.
