Front Door Trim Panel

Removal and Installation

Vehicles with power windows

1. Disconnect the battery ground cable. For additional information, refer to BATTERY DISCONNECT.

Vehicles with manual windows




2. Remove the front door manual window regulator handle.
1. Release the clip.
2. Remove the front door manual window regulator handle.

All vehicles

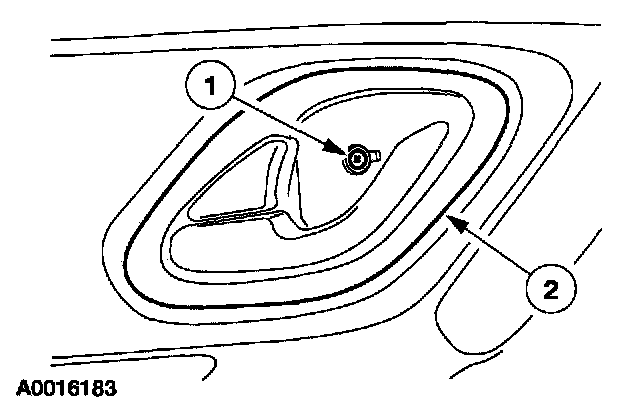

3. Remove the front door latch release handle bezel.
1. Remove the screw.
2. Remove the front door latch release handle bezel.




4. Remove the door handle cup screw.




5. Remove the front door trim panel.
1. Remove the screws.
2. Remove the front door trim panel and disconnect the electrical connector (vehicles with power windows only).

6. To install, reverse the removal procedure.
