B-Pillar Trim Panel

Removal and Installation

WARNING: If the side air bag sensor is subjected to shock or the sensor is disassembled, the side air bag module may operate (deploy) suddenly and cause injury, or it may fail to operate normally and cause a serious accident. Do not subject the side air bag sensor to shock or disassemble the sensor.

Disconnect the battery ground cable and wait at least one minute.




1. Remove the safety belt D-ring cover.

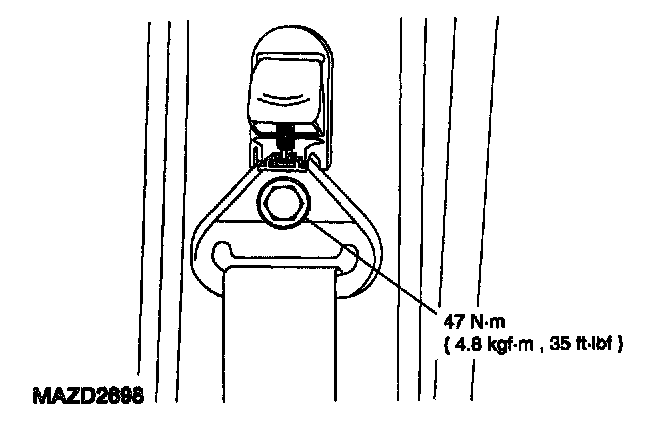

2. Remove the safety belt D-ring bolt.
3. Position the front and rear door weatherstrips aside.

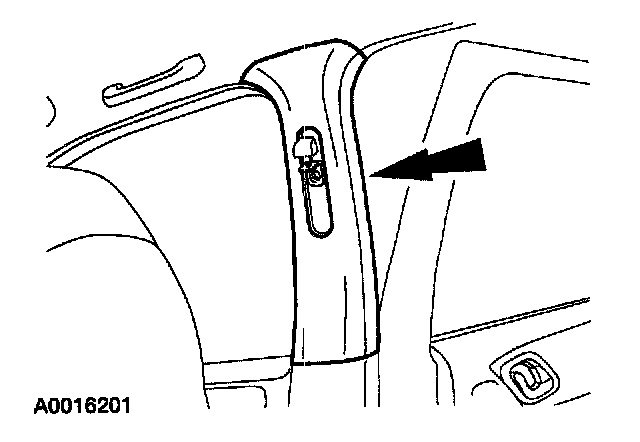

4. Remove the upper B-pillar trim panel.

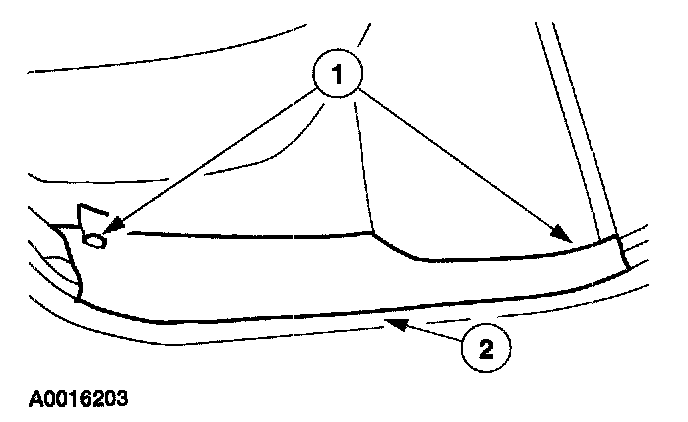

5. Remove the front door scuff plate trim panel.
1. Remove the pin-type retainers.
2. Remove the front door scuff plate trim panel.

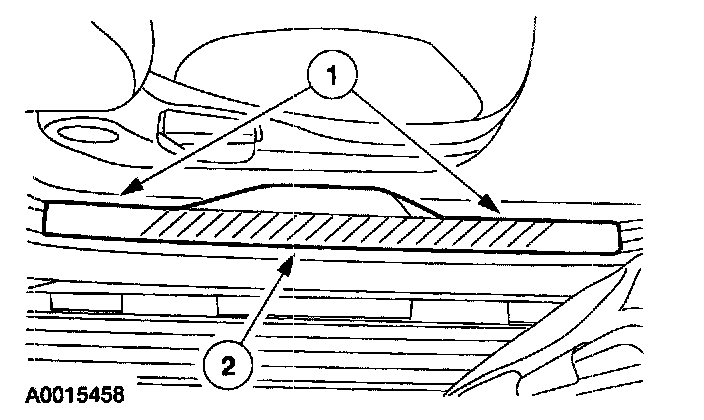

6. Remove the rear door scuff plate trim panel.
1. Remove the pin-type retainers.
2. Remove the rear door scuff plate trim panel.

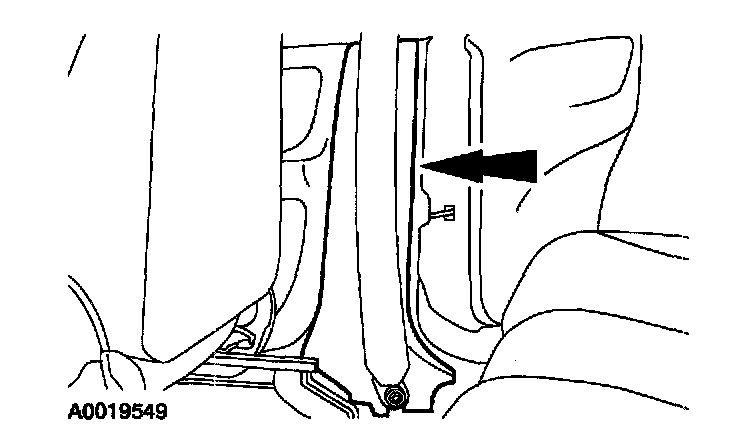

7. Remove the lower B-pillar trim panel.
8. To install, reverse the removal procedure.
