Headliner: Service and Repair
Removal and InstallationVehicles with overhead console

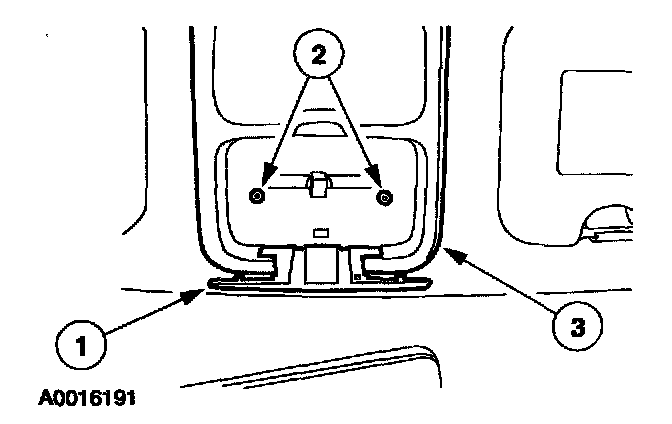

1. Remove the overhead console.
1. Open the front console door.
2. Remove the screws.
3. Remove the overhead console.
1. If equipped, disconnect the electrical connector.

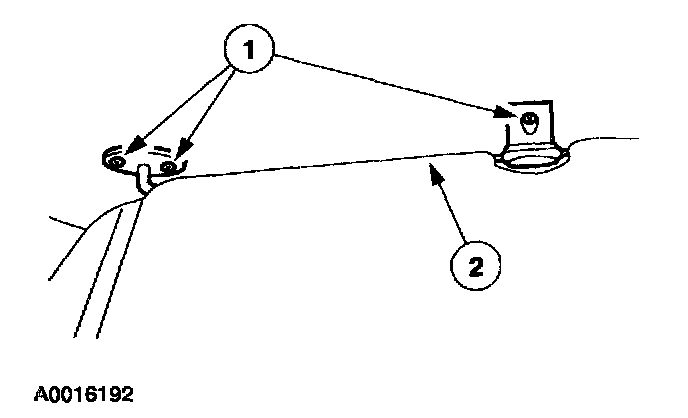

2. Remove the two sun visors and two clips.
1. Remove the six screws.
2. Remove the two sun visors and two clips.

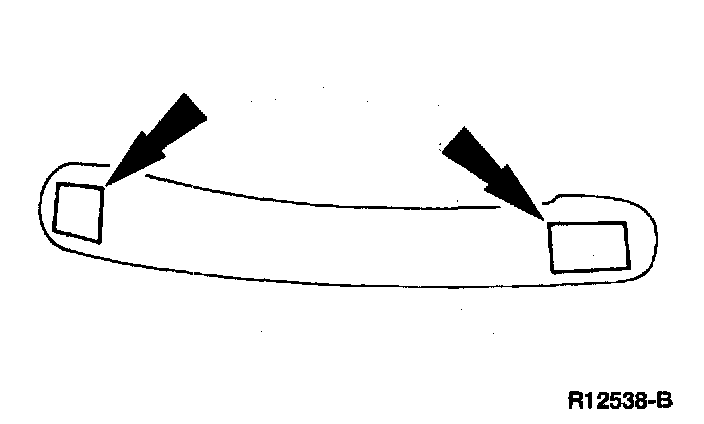

3. Remove the eight passenger assist handle covers.

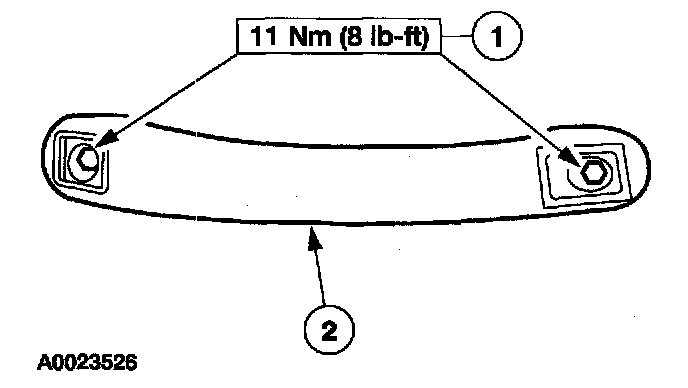

4. Remove the four passenger assist handles.
1. Remove the eight bolts.
2. Remove the four passenger assist handles.

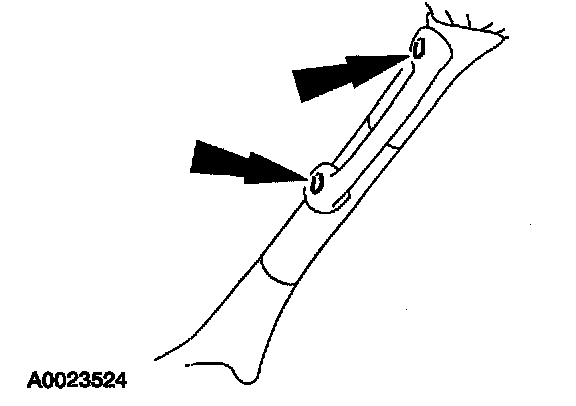

5. Open the four A-pillar passenger assist handle covers.

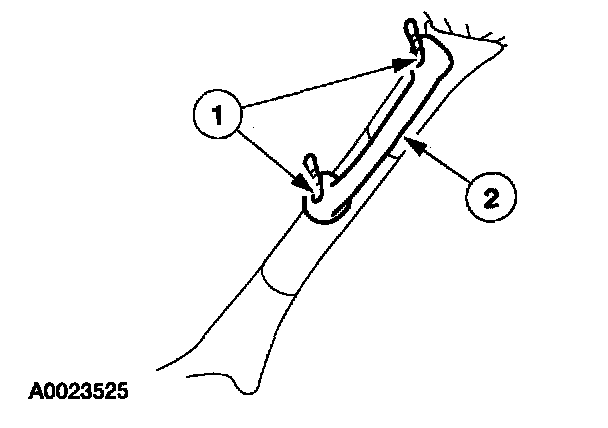

6. Remove the two A-pillar passenger assist handles.
1. Remove the four bolts.
2. Remove the two A-pillar passenger assist handles.

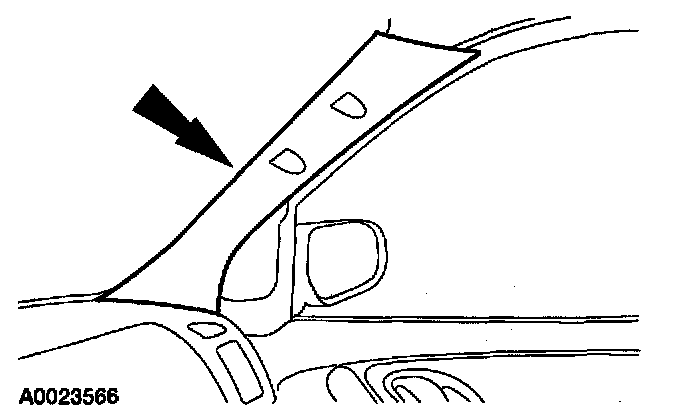

7. Remove the two windshield side garnish mouldings.
8. If equipped, remove the roof opening panel moulding.

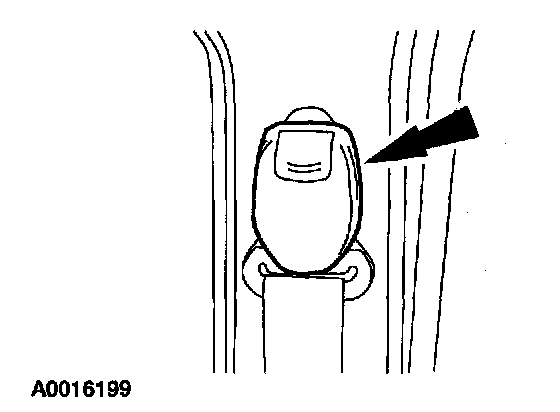

9. Remove the safety belt D-ring covers.

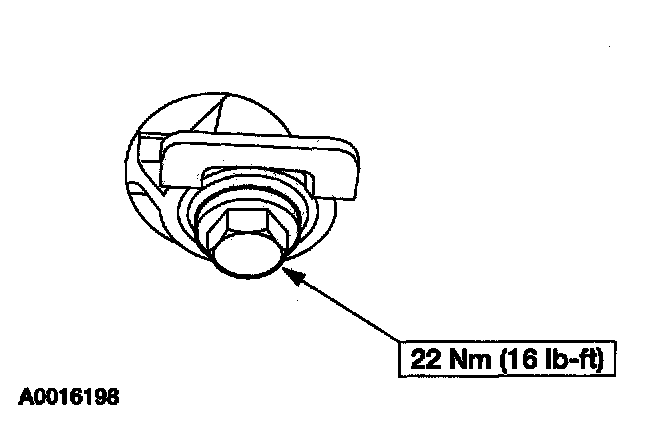

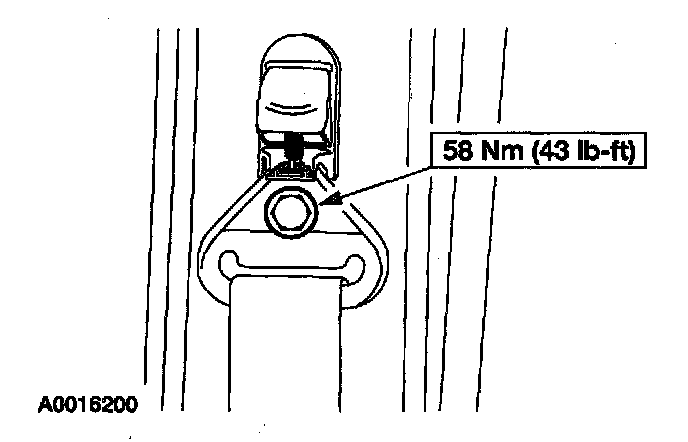

10. Remove the safety belt D-ring bolts.
11. Position the front and rear door weatherstrips aside.

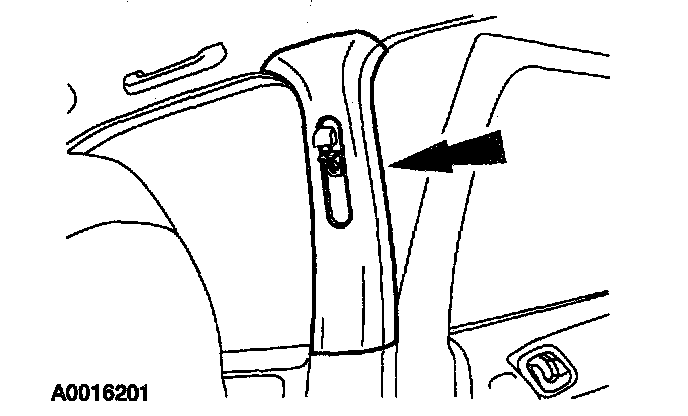

12. Remove the upper B-pillar trim panels.
- Attached with clips.

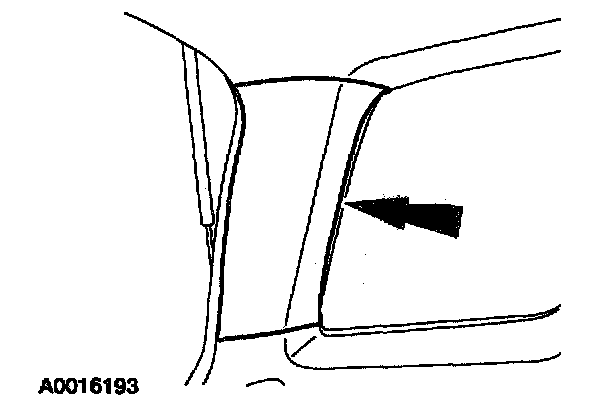

13. Remove the two C-pillar trim panels.
14. Remove the two D-pillar trim panels.
- Attached with clips.

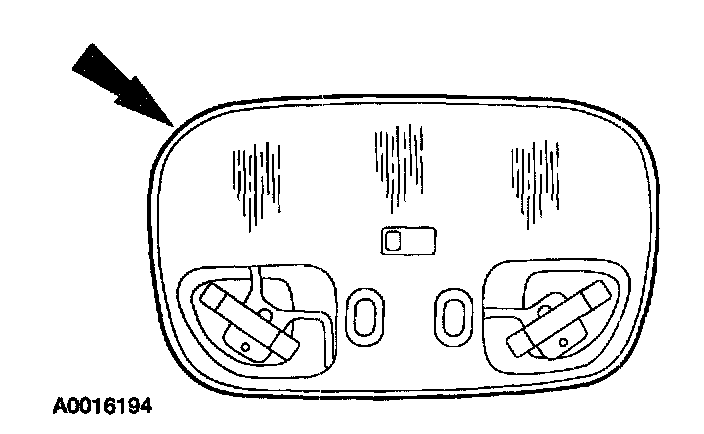

15. Remove the front interior lamp lens by prying with a screwdriver.

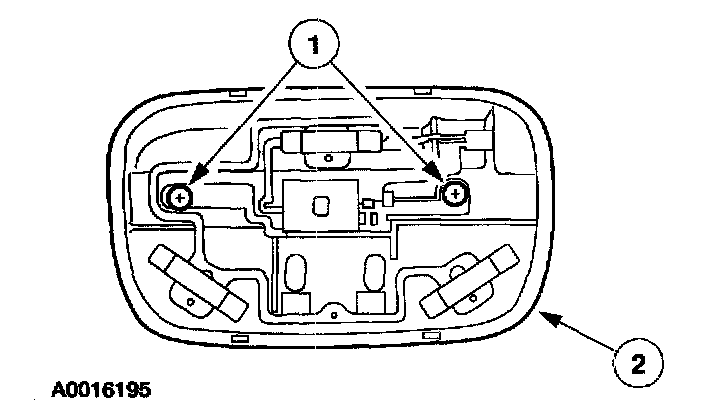

16. Remove the front interior lamp.
1. Remove the screws.
2. Remove the front interior lamp.
1. Disconnect the electrical connector.

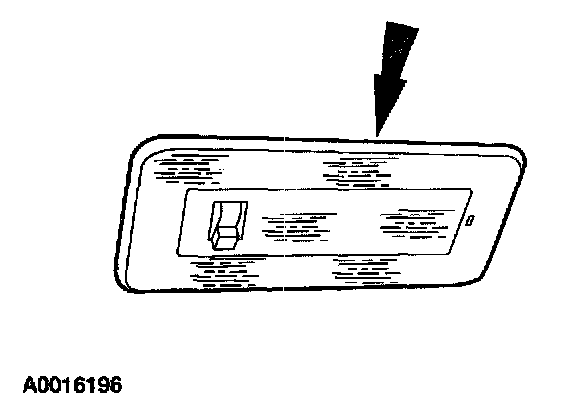

17. Remove the rear interior lamp by prying with a screwdriver.
1. Disconnect the electrical connector.

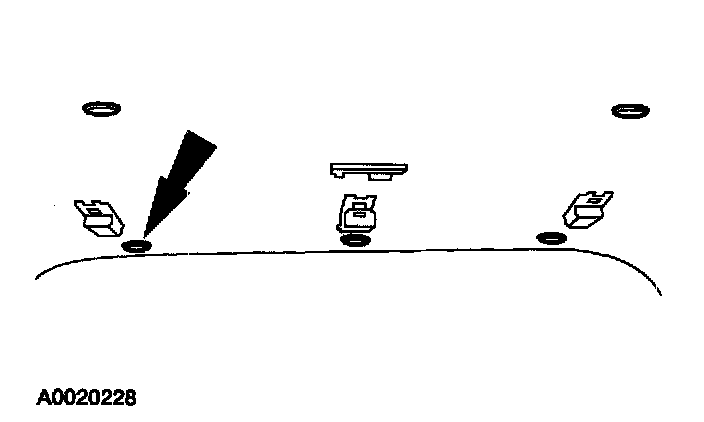

18. Remove the five pin-type retainers.

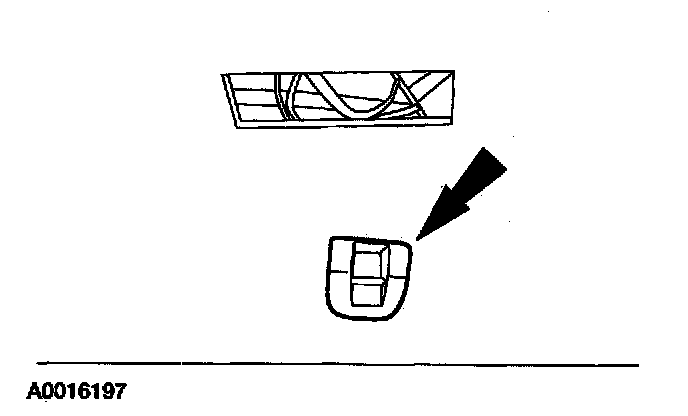

19. If equipped, remove the three child seat tether anchor covers.
20. If equipped, remove the three bolts and the child seat tether anchors.
21. Remove the headliner.
22. To install, reverse the removal procedure.
