Floor Console - Low Series

Removal and Installation

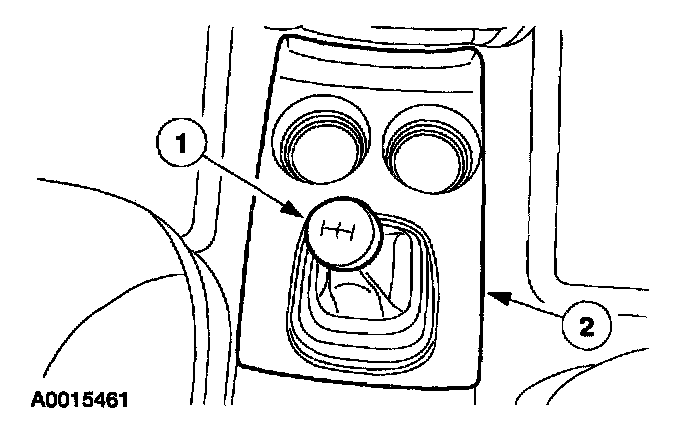

1. Remove the floor console front finish panel.
1. If equipped, remove the manual transaxle shifter knob by turning counterclockwise.
2. Remove the floor console front finish panel.




2. Remove the floor console rear finish panel.
1. Apply the parking brake.
2. Remove the floor console rear finish panel.

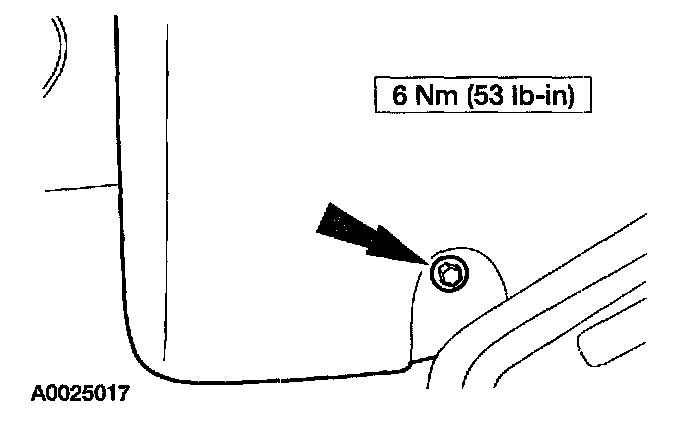

3. Remove the floor console front bolts.




4. Remove the floor console.

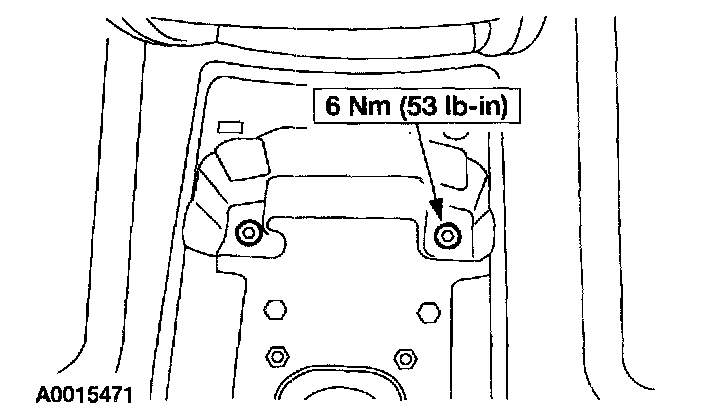

1. Remove the rear two bolts.
2. Remove the floor console.

5. To install, reverse the removal procedure.
