U2017

Pinpoint Test 28: LFC 44/DTC U2017 - Driver-Side Crash Sensor Communications Fault

Normal Operation
The driver-side crash sensor monitors the severity of a crash event. If the crash event is severe enough, the sensor will signal the restraints control module (RCM) to deploy the driver-side air bag.

The RCM monitors the two-wire current loop to the driver-side crash sensor for a signal that is out of the expected range. If the RCM detects an out-of-range signal from the driver-side crash sensor, indicating a sensor communication fault, it will store diagnostic trouble code (DTC) U2017 and flash a lamp fault code (LFC) 44 (or a higher priority code if one exists) on the air bag indicator.

Possible Causes
A driver-side crash sensor communication fault condition can be caused by:
- damaged wiring on circuit (W/LG).
- damaged wiring on circuit (BR/LG).
- damaged driver-side crash sensor.

WARNING: The air bag diagnostic tool is for restraint system repair only. Remove from vehicle prior to road use. Failure to remove could result in injury and possible violation of vehicle safety standards.

NOTE: If a seat equipped with a seat-mounted side air bag and/or a safety belt pretensioner (if equipped) system is being serviced, the air bag system must be deactivated using the appropriate deactivation procedure in this section.

NOTE: Restraint system diagnostic tools MUST be installed under the seats in the side air bag and safety belt pretensioner to floor connectors.

NOTE: Diagnostics or repairs are not to be performed on a side air bag system and/or a safety belt preten- sioner (if equipped) system with the seats in the vehicle. Prior to attempting to diagnose/repair the side air bag system and/or safety belt pretensioner (if equipped) system the seats must be removed from the vehicle and the restraint system diagnostic tools must be installed in the side air bag and the safety belt pretensioner (if equipped) connectors at the floor connectors. The restraint system diagnostic tools must be removed prior to operating the vehicle over the road.

NOTE: Diagnostics may be performed on seat systems other than the side air bag or the safety belt pre-tensioner (if equipped) system (lumbar, climate controlled, heated, power seat track) with the seat installed in the vehicle as long as the restraint system diagnostic tools are installed under the seats in the side air bag and safety belt pretensioner to floor connectors.

NOTE: After diagnosing/repairing a seat system, the restraint system diagnostic tools must be removed before operating the vehicle over the road.

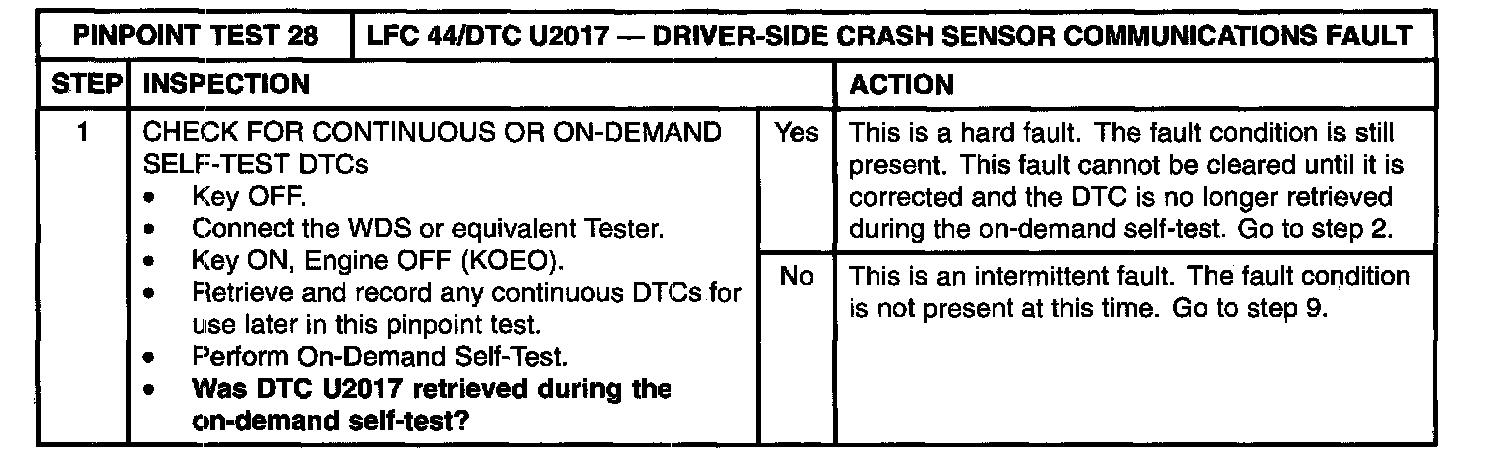

Step 1:

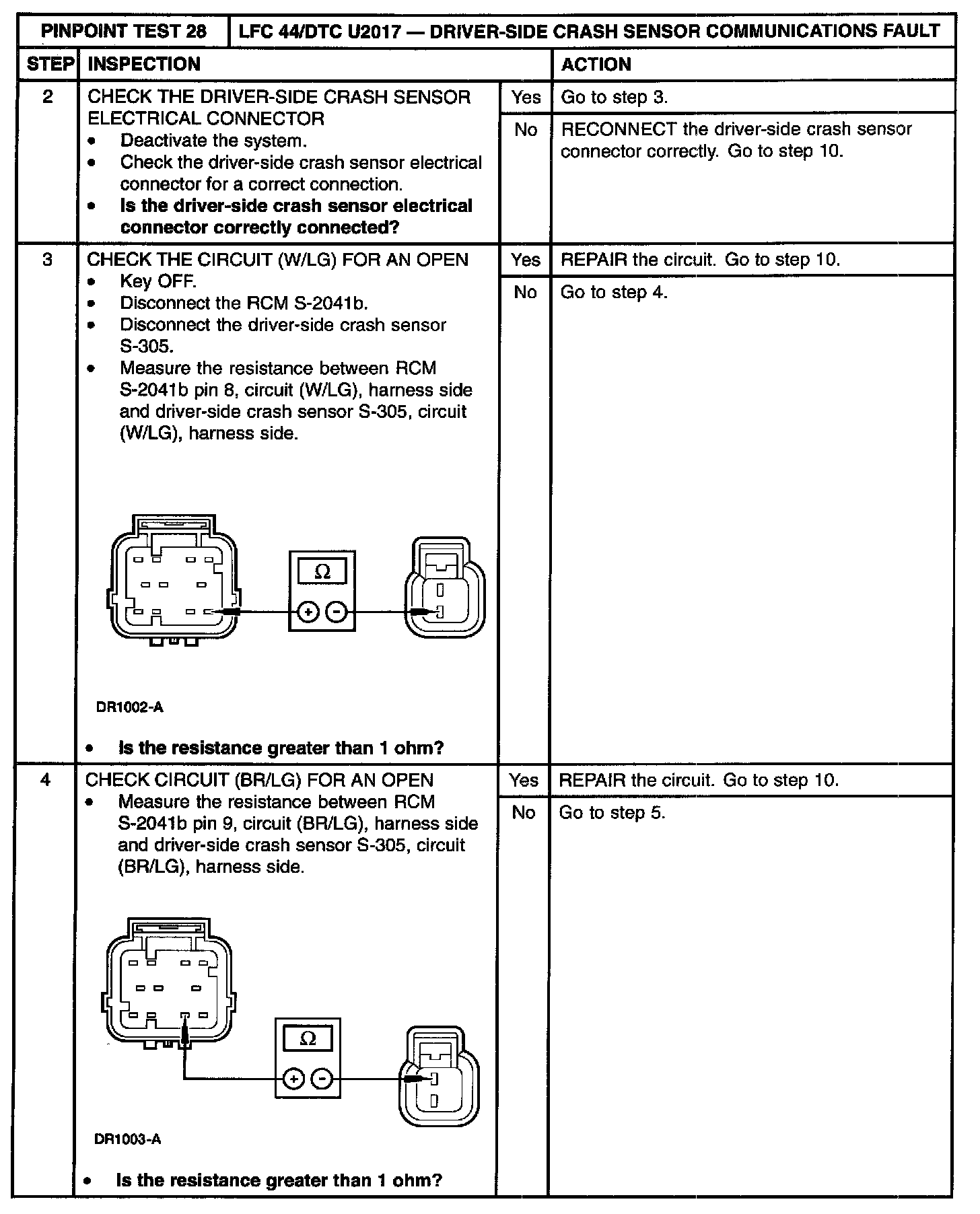

Step 2 - 4:

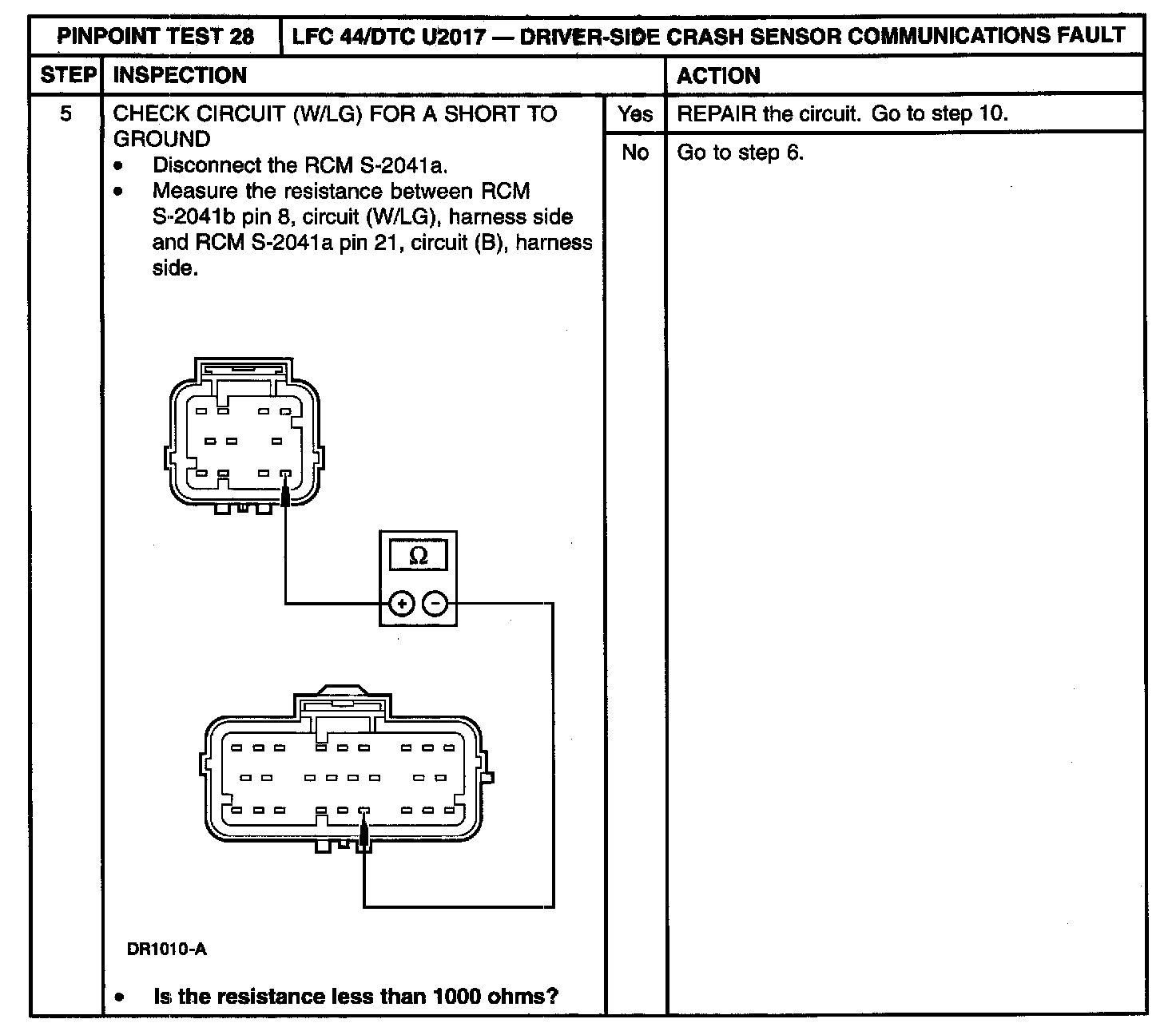

Step 5:

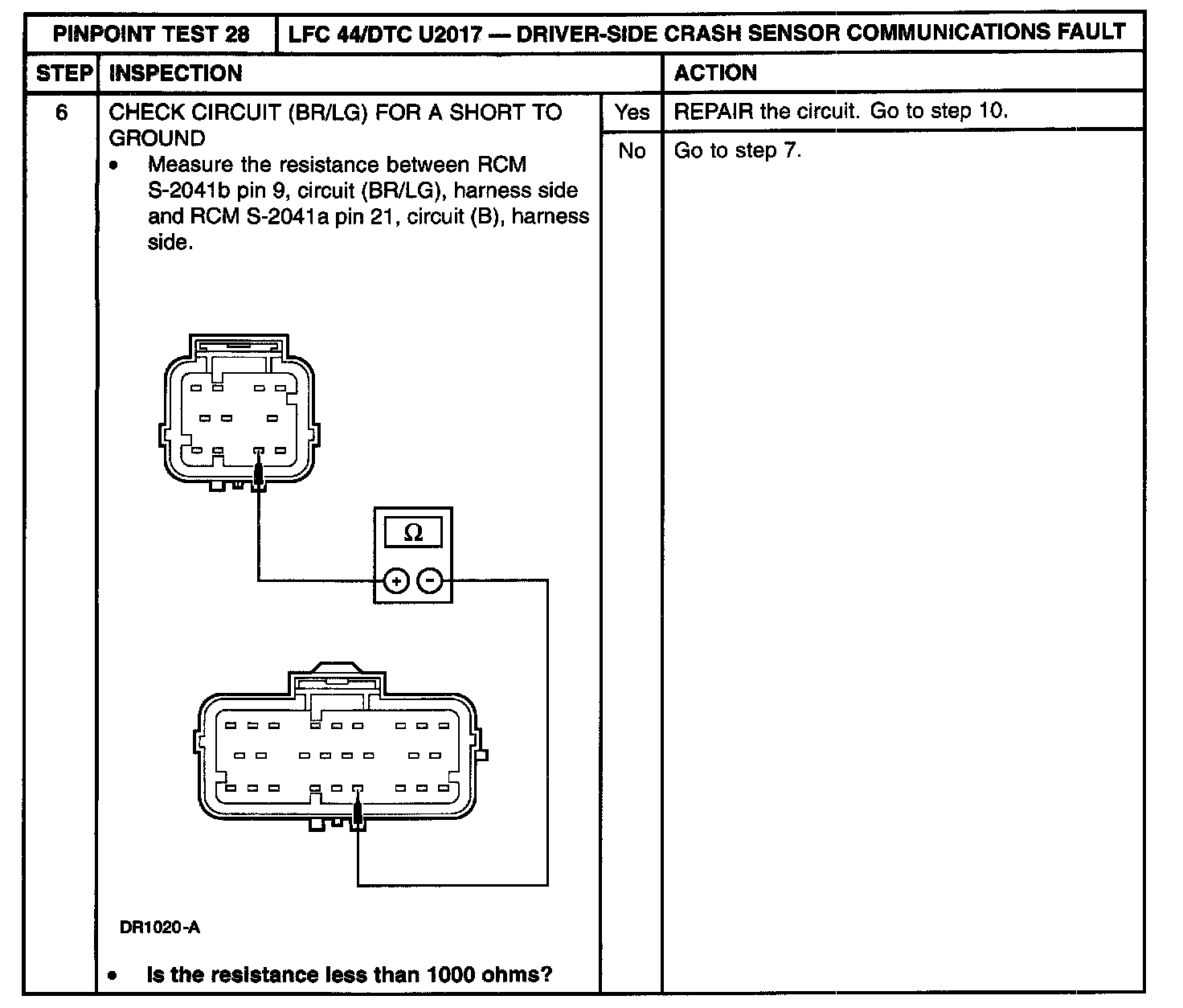

Step 6:

Step 7:

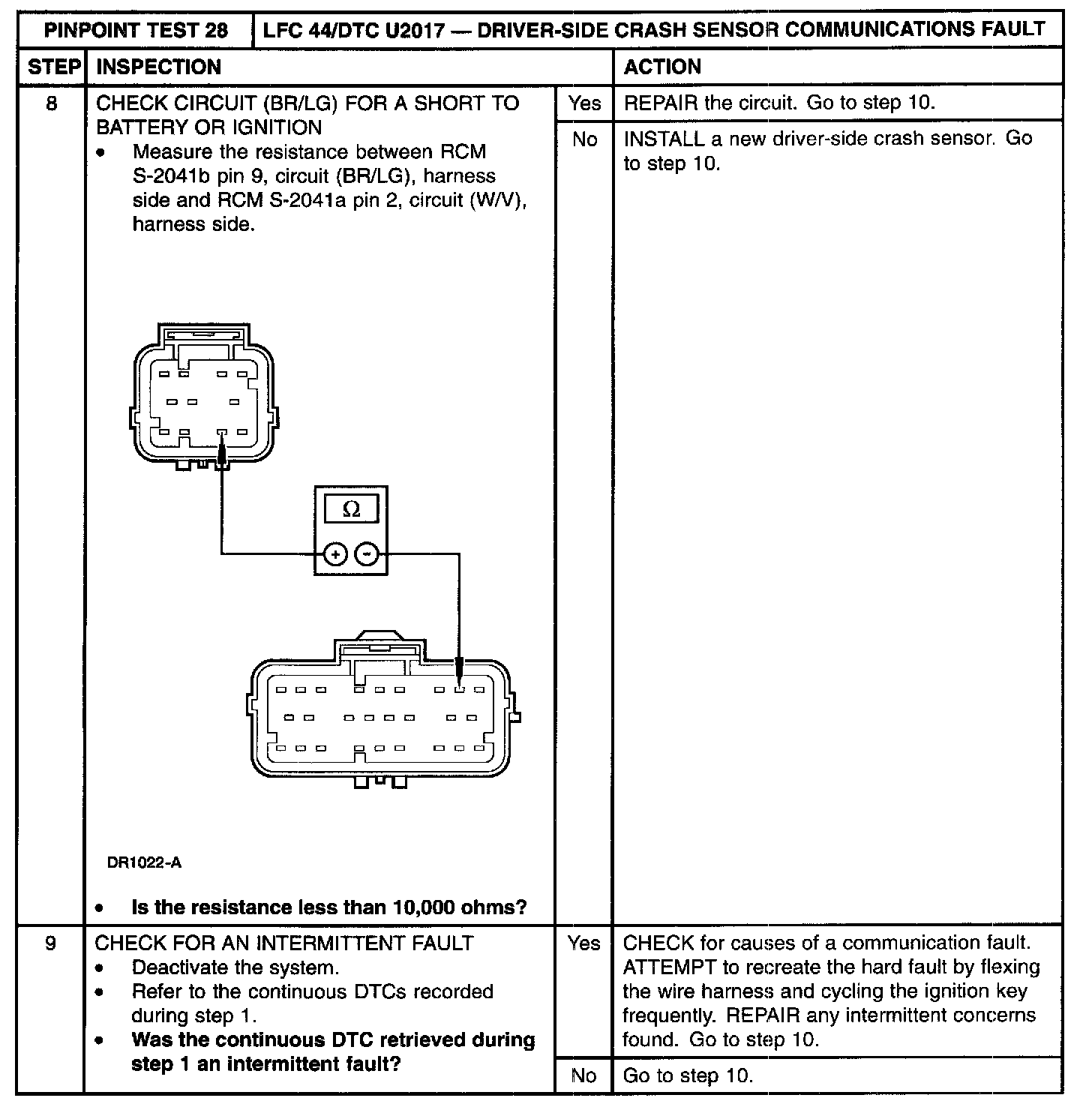

Step 8 - 9:

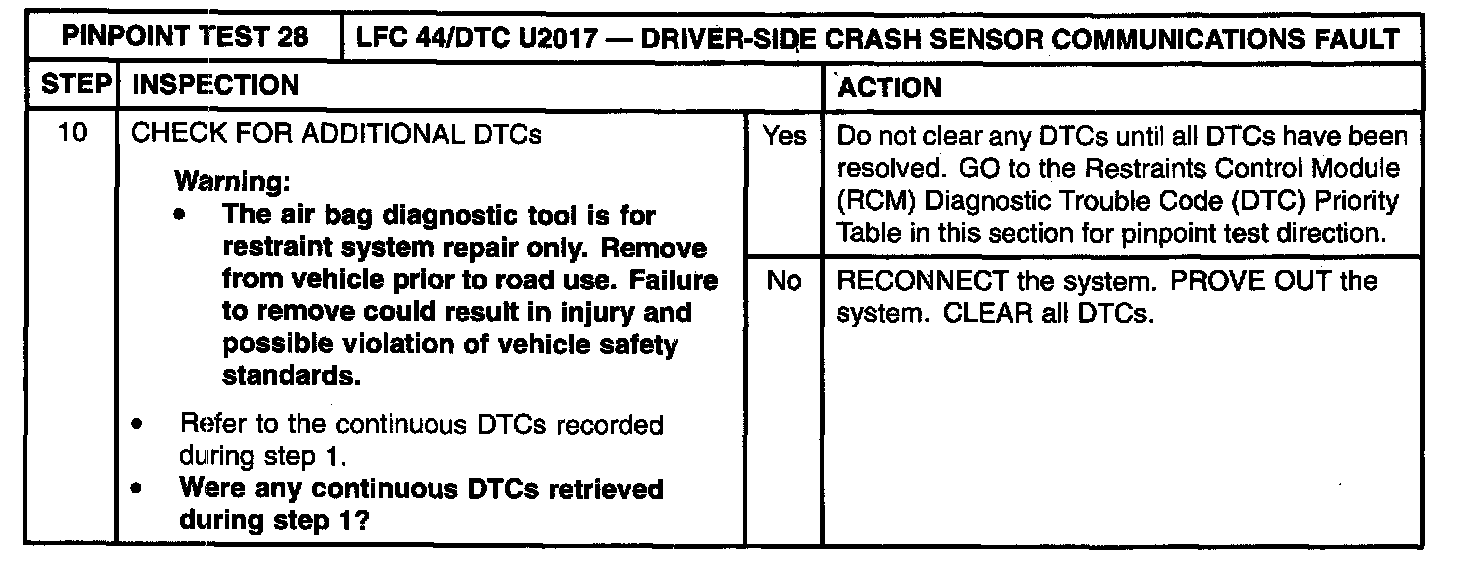

Step 10:

TEST DESCRIPTION
