Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Mazda Truck
>>
2002
>>
Tribute DX 2WD L4-2.0L
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
P Code Charts
>>
P1780
>>
Transmission Control System
Transmission Control System

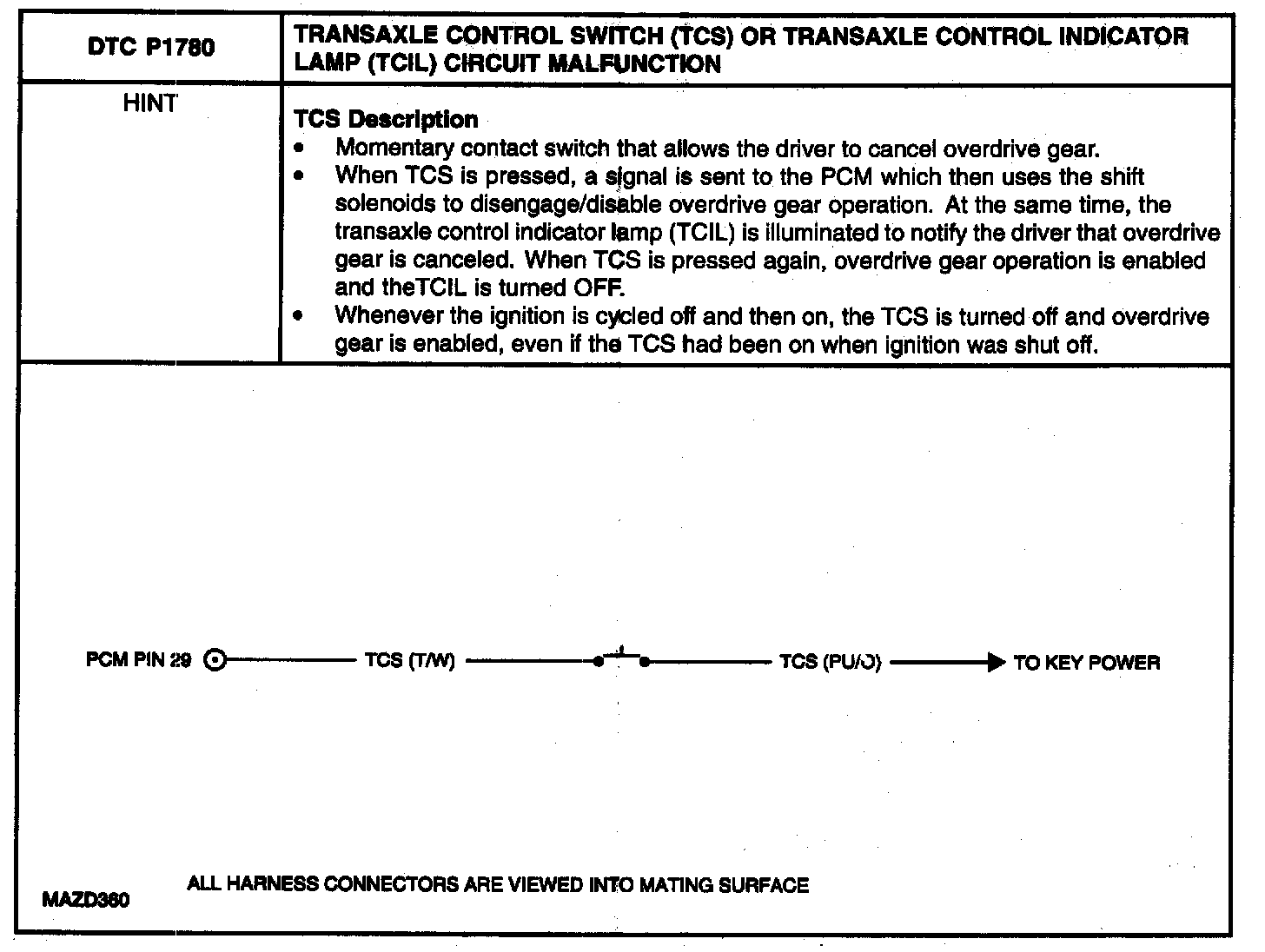

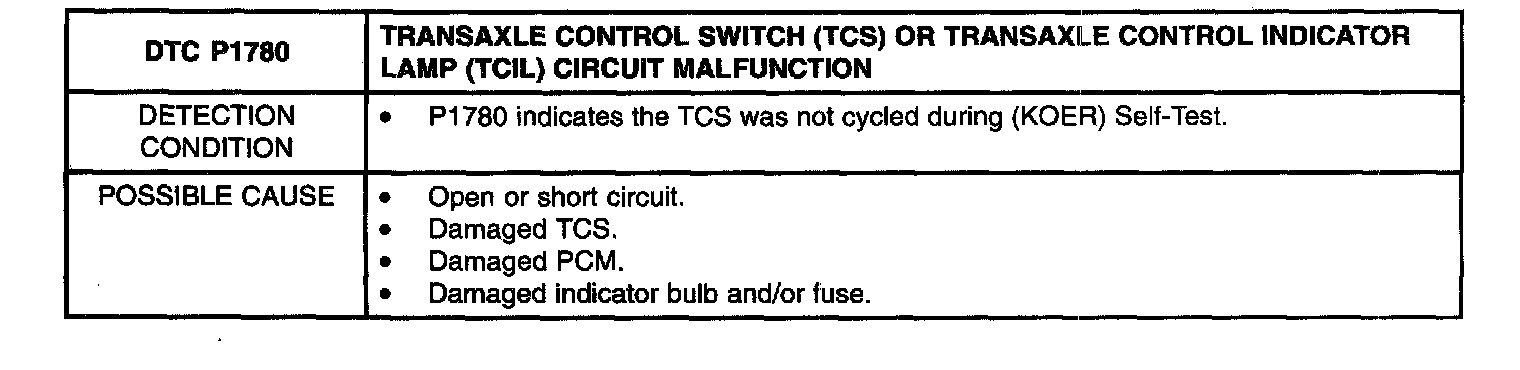

TRANSAXLE CONTROL SWITCH (TCS) OR TRANSAXLE CONTROL INDICATOR LAMP (TCIL)
1 of 4
2 of 4
3 of 4
4 of 4
