B1996

Pinpoint Test 22: LFC 37/DTC B1996 - Passenger-Side Air Bag Circuit Shorted to Battery or Ignition

Normal Operation
The restraints control module (RCM) monitors the passenger-side air bag circuits at RCM S-2041a and S-2041b, pins 5 and 6 for a short to battery or ignition. If battery or ignition voltage is detected, the RCM will store diagnostic trouble code (DTC) B1996 and flash lamp fault code (LFC) 37.

Possible Causes
A passenger-side air bag circuit short to battery or ignition can be caused by:
- battery or ignition voltage on circuit (W/Y).
- battery or ignition voltage on circuit (BR/Y).
- battery or ignition voltage short in the passenger-side air bag module.
- an RCM internal concern.

WARNING: The air bag diagnostic tool is for restraint system repair only. Remove from vehicle prior to road use. Failure to remove could result in injury and possible violation of vehicle safety standards.

NOTE: If a seat equipped with a seat-mounted side air bag and/or a safety belt pretensioner (if equipped) system is being serviced, the air bag system must be deactivated using the appropriate deactivation procedure in this section.

NOTE: Restraint system diagnostic tools MUST be installed under the seats in the side air bag and safety belt pretensioner to floor connectors.

NOTE: Diagnostics or repairs are not to be performed on a side air bag system and/or a safety belt pretensioner (if equipped) system with the seats in the vehicle. Prior to attempting to diagnose/repair the side air bag system and/or safety belt pretensioner (if equipped) system the seats must be removed from the vehicle and the restraint system diagnostic tools must be installed in the side air bag and the safety belt pretensioner (if equipped) connectors at the floor connectors. The restraint system diagnostic tools must be removed prior to operating the vehicle over the road.

NOTE: Diagnostics may be performed on seat systems other than the side air bag or the safety belt pretensioner (if equipped) system (lumbar, climate controlled, heated, power seat track) with the seat installed in the vehicle as long as the restraint system diagnostic tools are installed under the seats in the side air bag and safety belt pretensioner to floor connectors.

NOTE: After diagnosing/repairing a seat system, the restraint system diagnostic tools must be removed before operating the vehicle over the road.

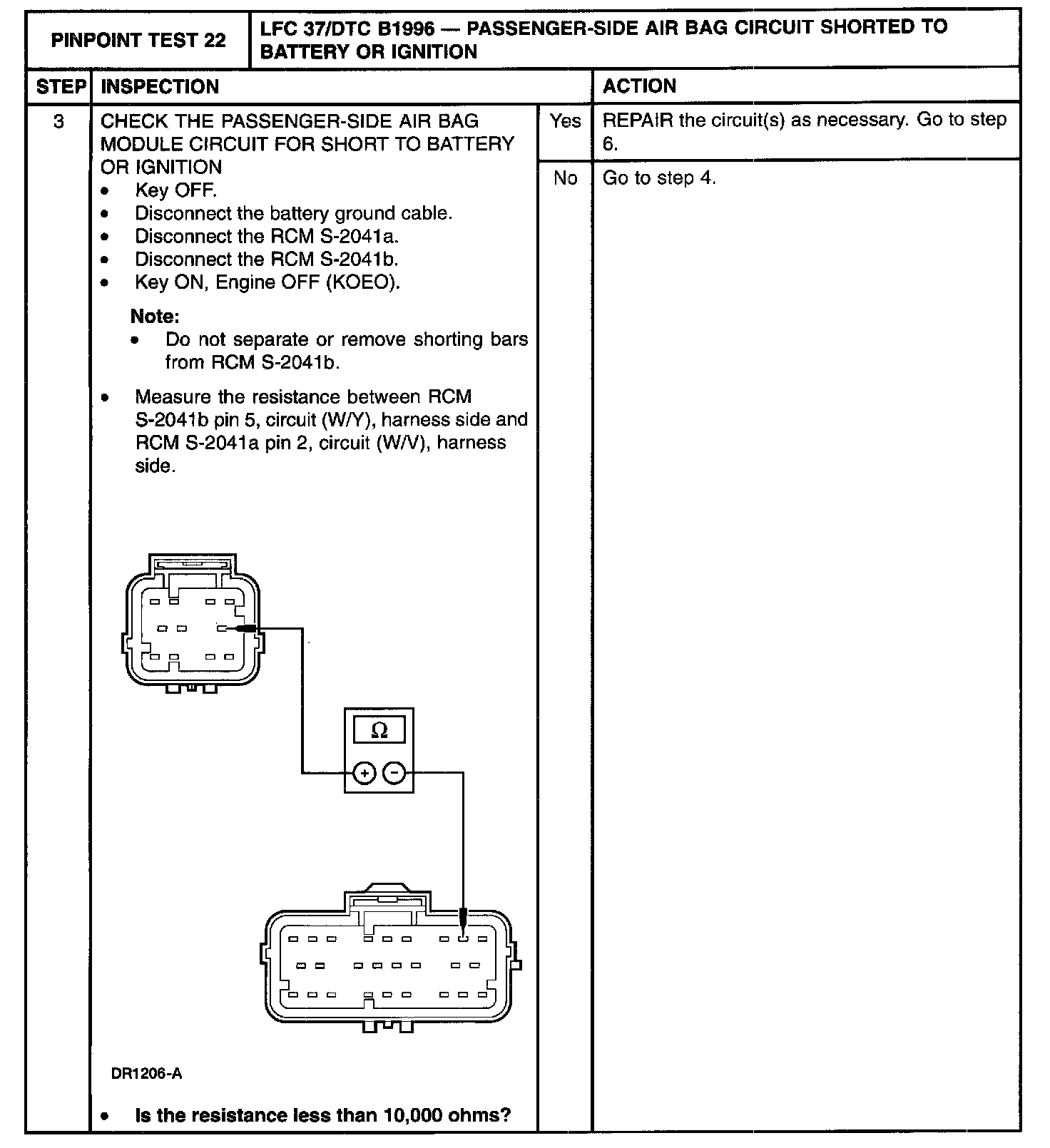

Step 3:

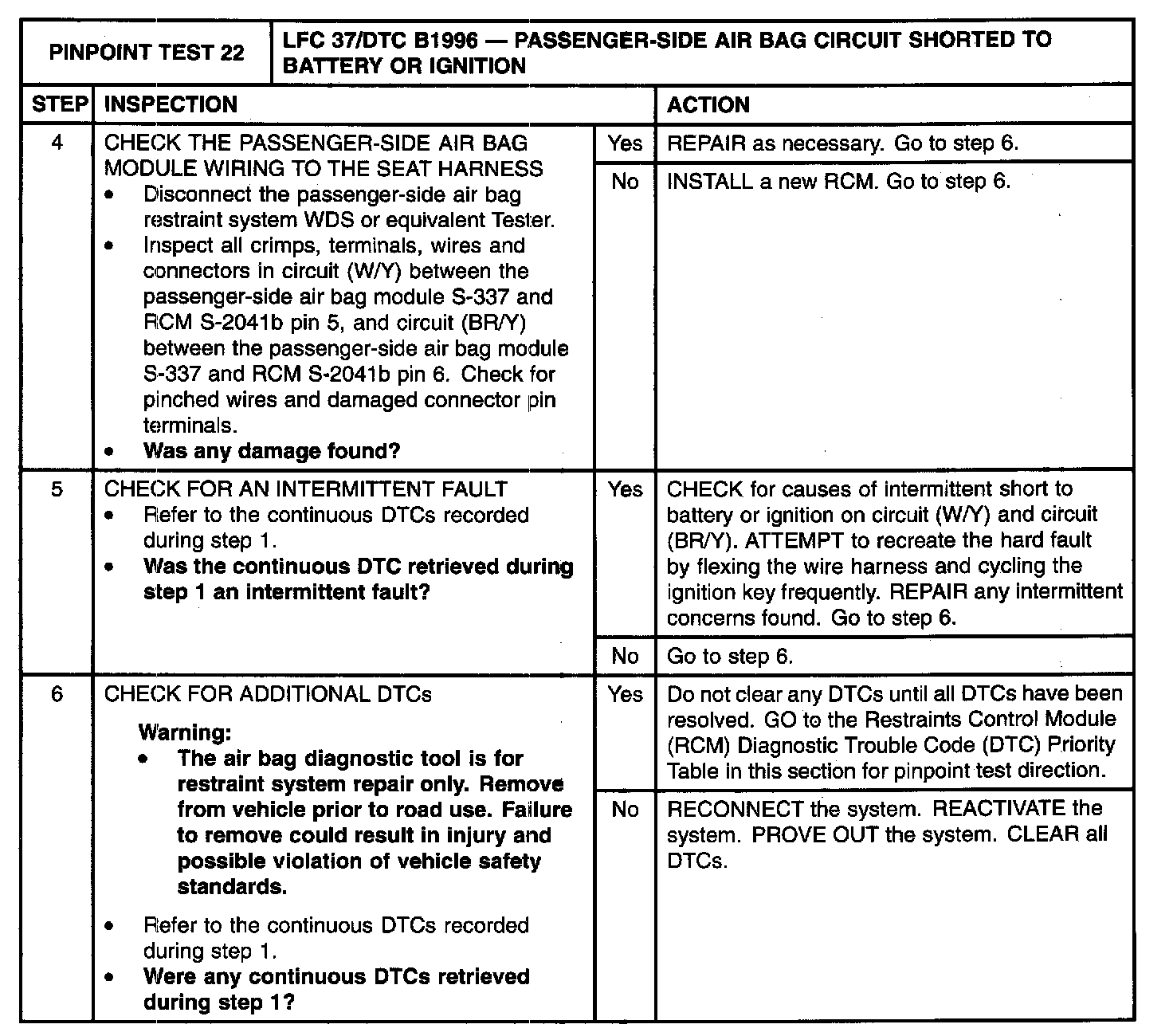

Step 4 - 6:

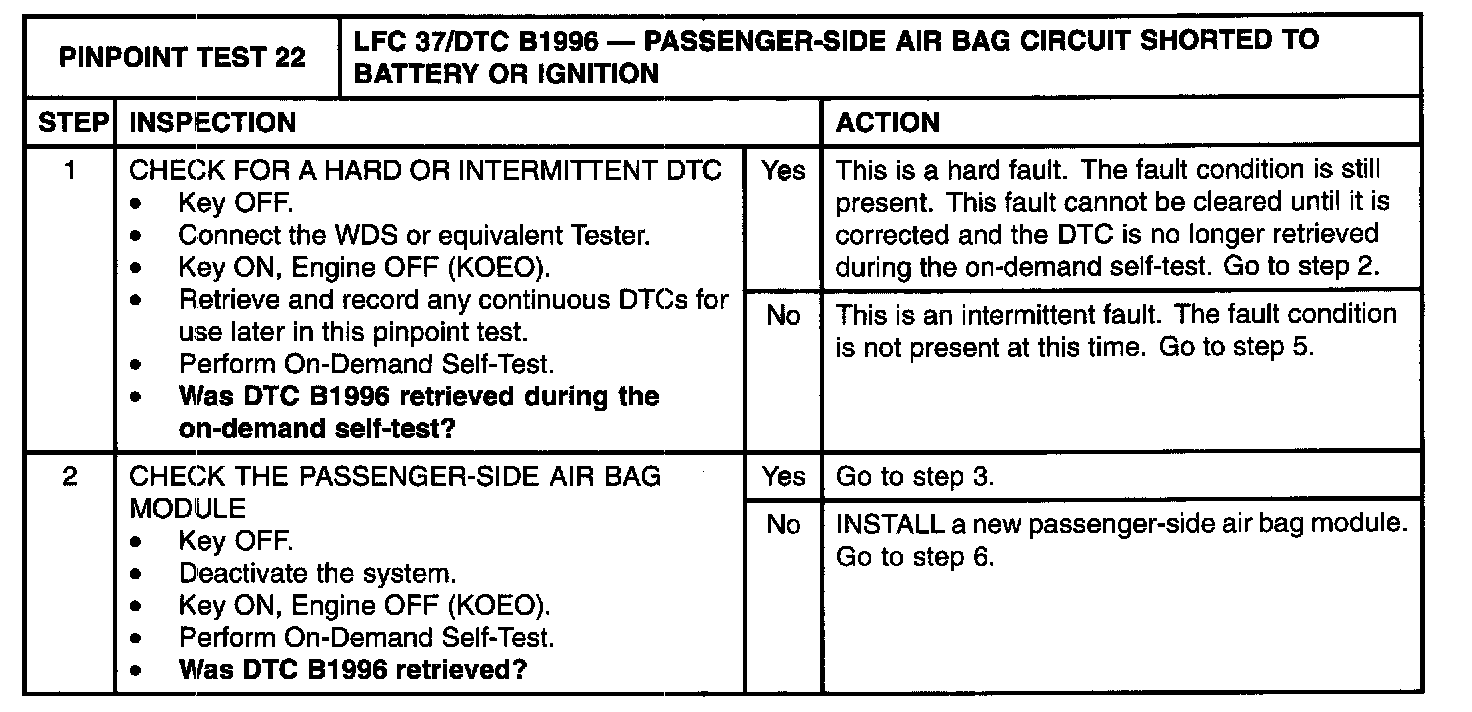

TEST DESCRIPTION
