Pinpoint Test 2: No Communication With the 4WD Control Module
Pinpoint Test 2: No Communication With the 4WD Control Module
PINPOINT TEST 2: NO COMMUNICATION WITH THE 4WD CONTROL MODULE

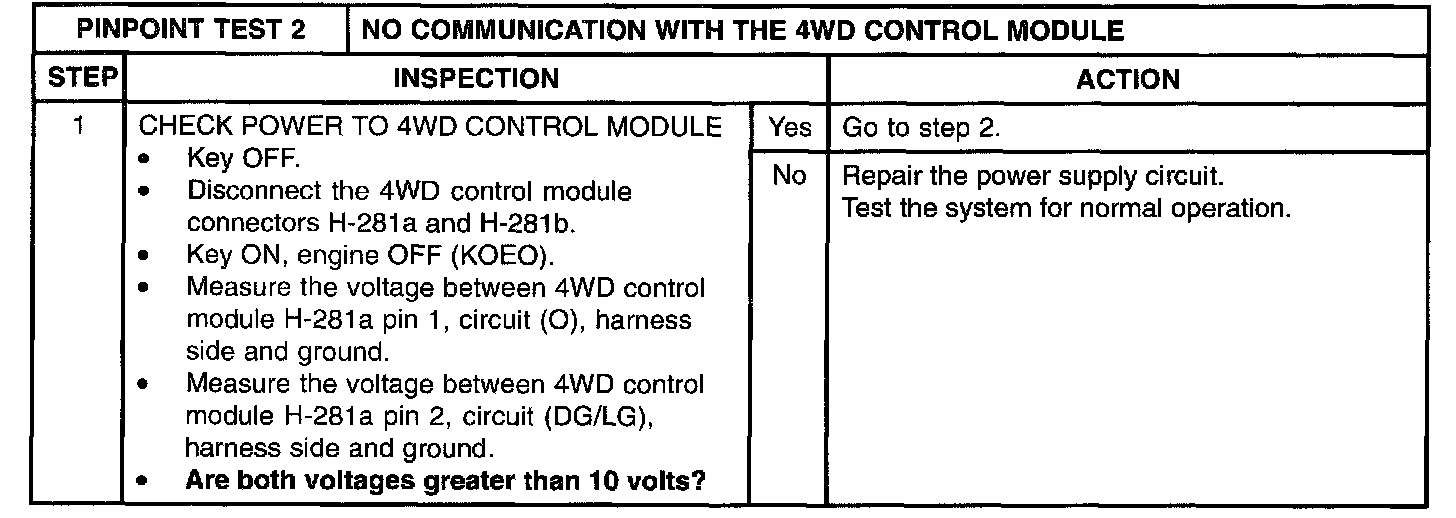

Step 1

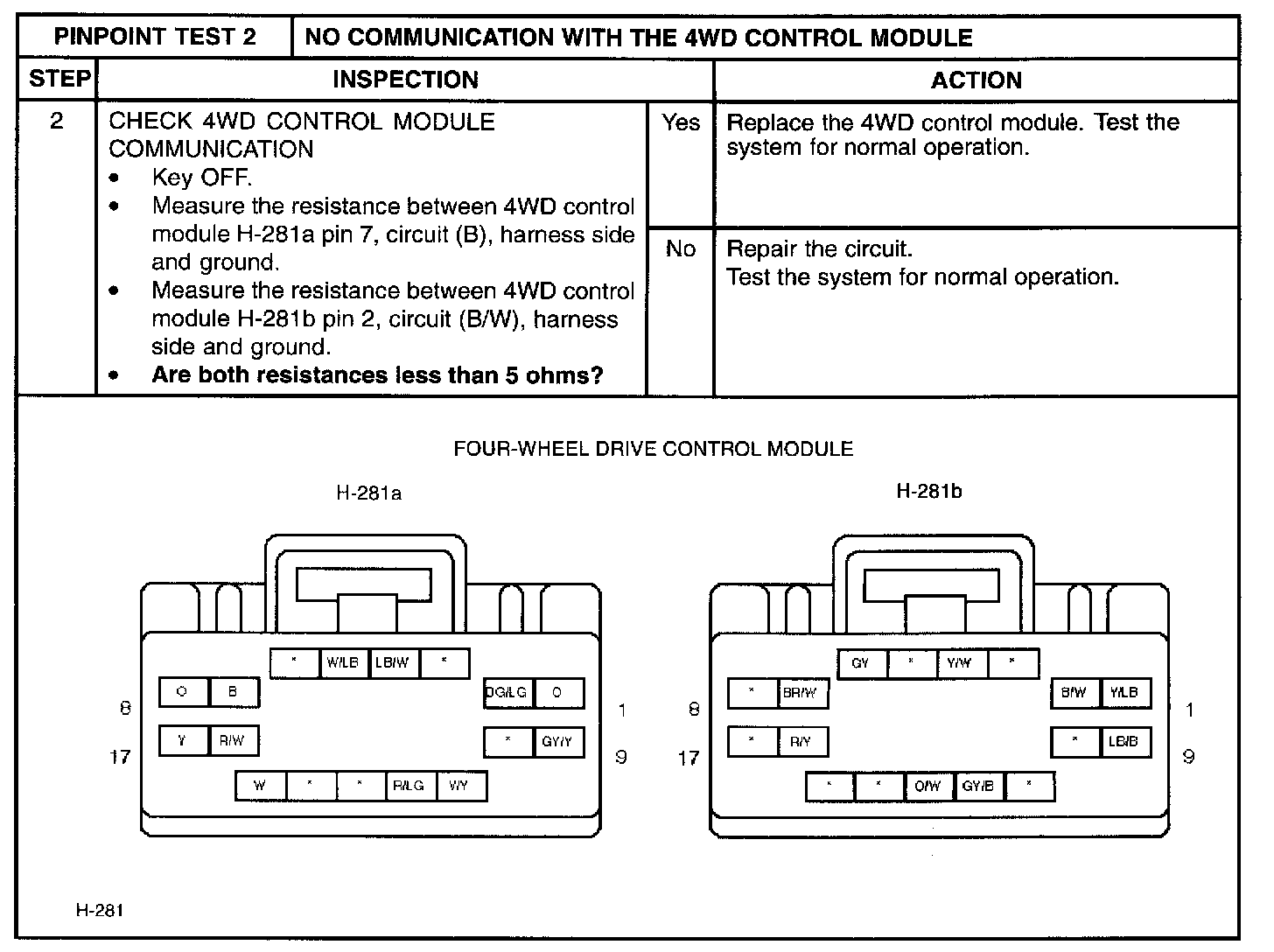

Step 2
