Pinpoint Test 1: Electronic Shift Functional Test
PINPOINT TEST 1: ELECTRONIC SHIFT FUNCTIONAL TEST

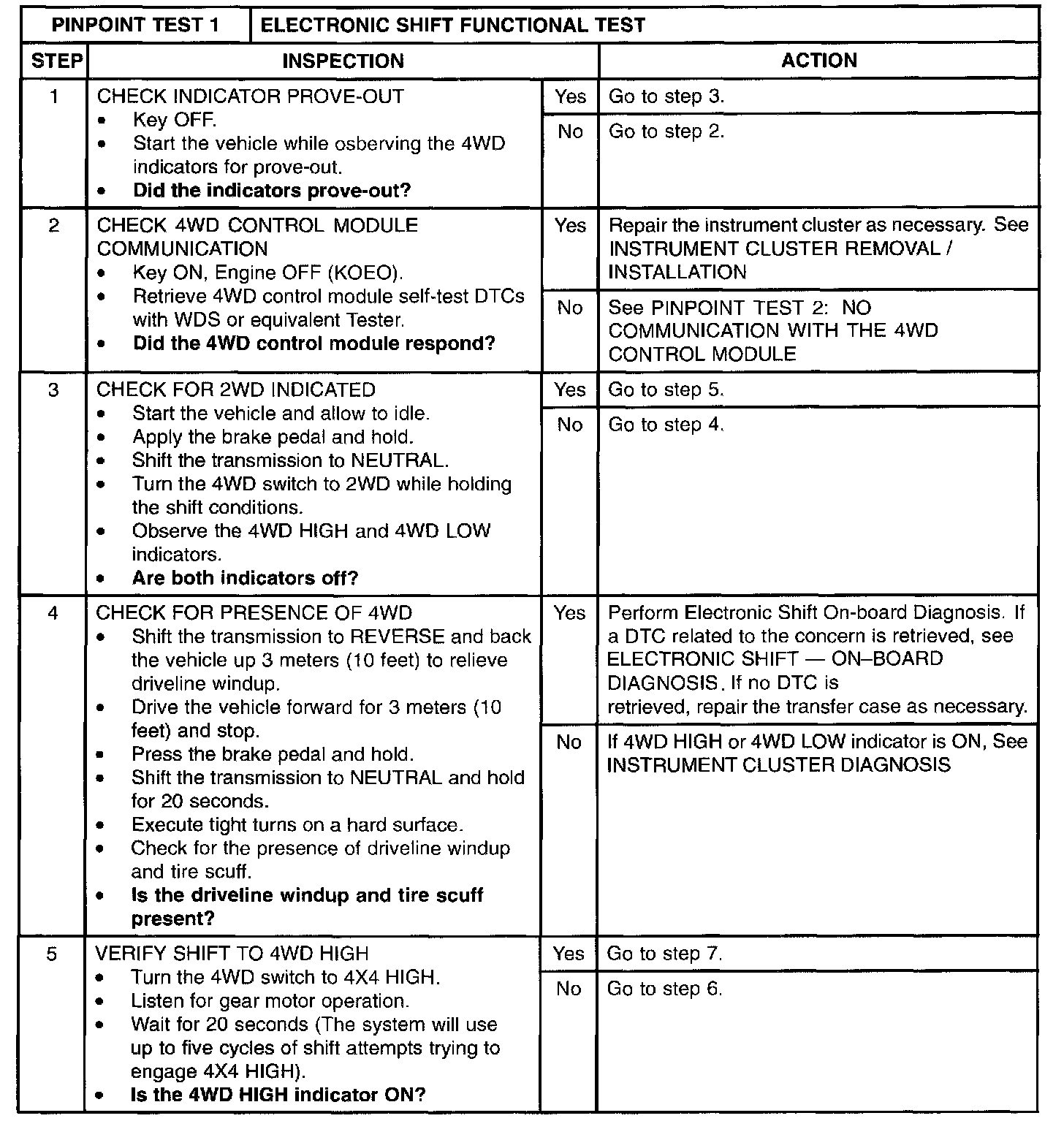

Step 1 - 5

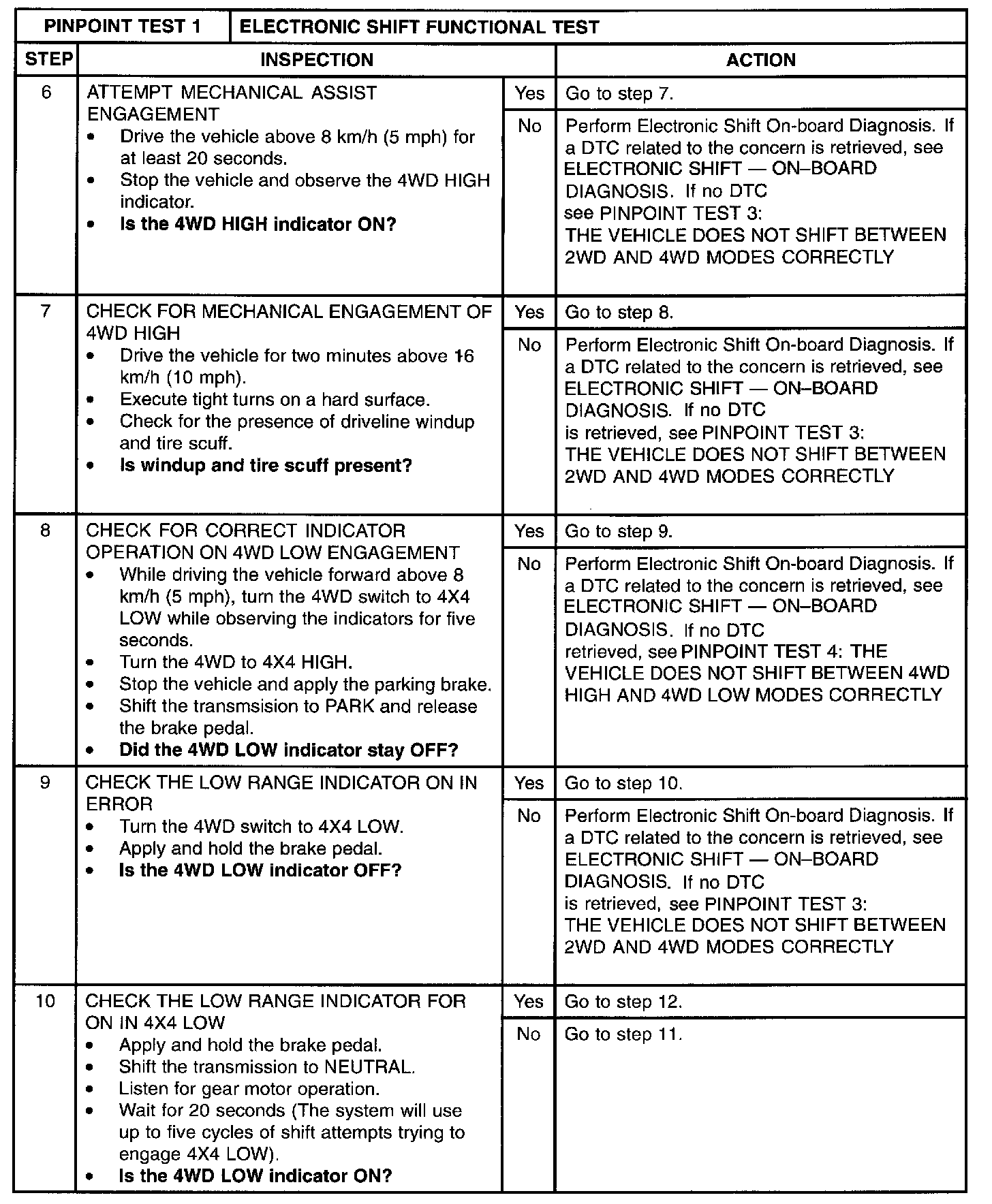

Step 6 - 10

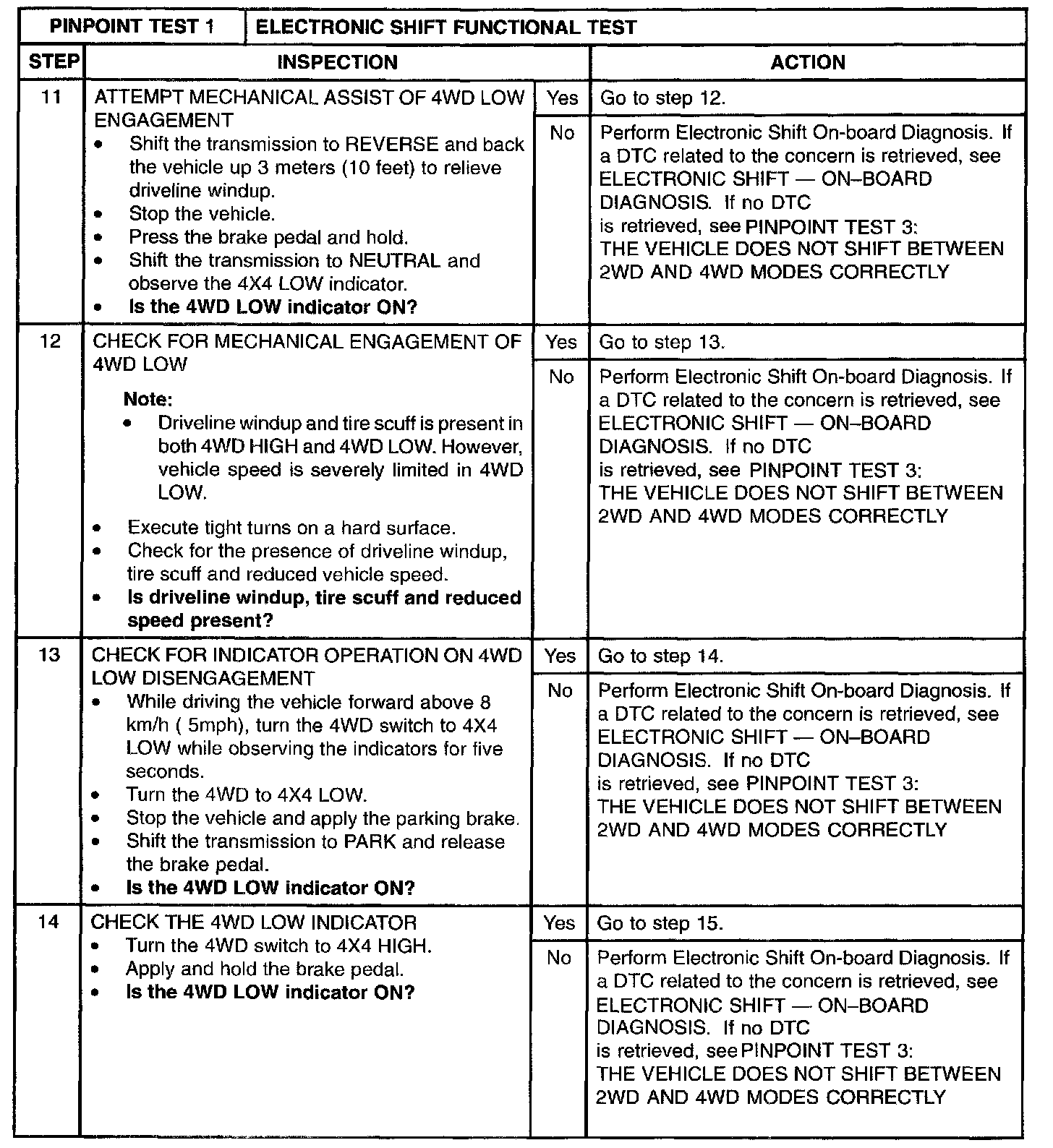

Step 11 - 14

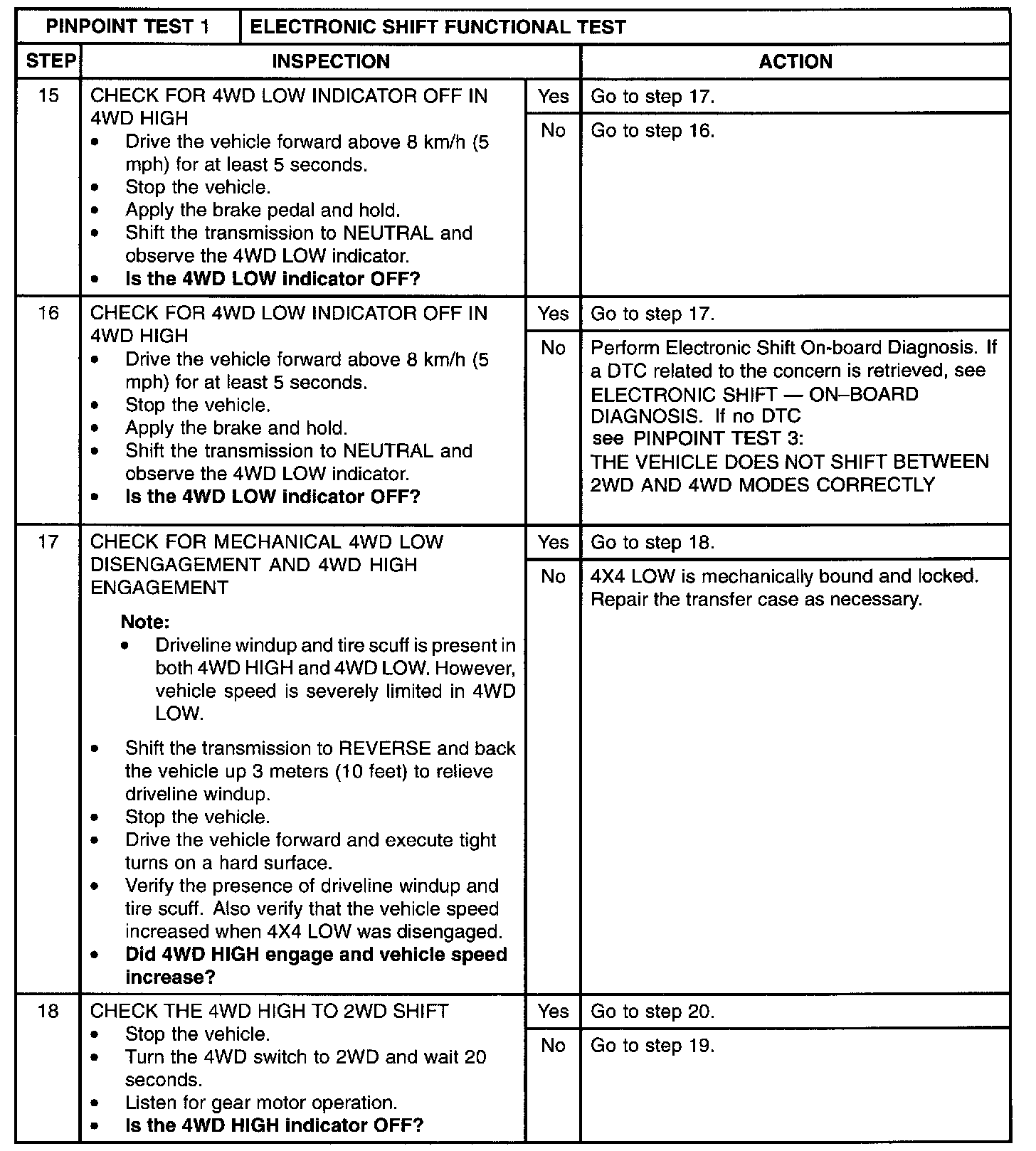

Step 15 - 18
Step 19 - 20
