EGR Tube: Service and Repair

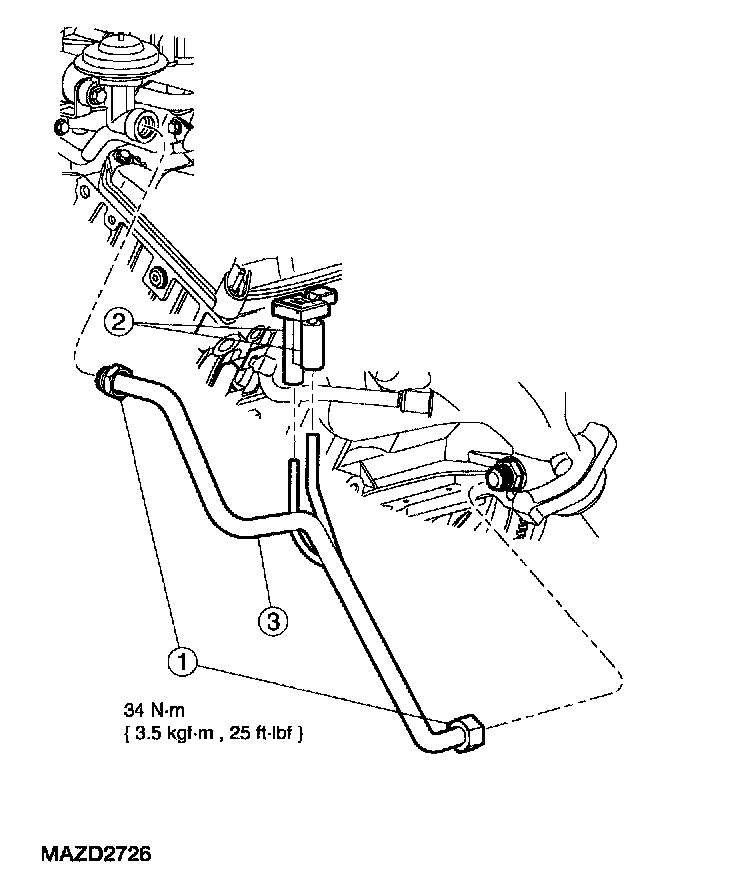

EGR VALVE TUBE REMOVAL/INSTALLATION




1. Remove the exhaust gas recirculation (EGR) valve tube.
1. Disconnect the tube fittings.
2. Disconnect the differential pressure feedback EGR hoses.
3. Remove the tube.

2. Install in reverse order of removal.
