EGR Electronic Vacuum Regulator Solenoid: Service and Repair

EXHAUST GAS RECIRCULATION VACUUM REGULATOR SOLENOID REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

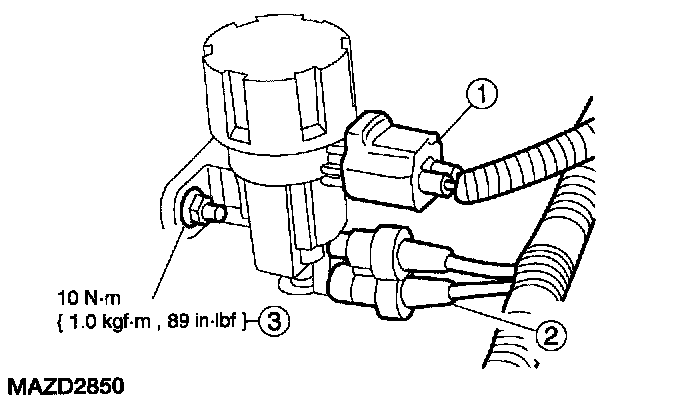

2. Remove the exhaust gas recirculation (EGR) vacuum regulator solenoid.
1. Disconnect the electrical connector.
2. Disconnect the vacuum lines.
3. Remove the nut.

3. To install, reverse the removal procedure.
