Front Wheel Speed Sensor

FRONT SPEED SENSOR (4X4) REMOVAL / INSTALLATION
1. Remove disc plate shield.





2. Disconnect the front speed sensor connector and unclip the front speed sensor wire from the vehicle frame.

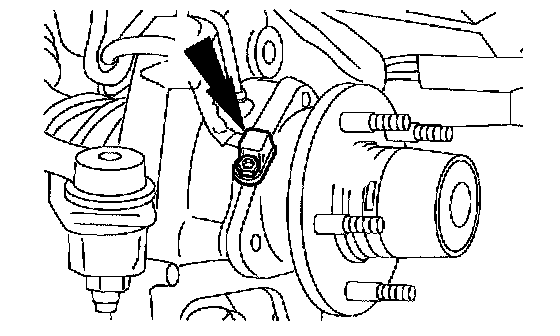

3. Remove the bolt (1) and front speed sensor (2).
4. Install in reverse order of removal.
Tightening torque 7 - 9 Nm (71 - 92 kgf-cm, 63 - 79 inch lbs.)
