Mazda Truck
>>
2002
>>
B3000 SE Regular Cab 4WD V6-3.0L OHV
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
Automatic Transmission/Transaxle

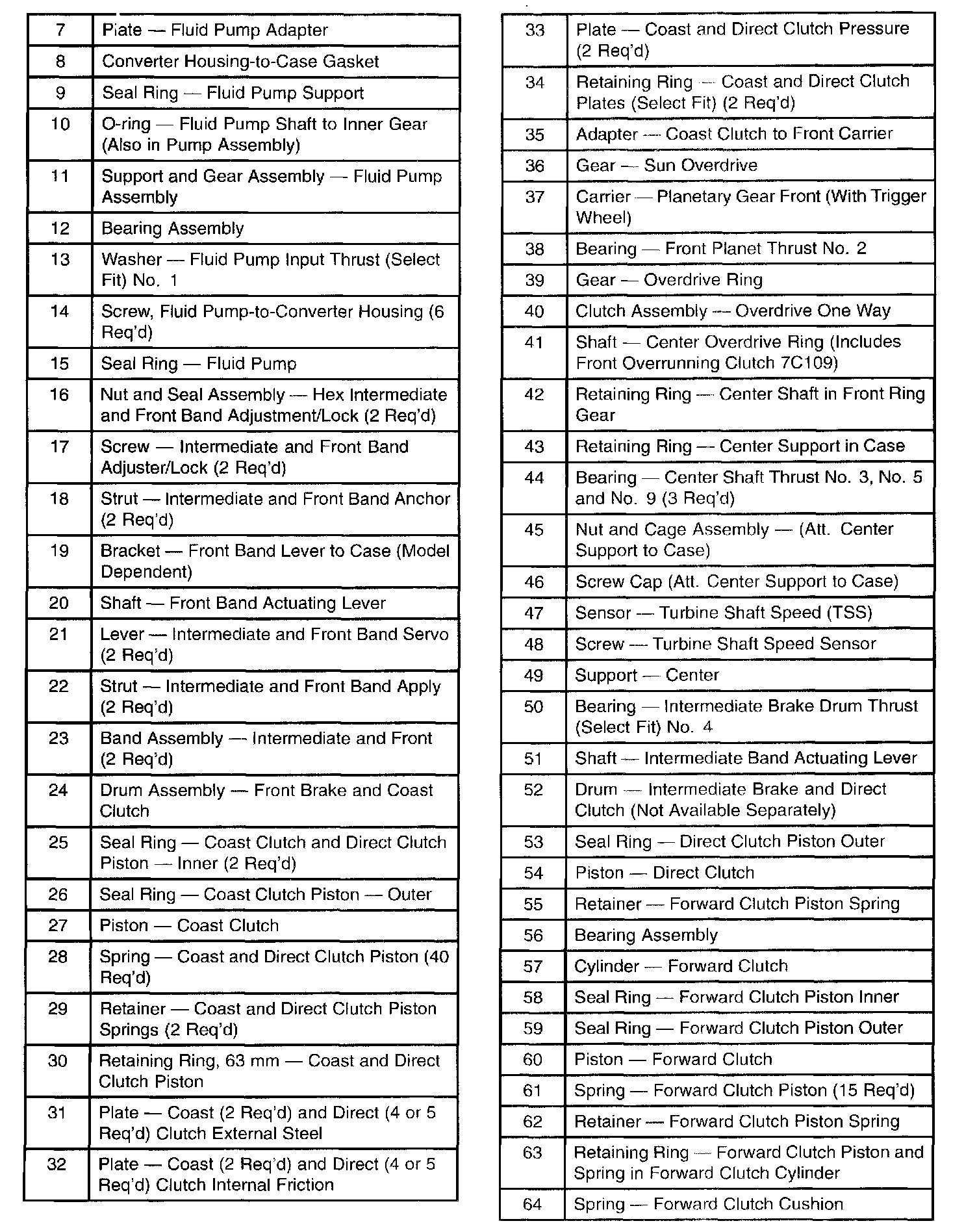

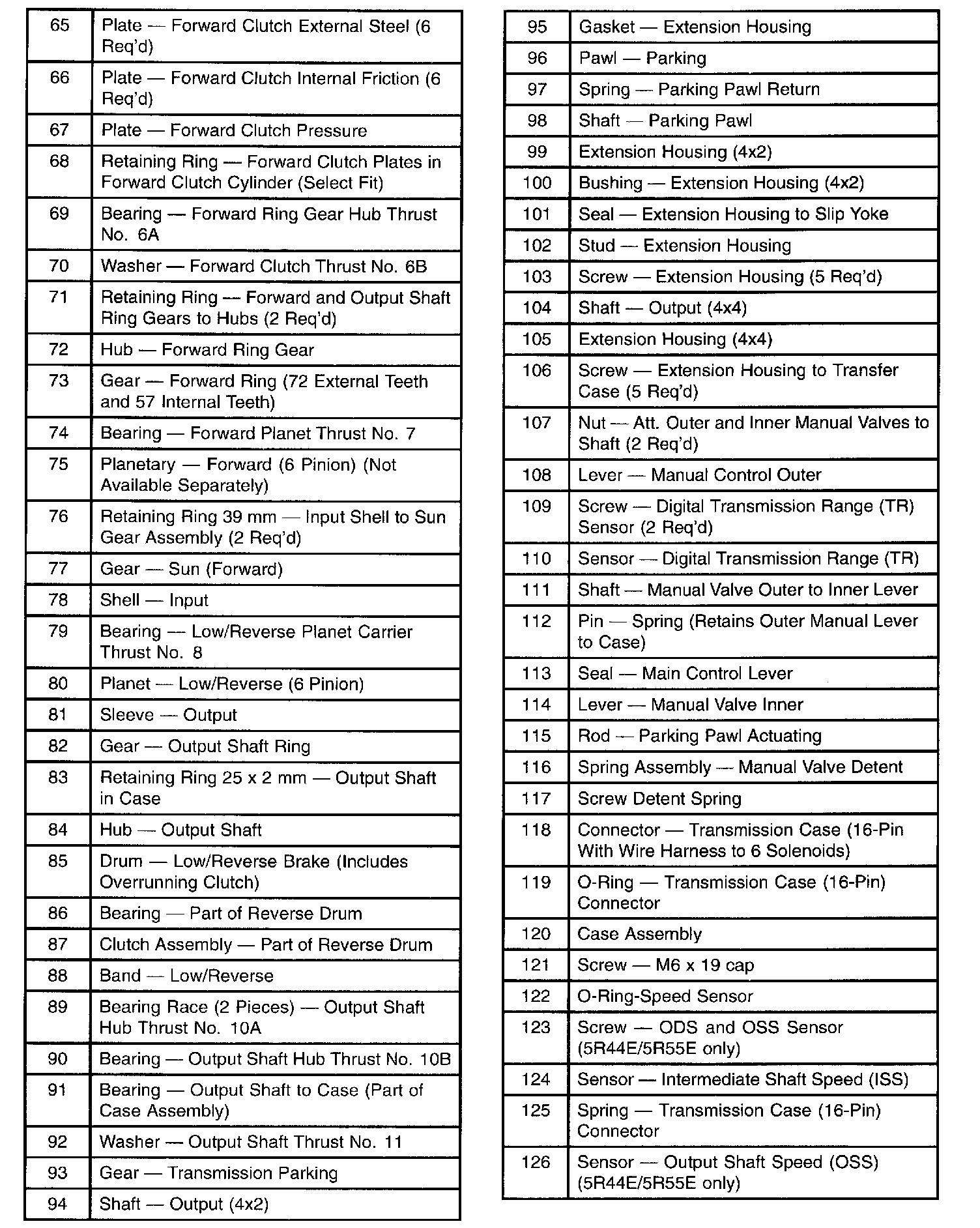

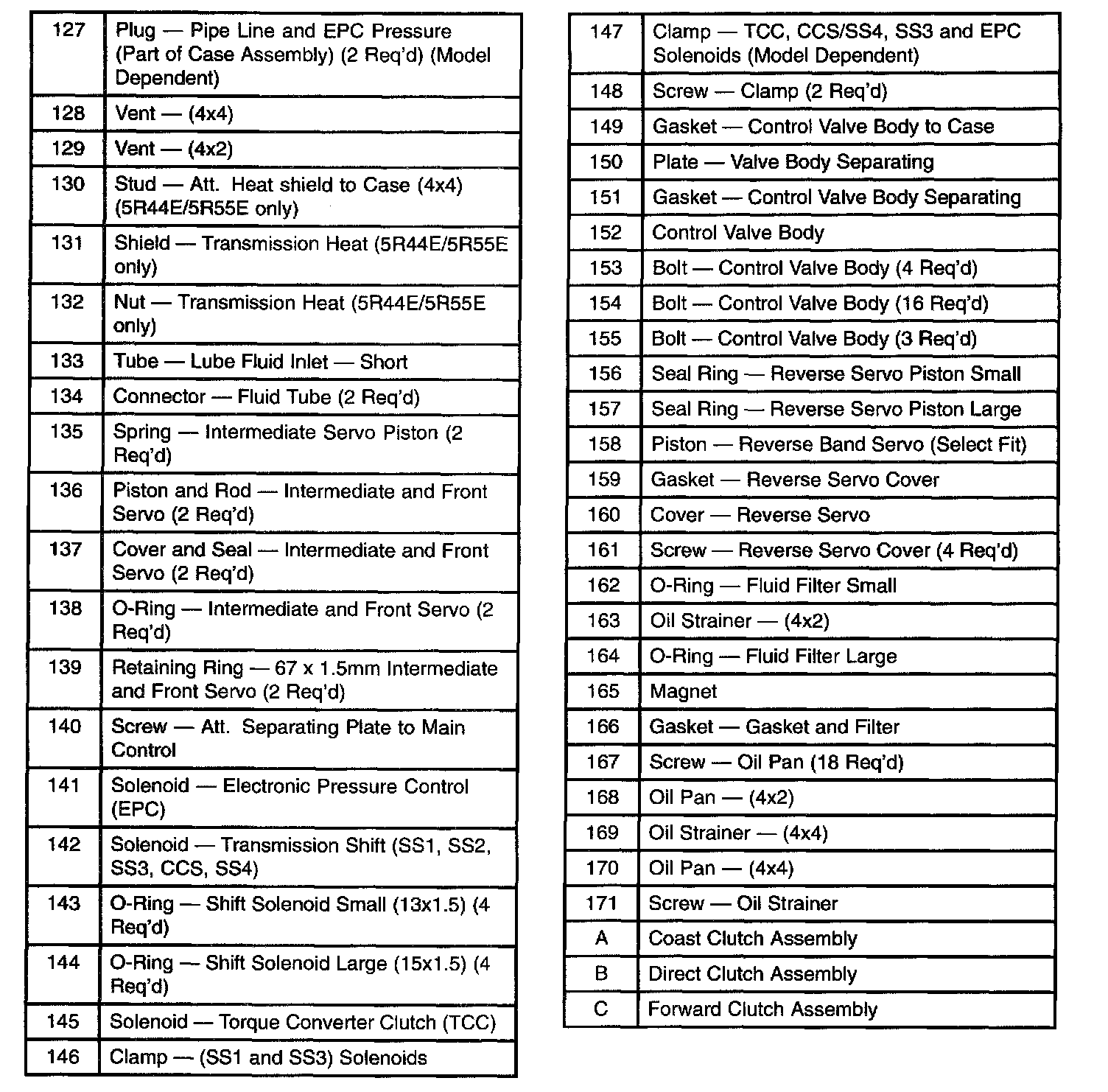

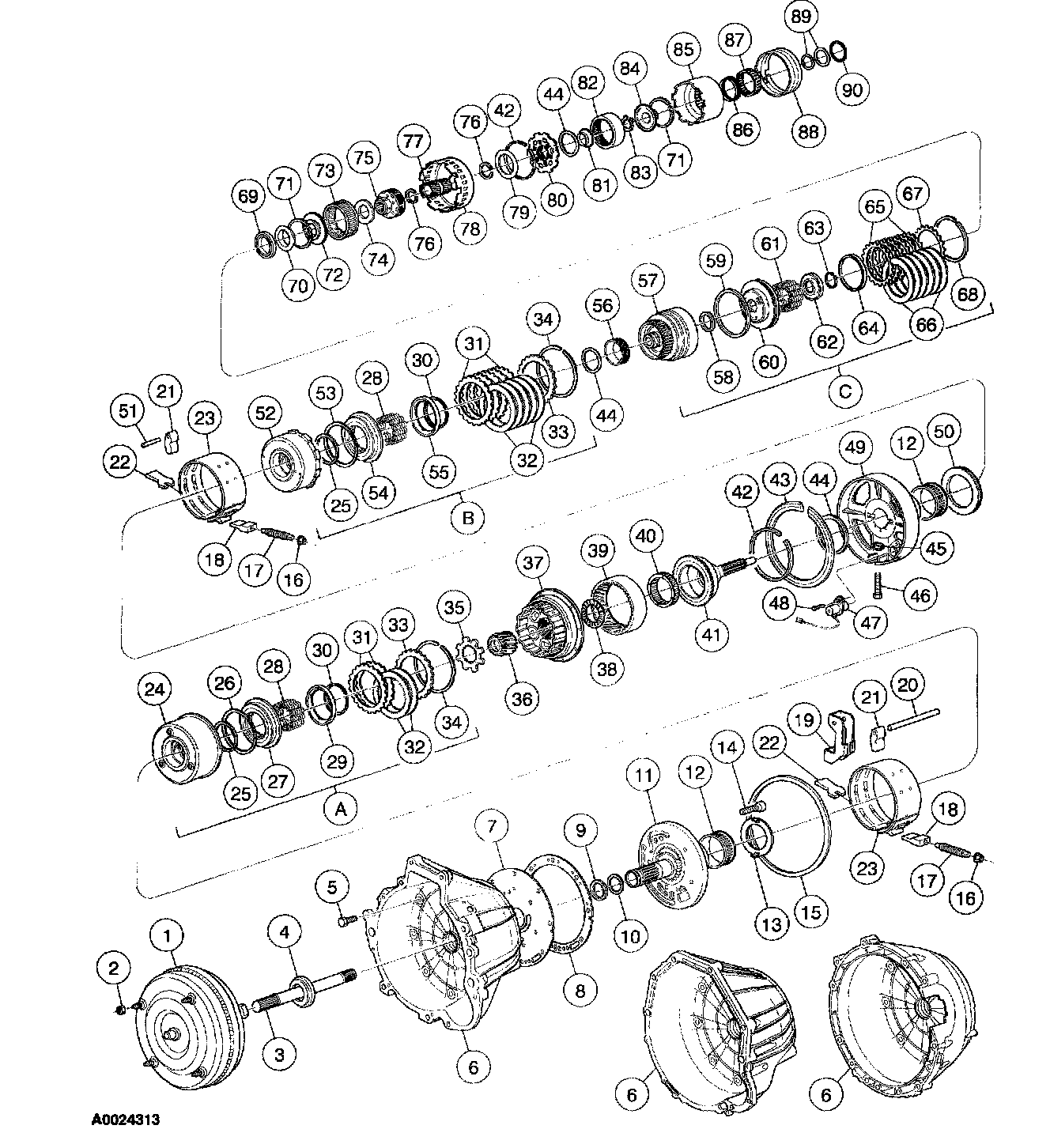

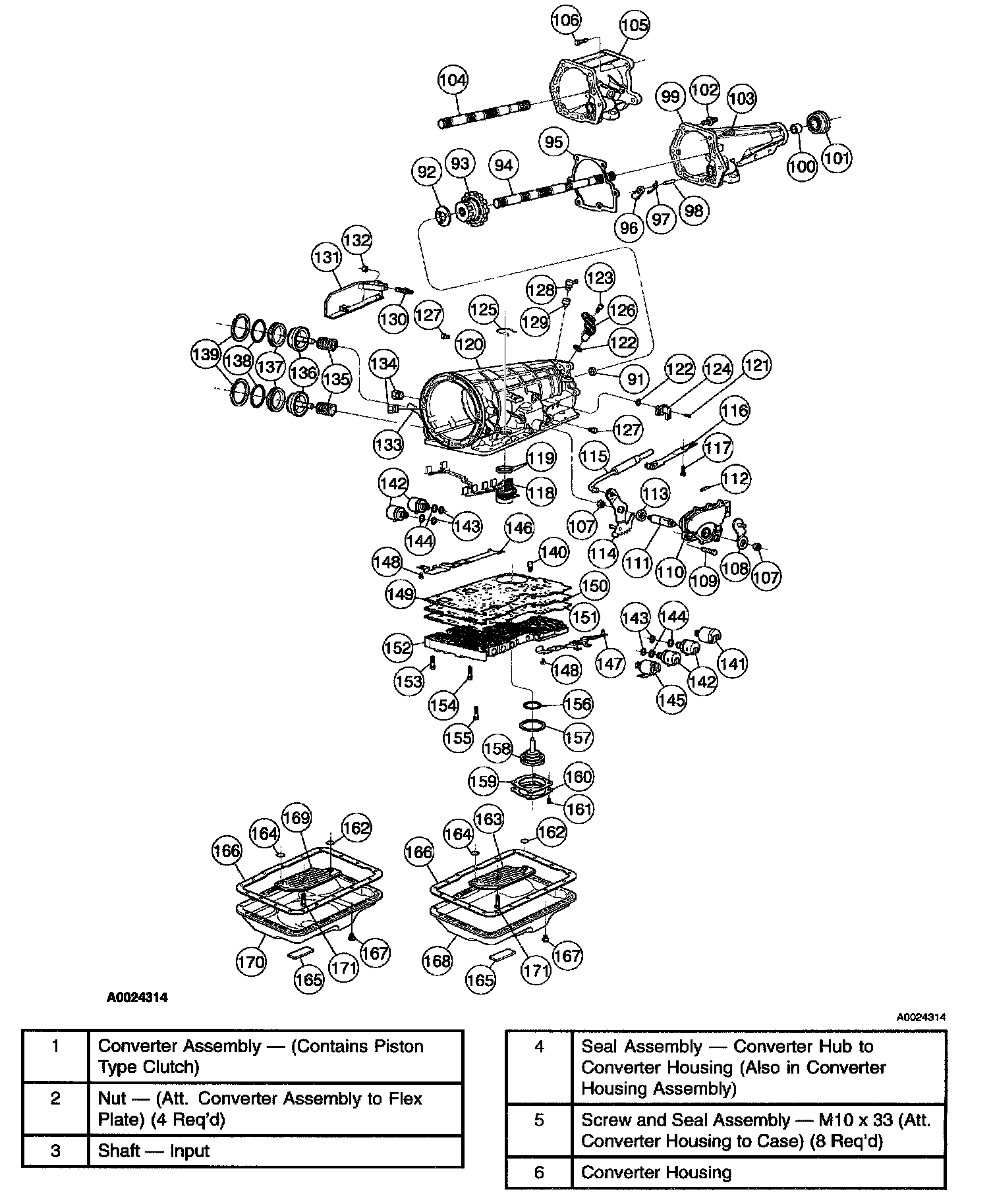

Disassembled View

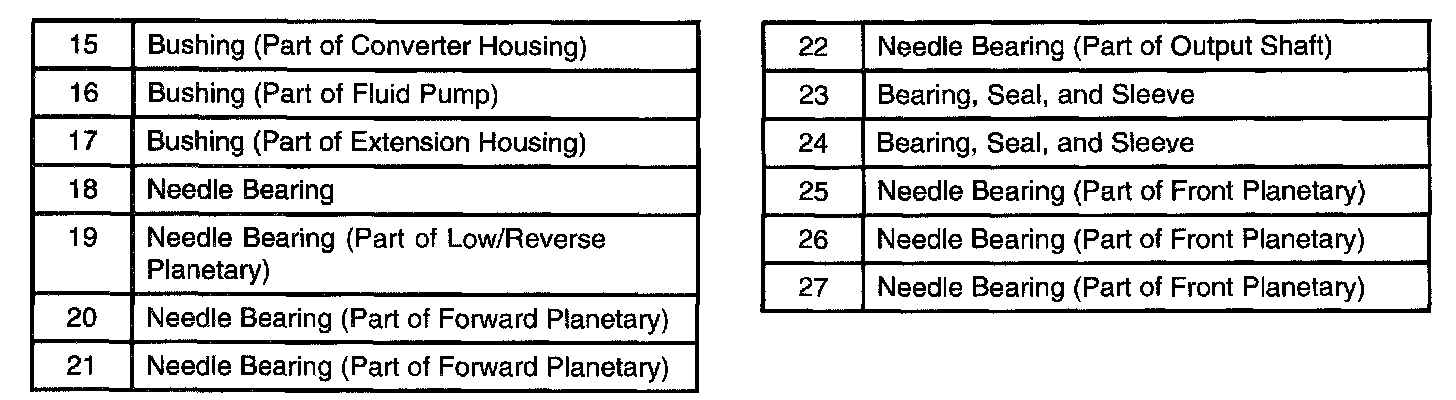

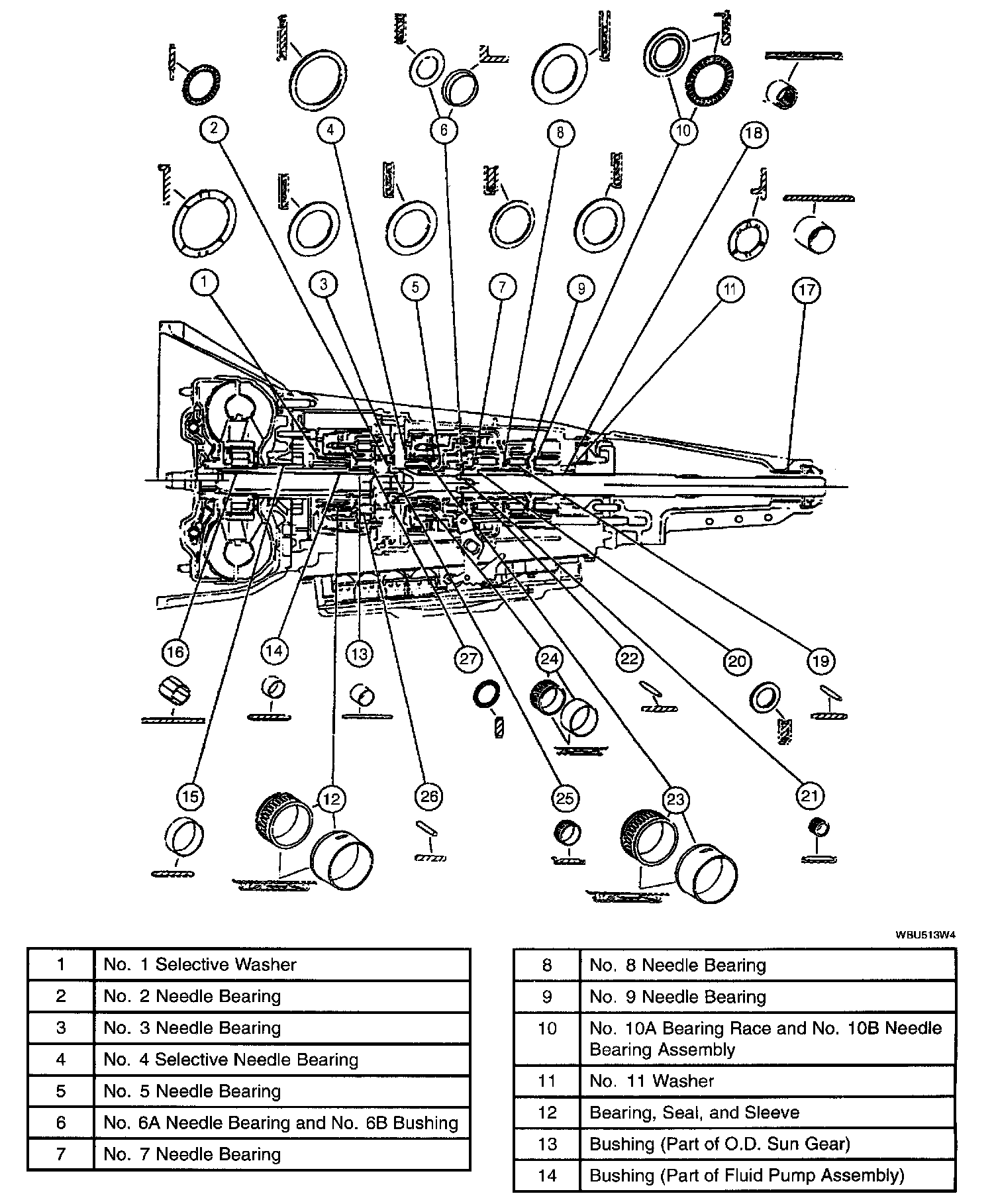

Bushings, Bearings and Thrust Washers Locator

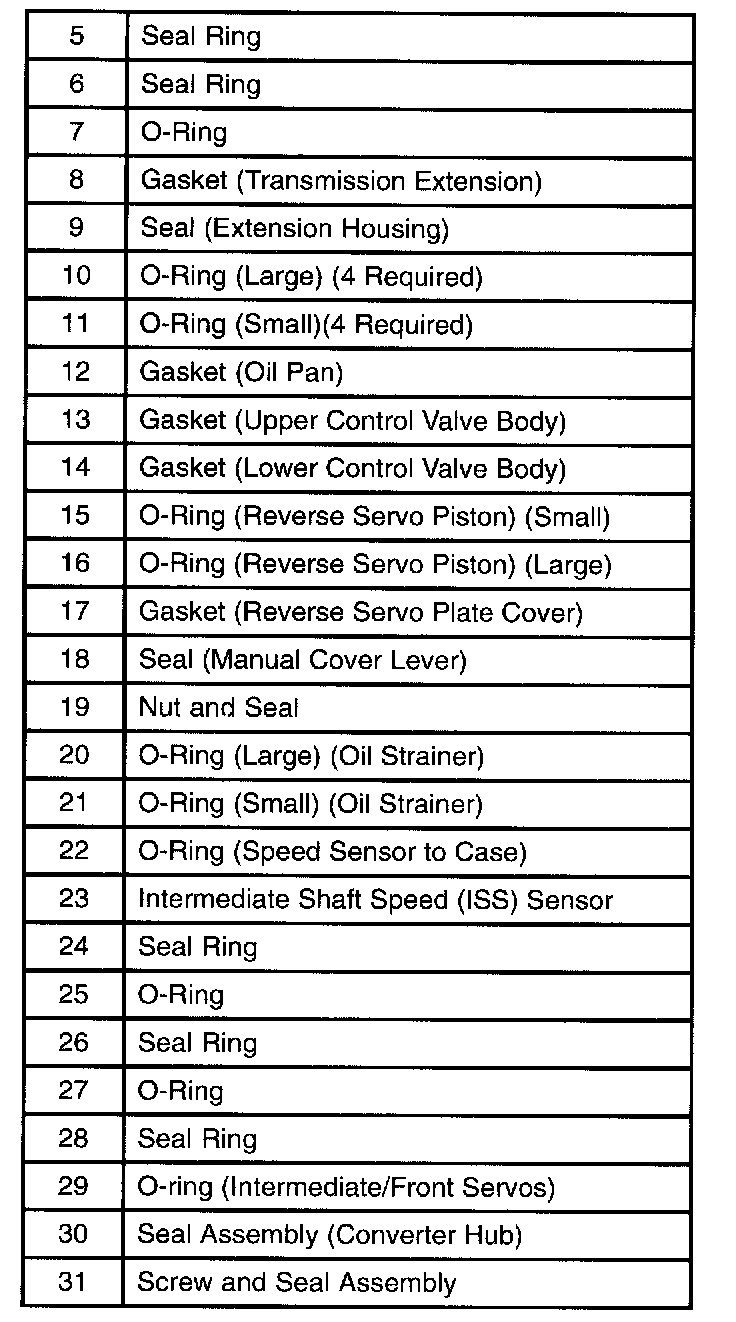

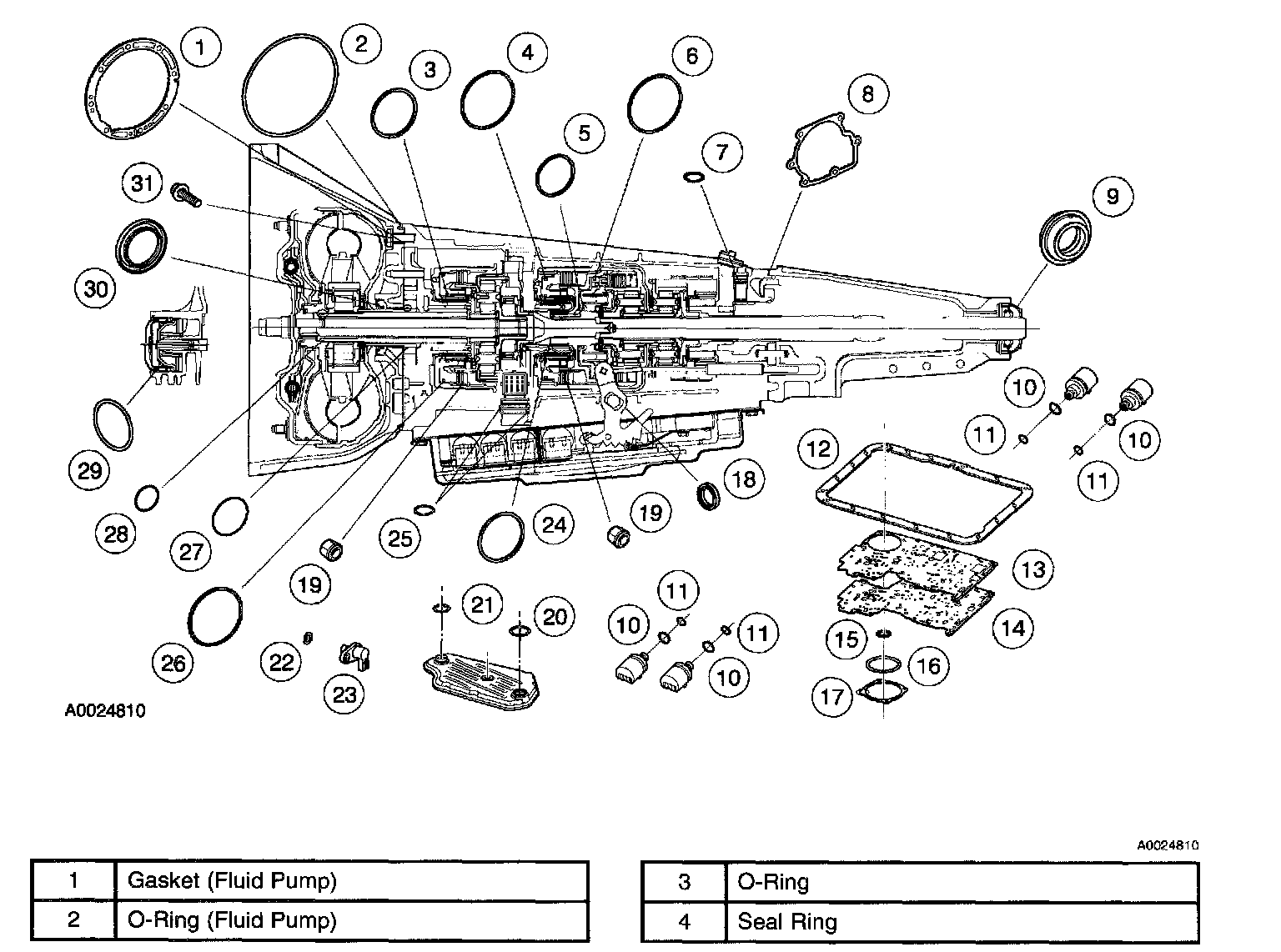

Seals, Rings and Gaskets Locator
