7. No Module / Network Communication - ISO 9141 Network

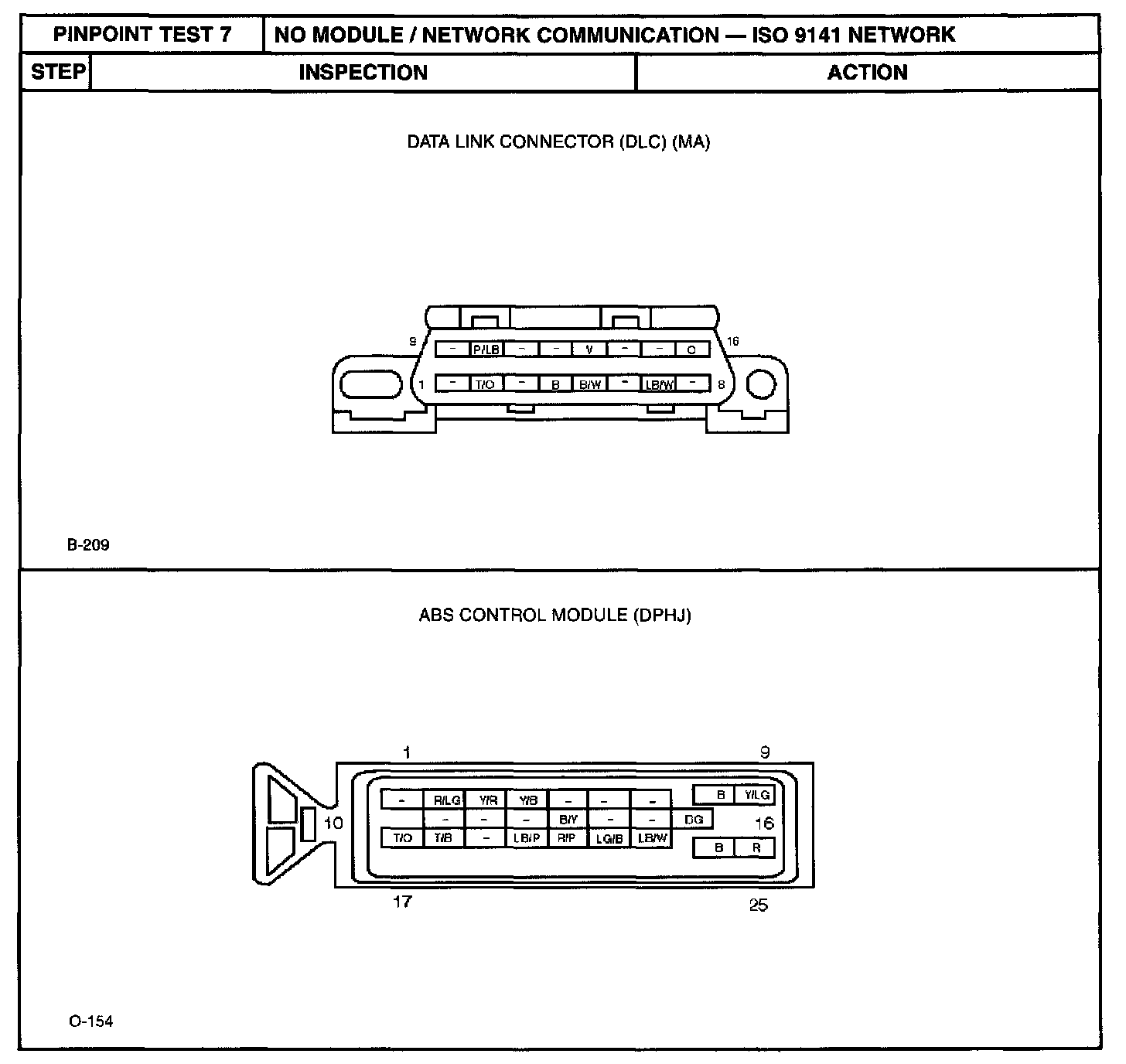

Step 1 - 6:

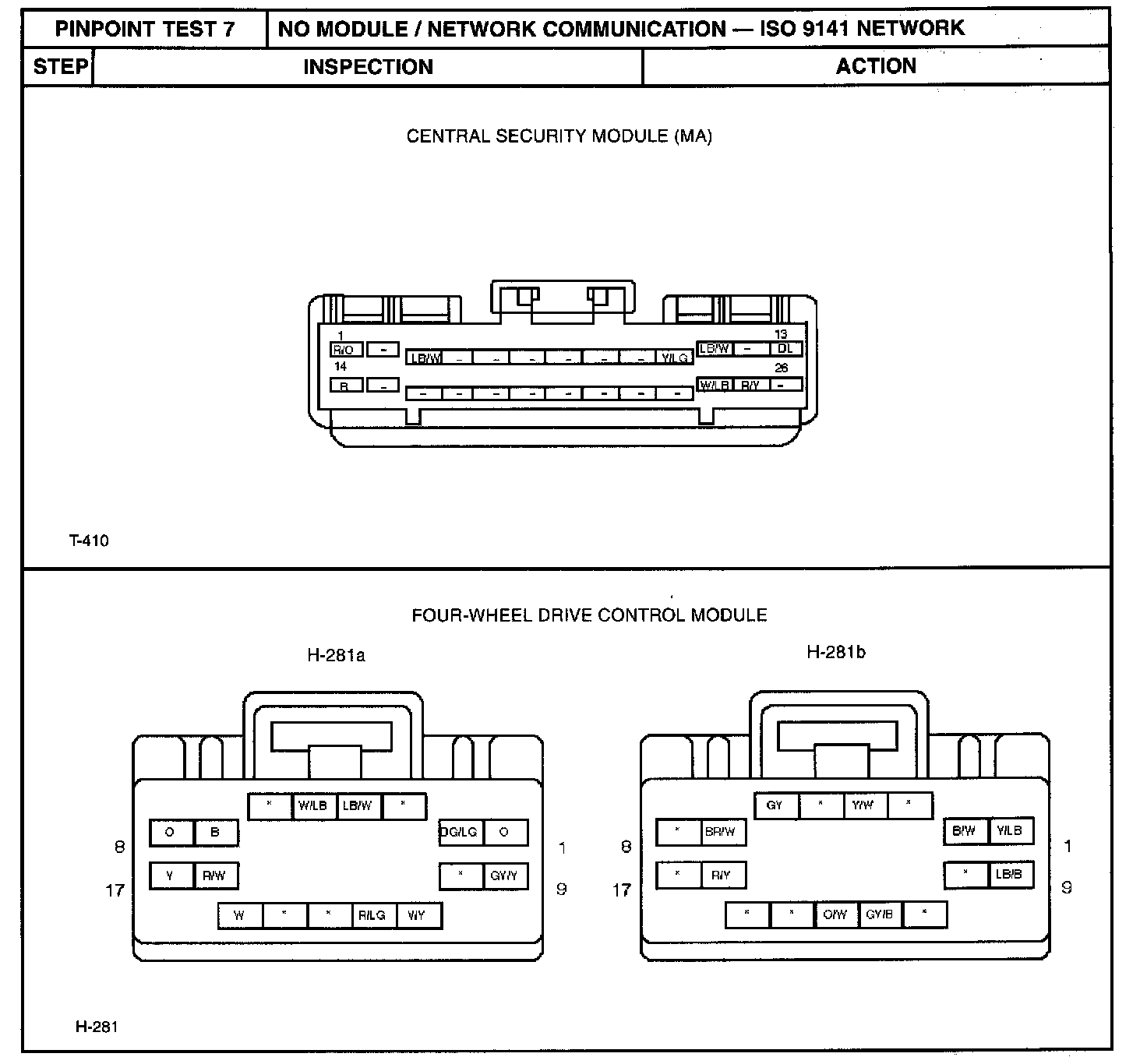

Step 7 - 12:

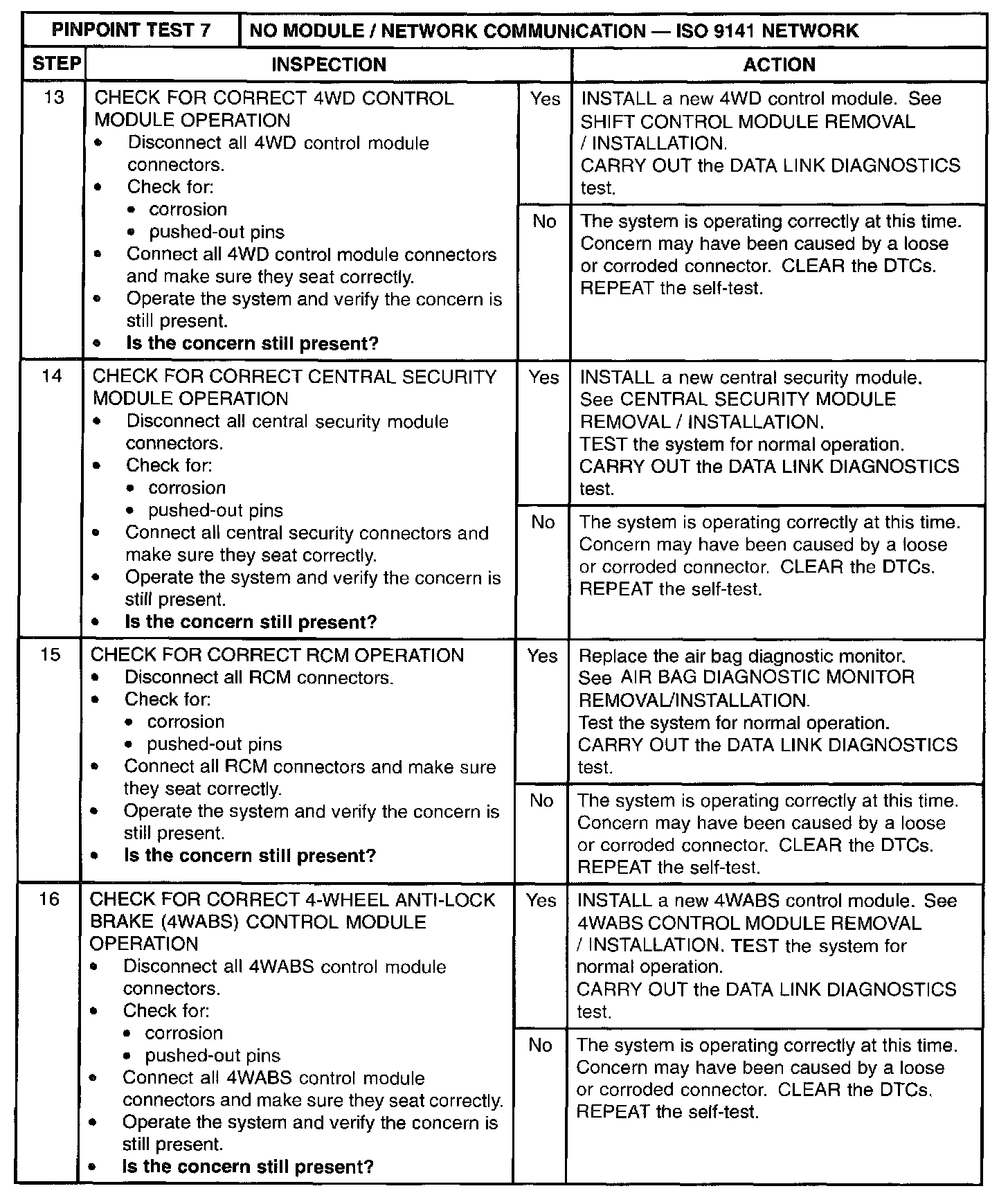

Step 13 - 16:



Step 16 Continued:



Step 16 Continued:



Step 16 Continued:
