Flex Plate: Service and Repair

FLEXPLATE REMOVAL / INSTALLATION
Removal
1. Remove the transmission.

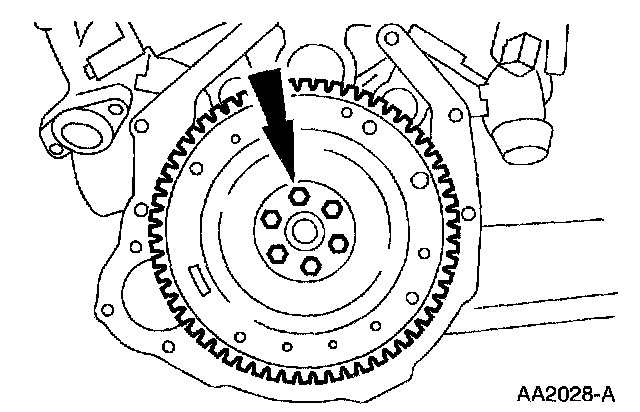

2. Remove the bolts and the flexplate.
1. Inspect the flexplate for cracks or other damage. Install a new flexplate if necessary.

Installation





Note: Special bolts are used for installation; do not use standard bolts.

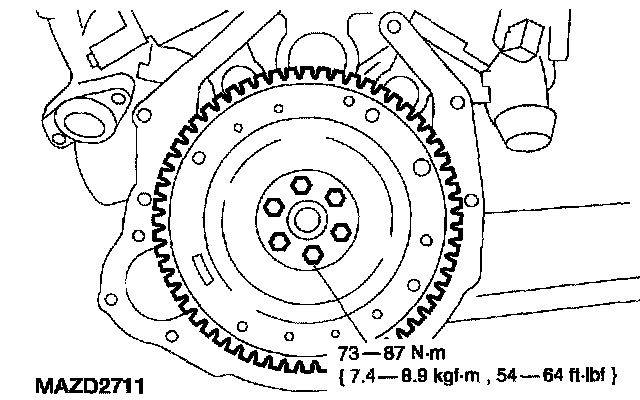

1. Position the flexplate on the crankshaft and install the bolts.

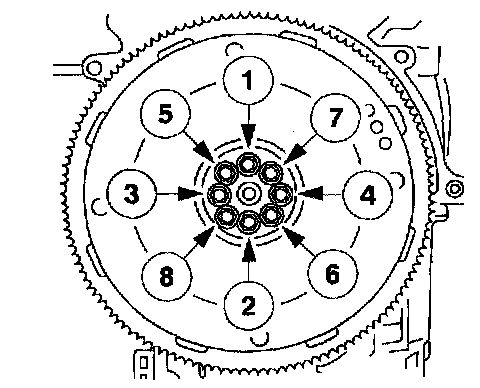

1. Tighten the bolts in a criss-cross pattern.
2. Install the transmission.
