Mazda Truck
>>
2002
>>
B3000 DS Cab Plus 2WD V6-3.0L OHV
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Grounding Point
>>
Locations
>>
Connector Locations
Connector Locations

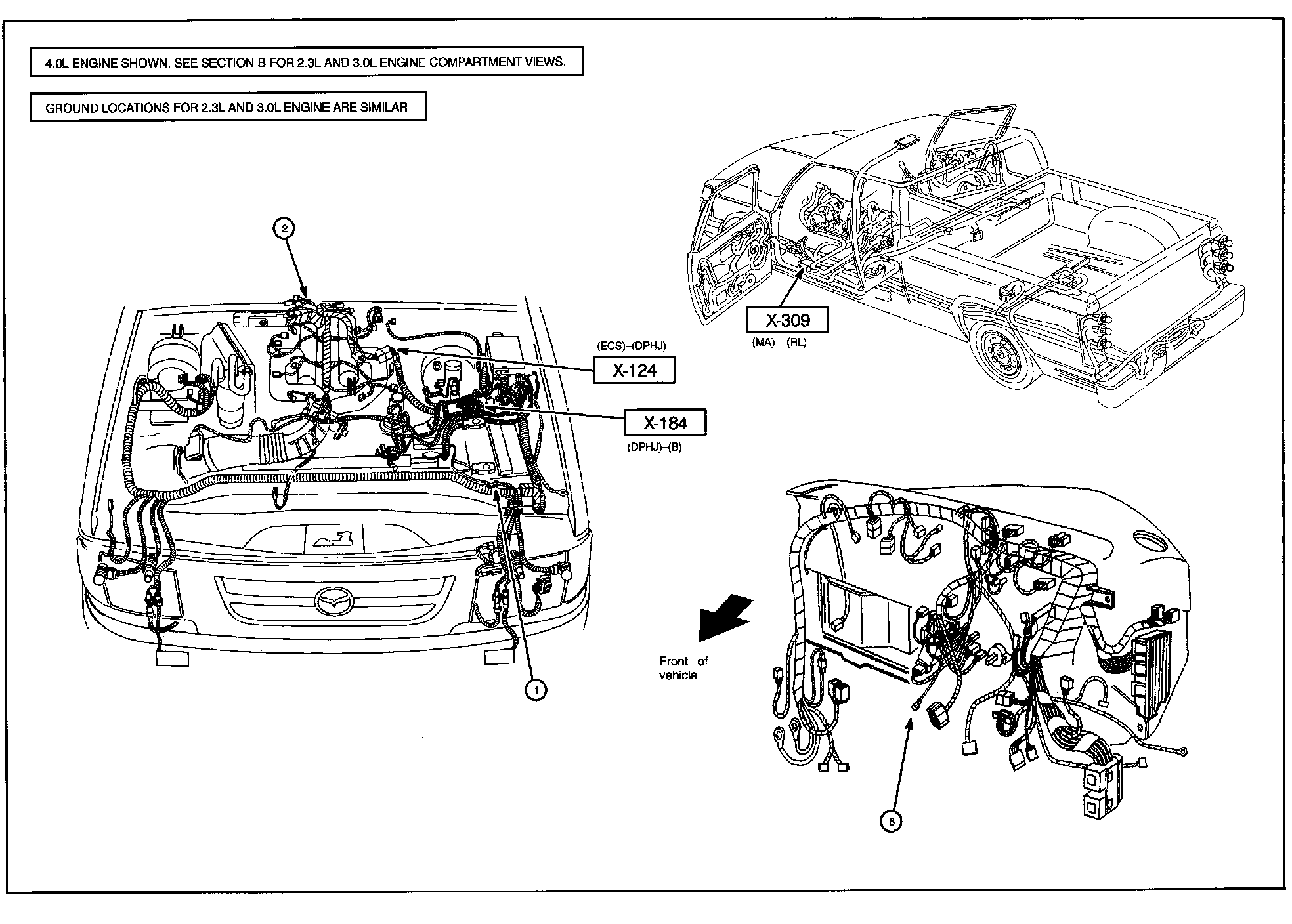

Y-a - Ground Circuit Harness / Connector Symbols:

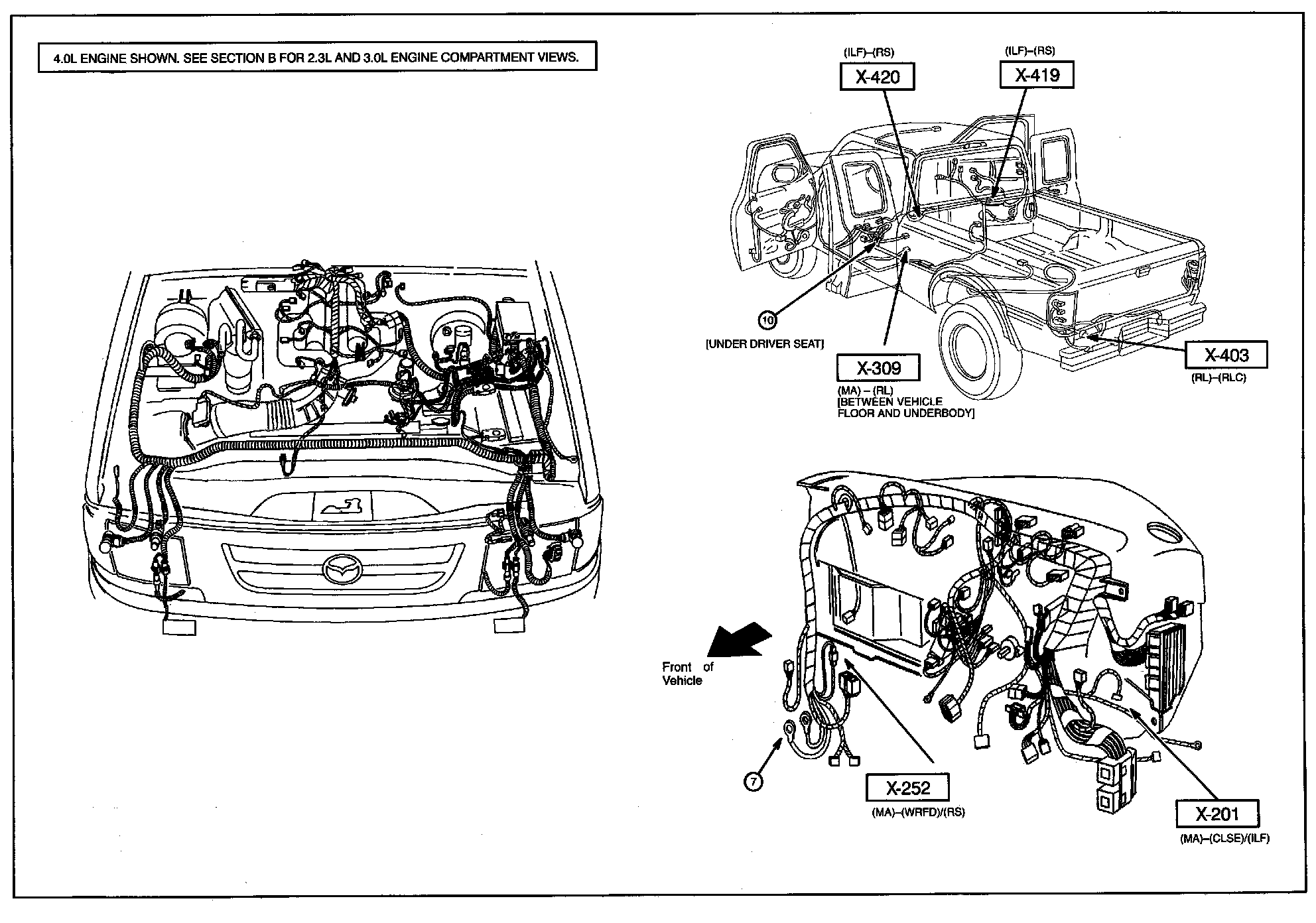

Y-b - Ground Circuit Harness / Connector Symbols:

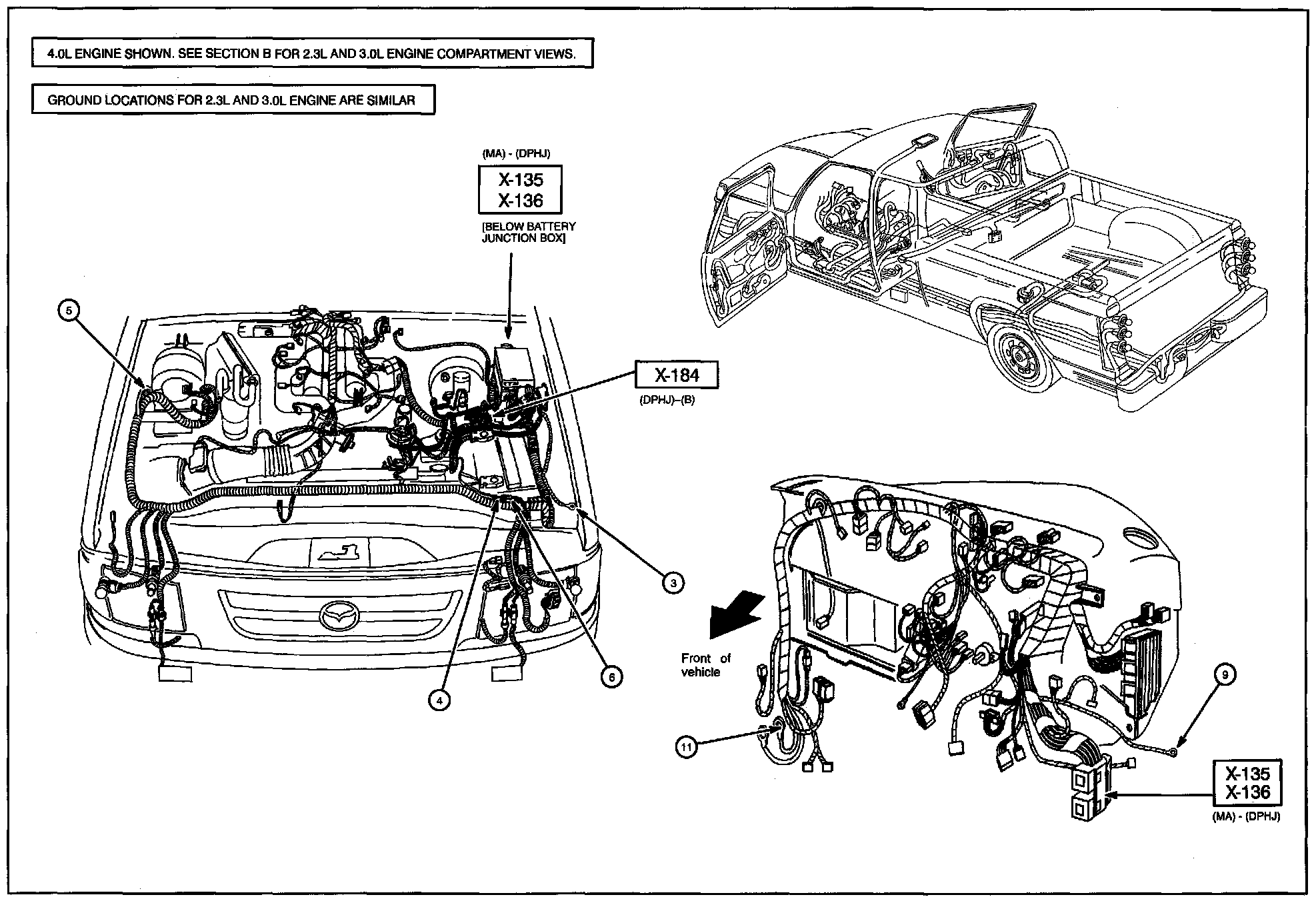

Y-c - Ground Circuit Connector / Harness Symbols:
