EGR Electronic Vacuum Regulator Solenoid: Service and Repair

EXHAUST GAS RECIRCULATION VACUUM REGULATOR SOLENOID REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.




2. Disconnect the electrical connector.

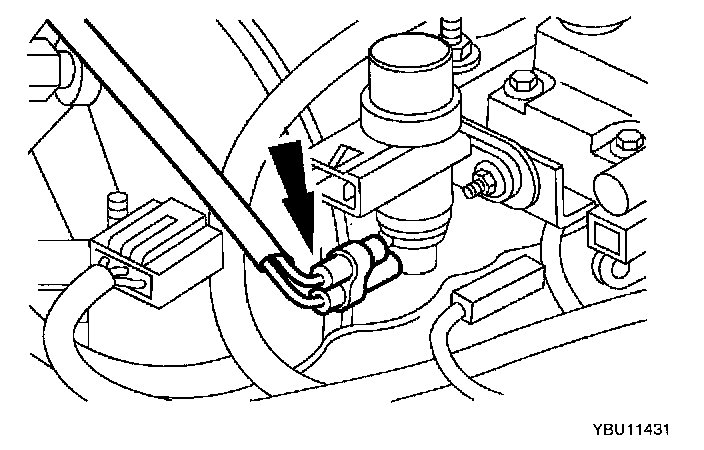

3. Disconnect the hoses.

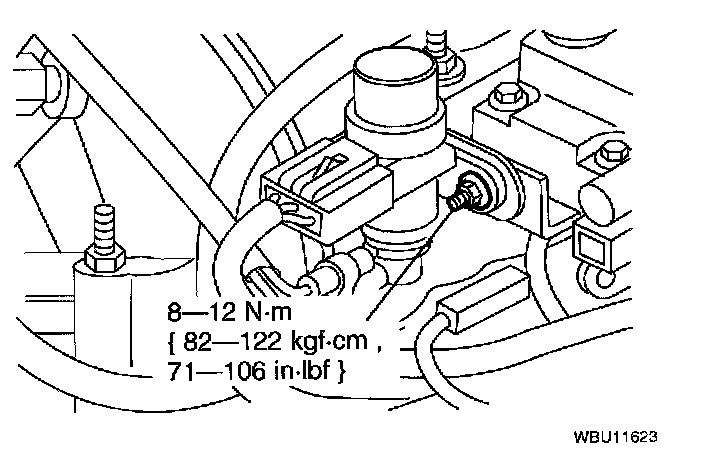

4. Remove the nut and the EGR vacuum regulator solenoid.
5. Install in reverse order of removal.
