Curiosii for ever!: Car repair manuals for everyone.
Home >> Mazda Truck >> 2002 >> B3000 DS Cab Plus 2WD V6-3.0L OHV >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Relays and Modules - Computers and Control Systems >> Engine Control Module >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Pinpoint Tests >> 4: No Network Communication-No Power to WDS Tester Thru DLC

4: No Network Communication-No Power to WDS Tester Thru DLC

Step 1 - 3:

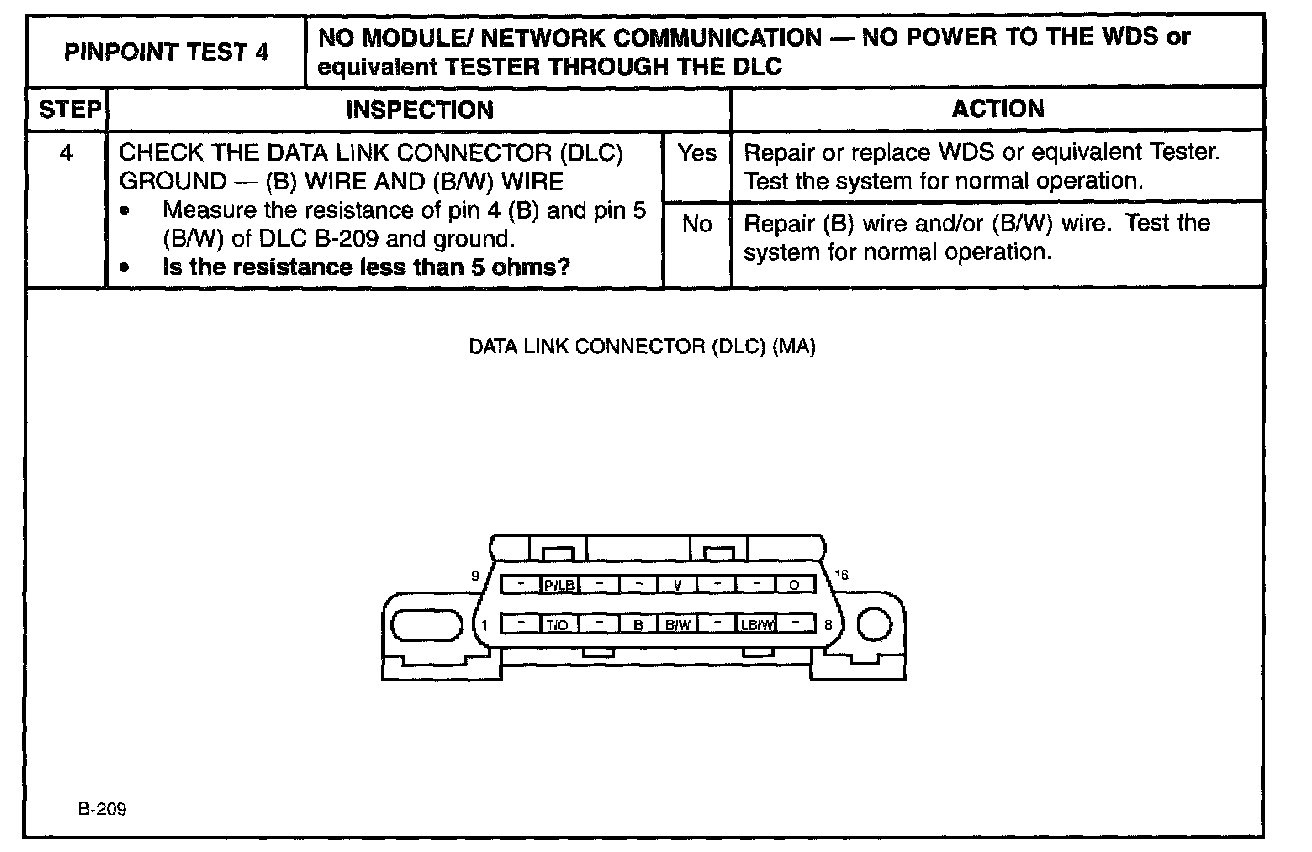

Step 4:
