LH Instrument Panel Register Duct Removal/Installation

LH INSTRUMENT PANEL REGISTER DUCT REMOVAL/INSTALLATION




1. Remove the LH instrument panel finish panel; see LH INSTRUMENT PANEL REGISTER REMOVAL/INSTALLATION.
2. Remove the two screws and remove the LH instrument panel register duct.
3. Install in reverse order of removal.

RH INSTRUMENT PANEL REGISTER DUCT REMOVAL/INSTALLATION

1. Remove the RH instrument panel register; see RH INSTRUMENT PANEL REGISTER REMOVAL/INSTALLATION.
2. Remove the passenger side air bag module; see PASSENGER AIR BAG MODULE REMOVAL/INSTALLATION.
3. Remove the two RH instrument panel register duct screws then remove the duct.

Tightening Torque
2 - 3 N.m {20 - 30 kgf.cm, 18 - 26 in-lbf}.

4. Install in reverse order of removal.

CENTER INSTRUMENT PANEL DUCT REGISTER REMOVAL/INSTALLATION

1. Remove the center instrument panel register. See CENTER INSTRUMENT PANEL REGISTER REMOVAL/INSTALLATION.

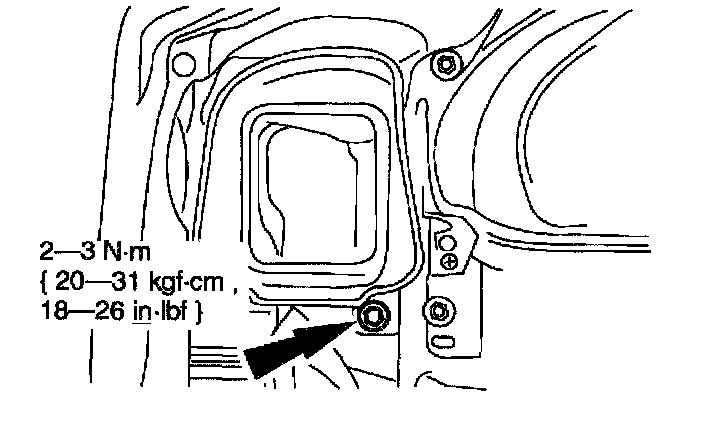

2. Remove the center instrument panel register duct screws then remove the duct.

Tightening torque
2 - 3 N.m {20 - 31 kgf.cm, 18 - 26 in.lbf}

3. Install in reverse order of removal.
