Mazda Truck
>>
2002
>>
B3000 DS Cab Plus 2WD V6-3.0L OHV
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Suspension
>>
Rear Suspension Components

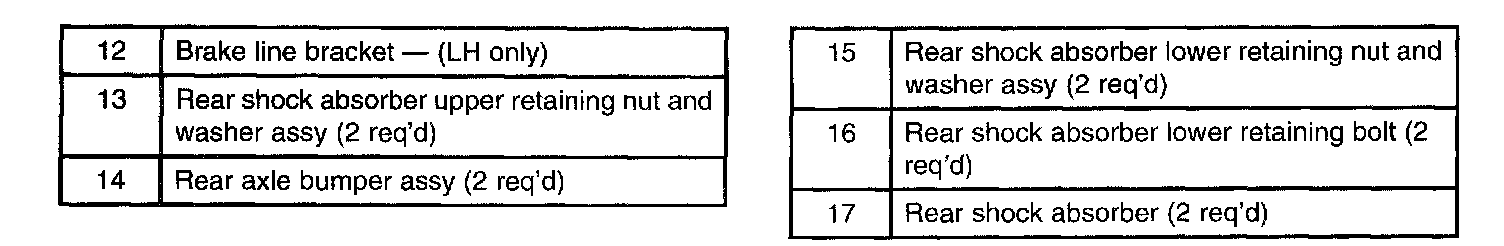

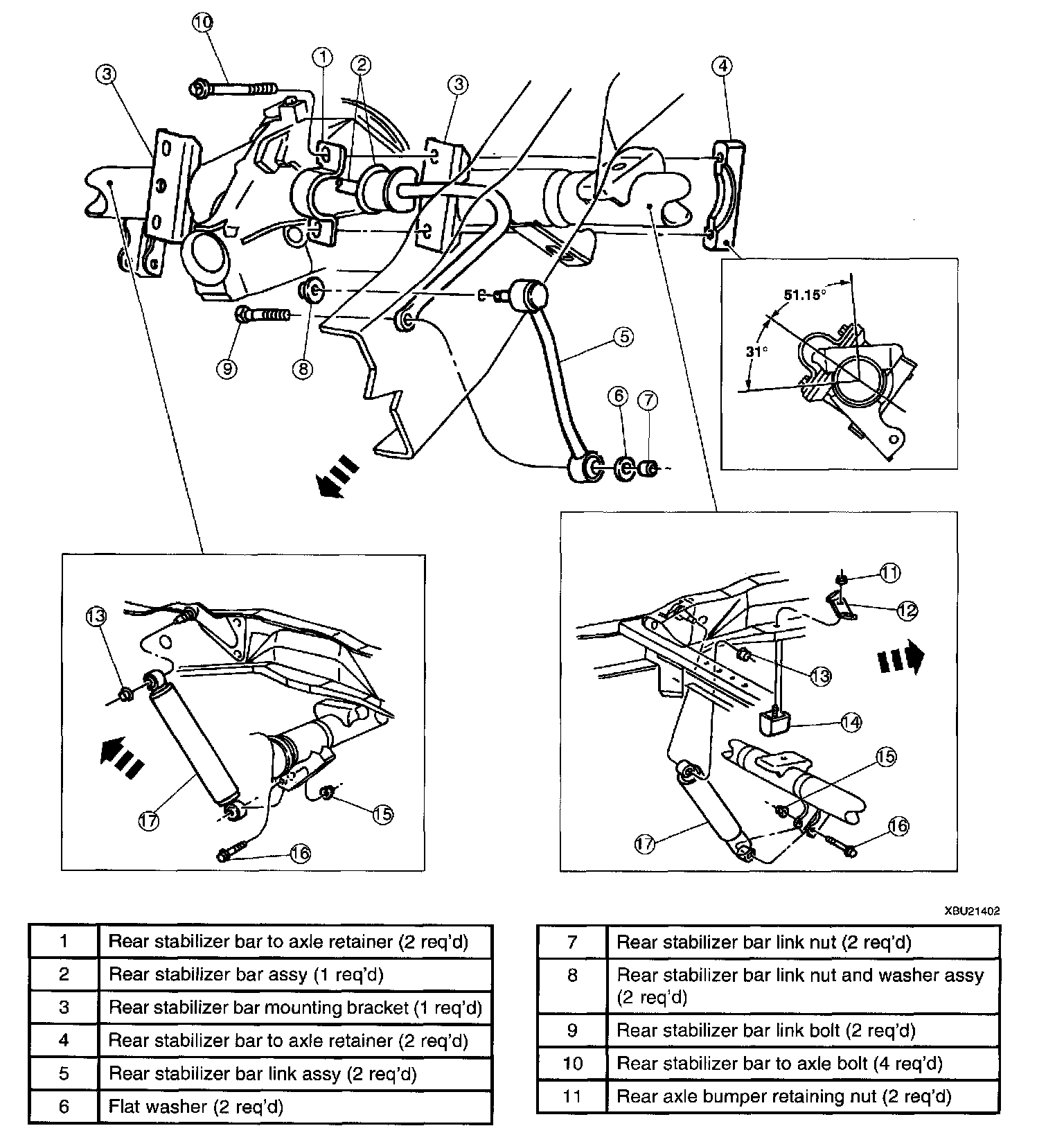

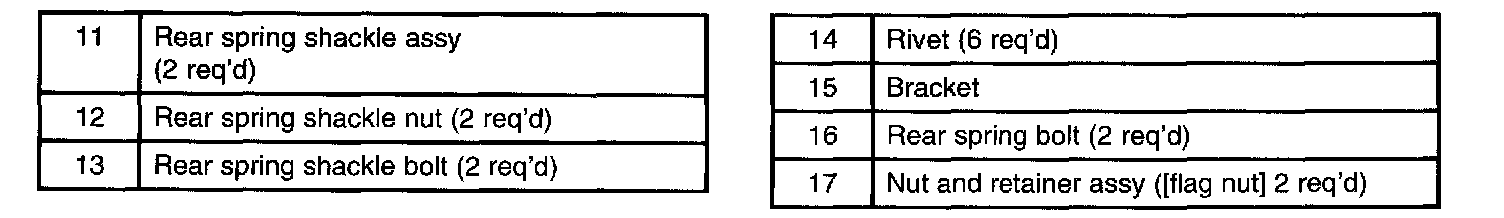

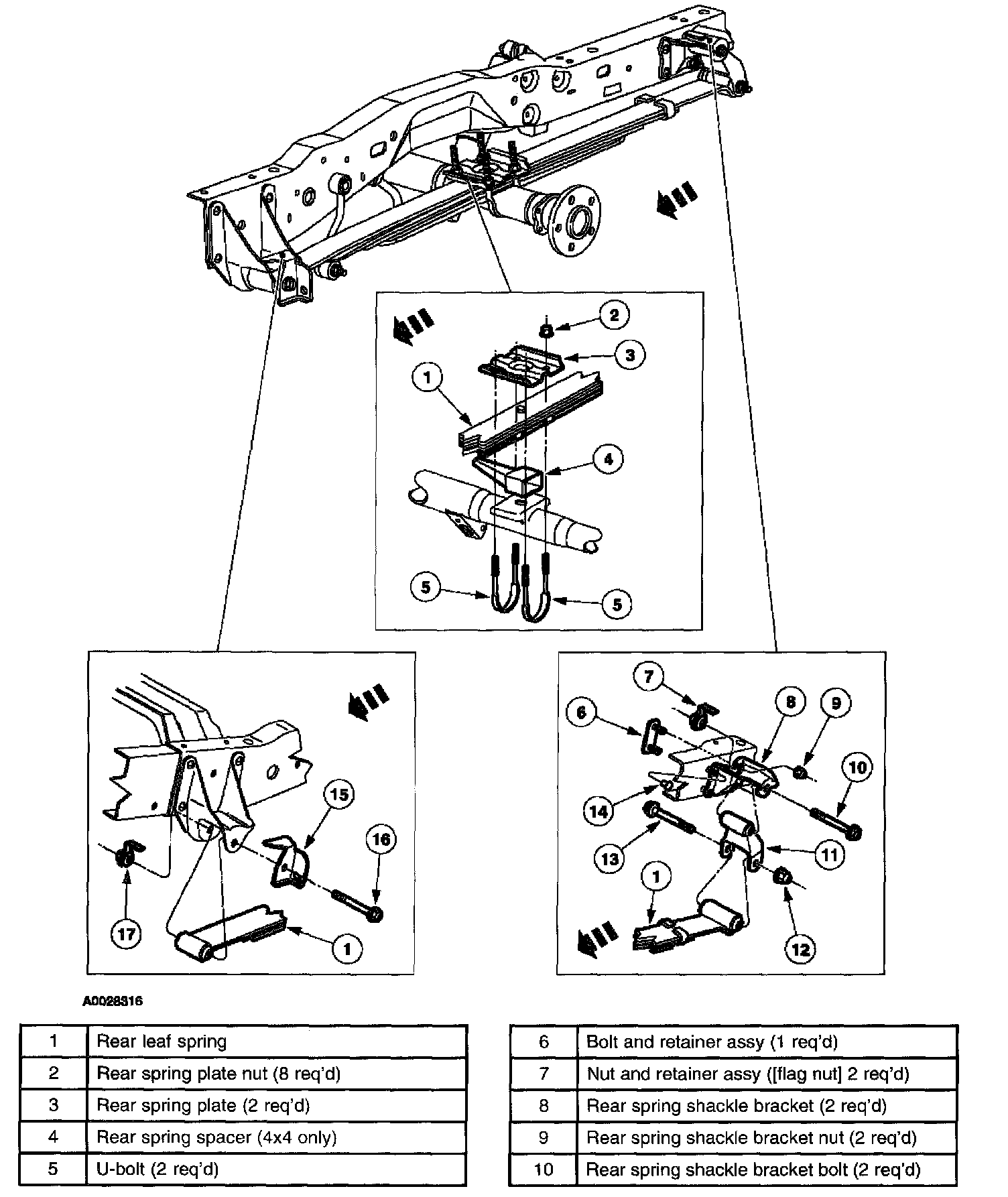

Rear Suspension Components
REAR
SUSPENSION
COMPONENTS
1 of 4
2 of 4
3 of 4
4 of 4
