Differential Assembly

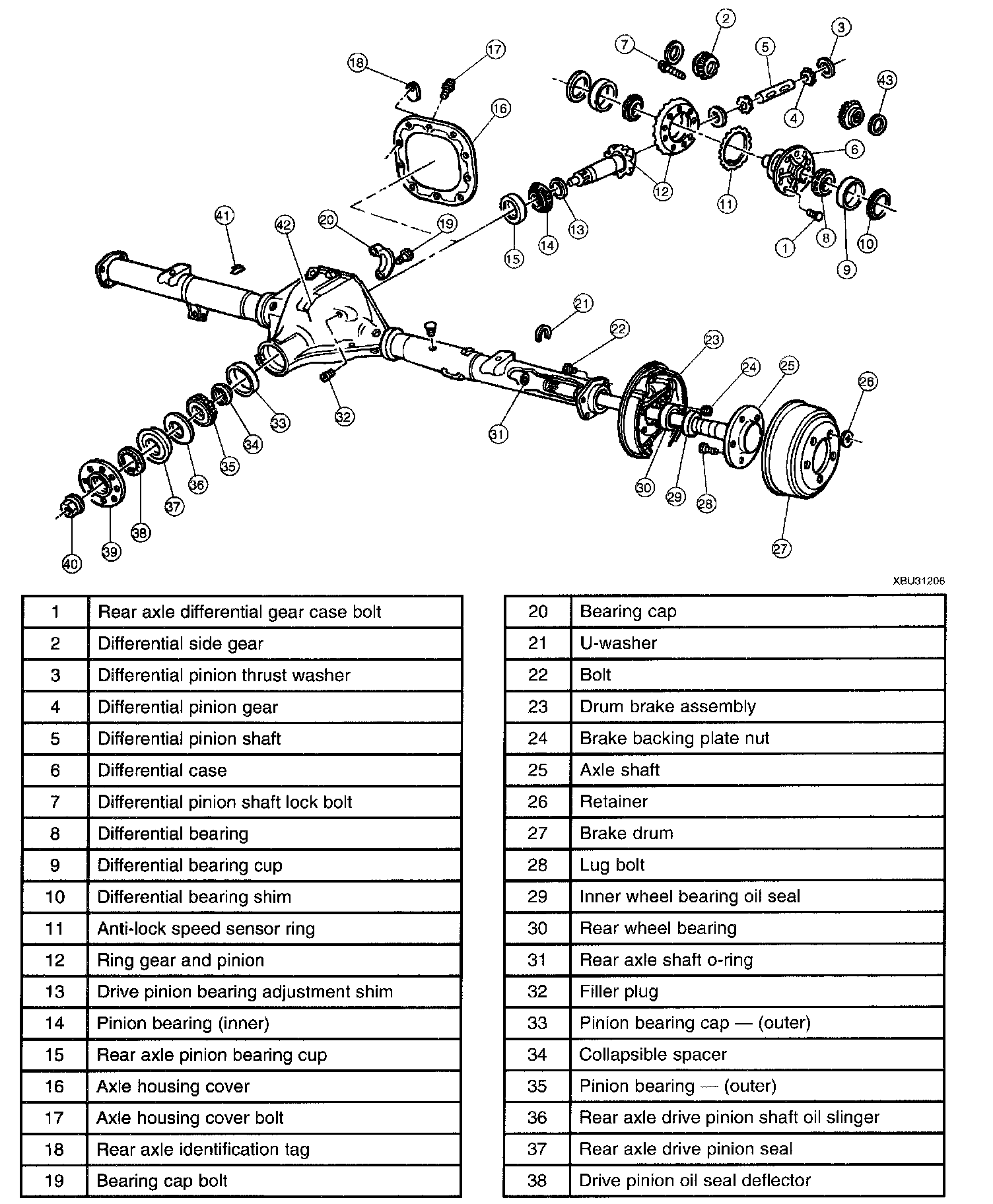

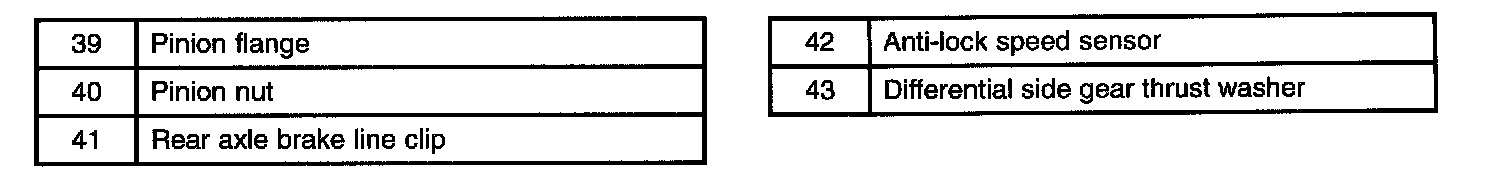

STANDARD REAR AXLE AND DIFFERENTIAL STRUCTURAL VIEW

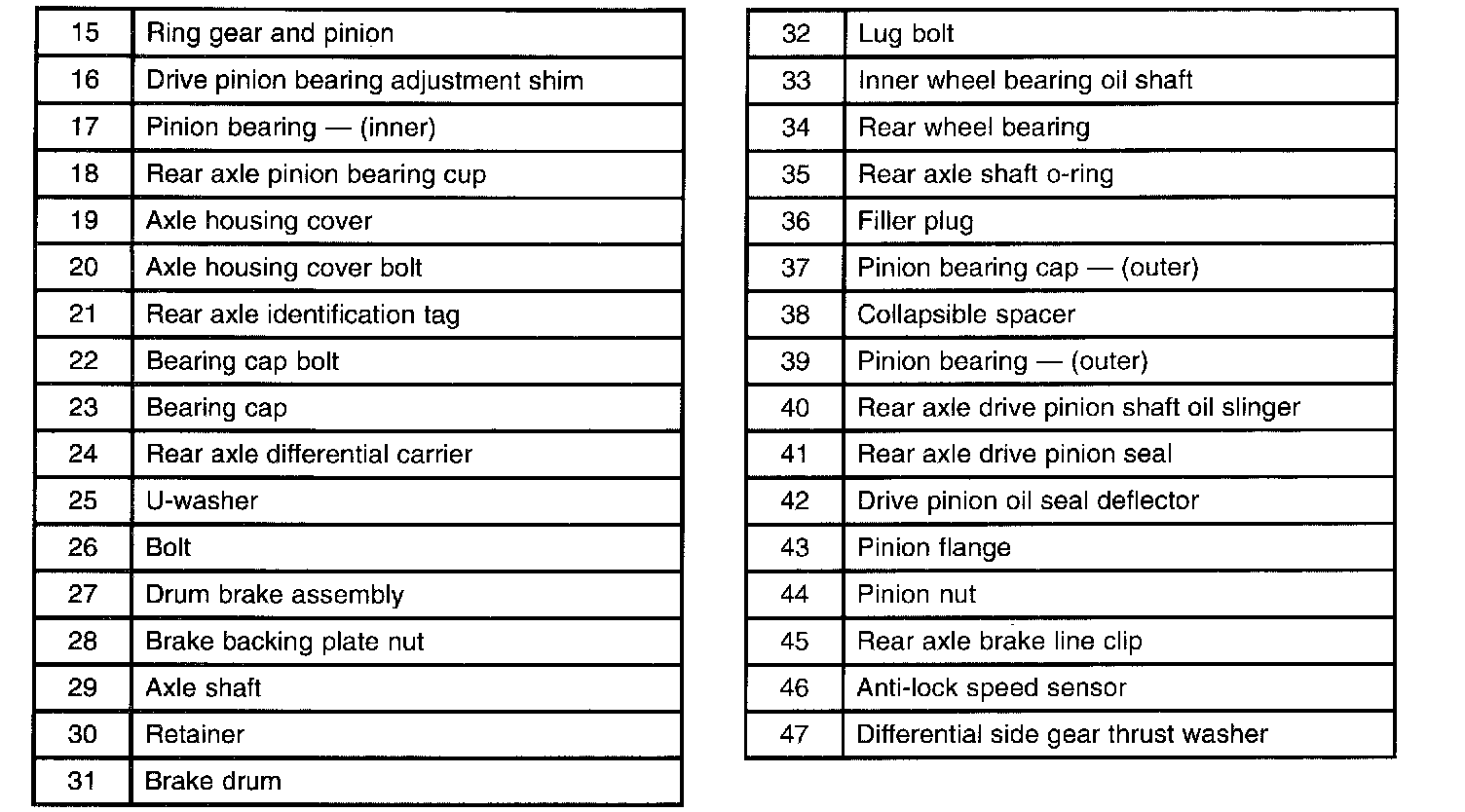

LIMITED SLIP REAR AXLE AND DIFFERENTIAL STRUCTURAL VIEW
