Underbody Misalignment Inspection

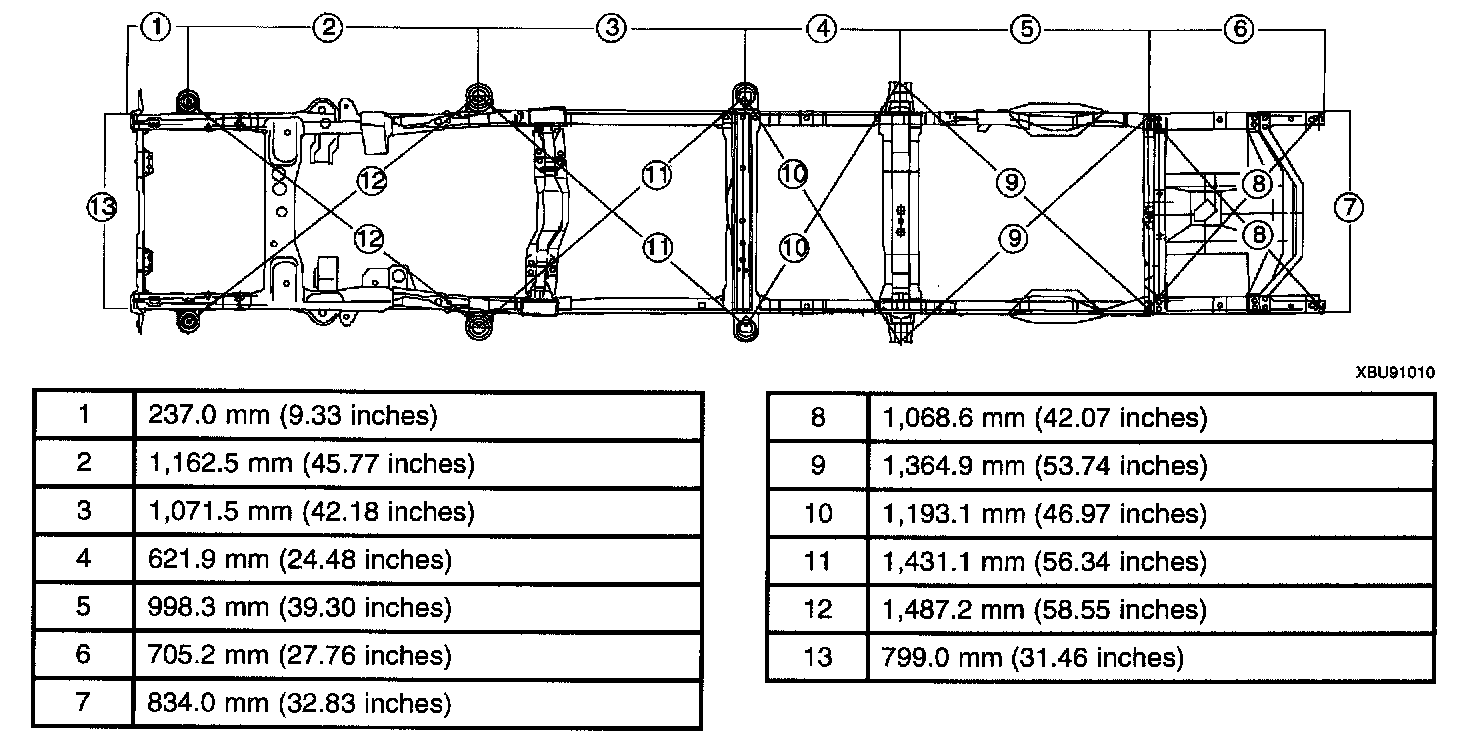

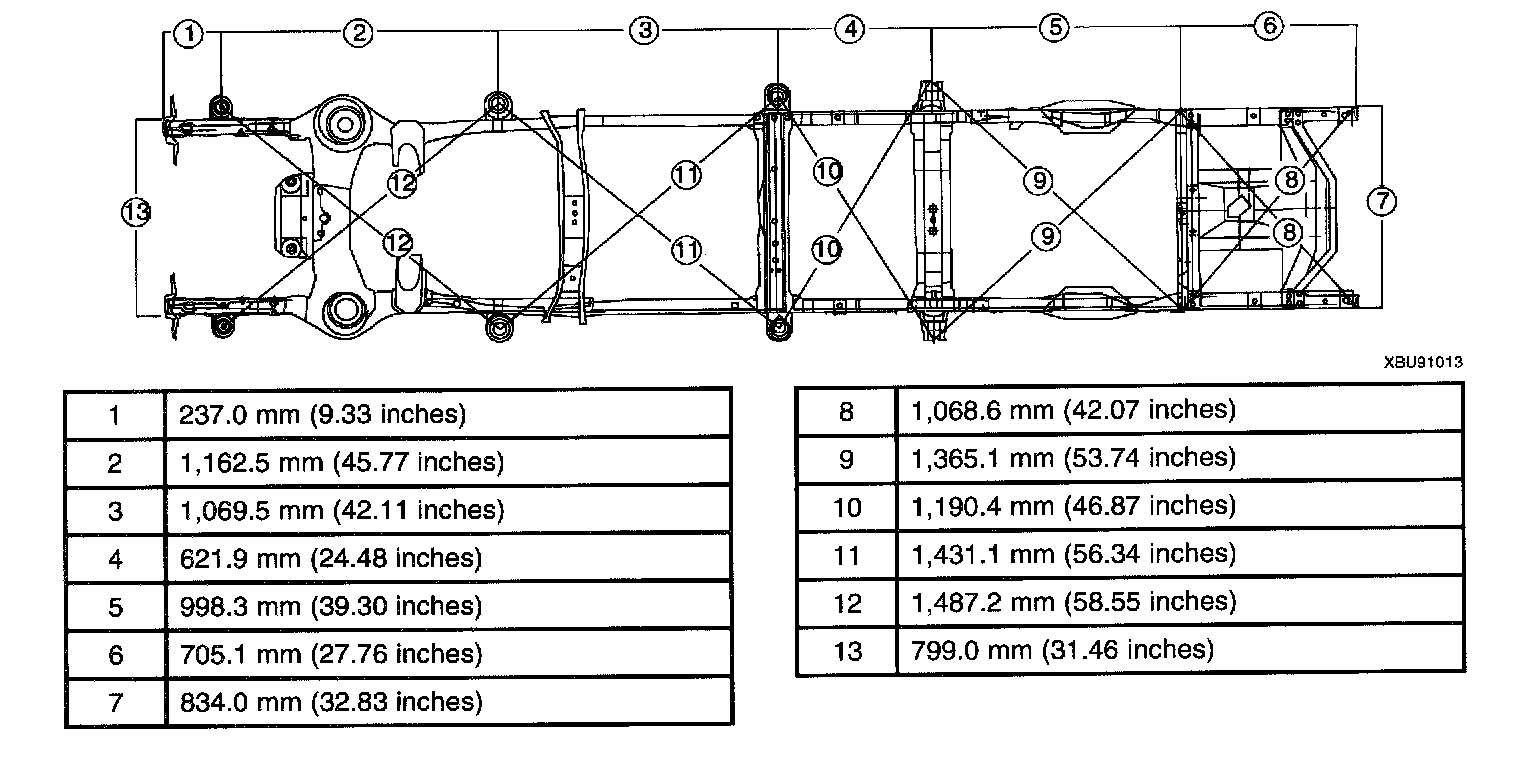

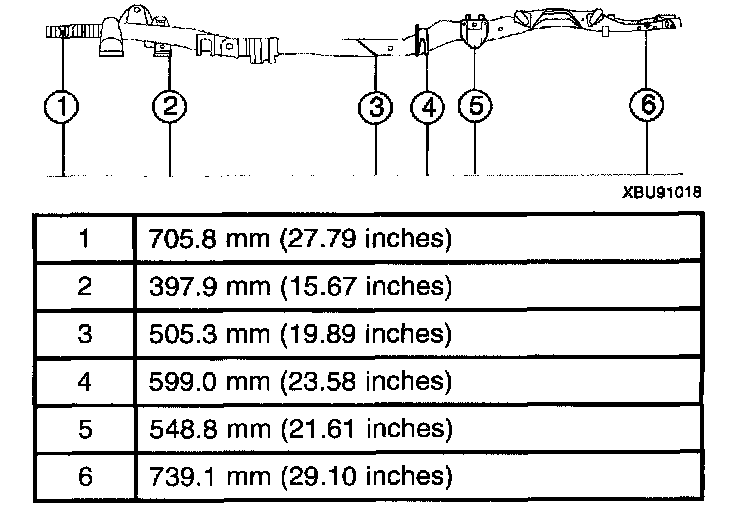

Frame Dimensions - Short Wheel Base (4X4):

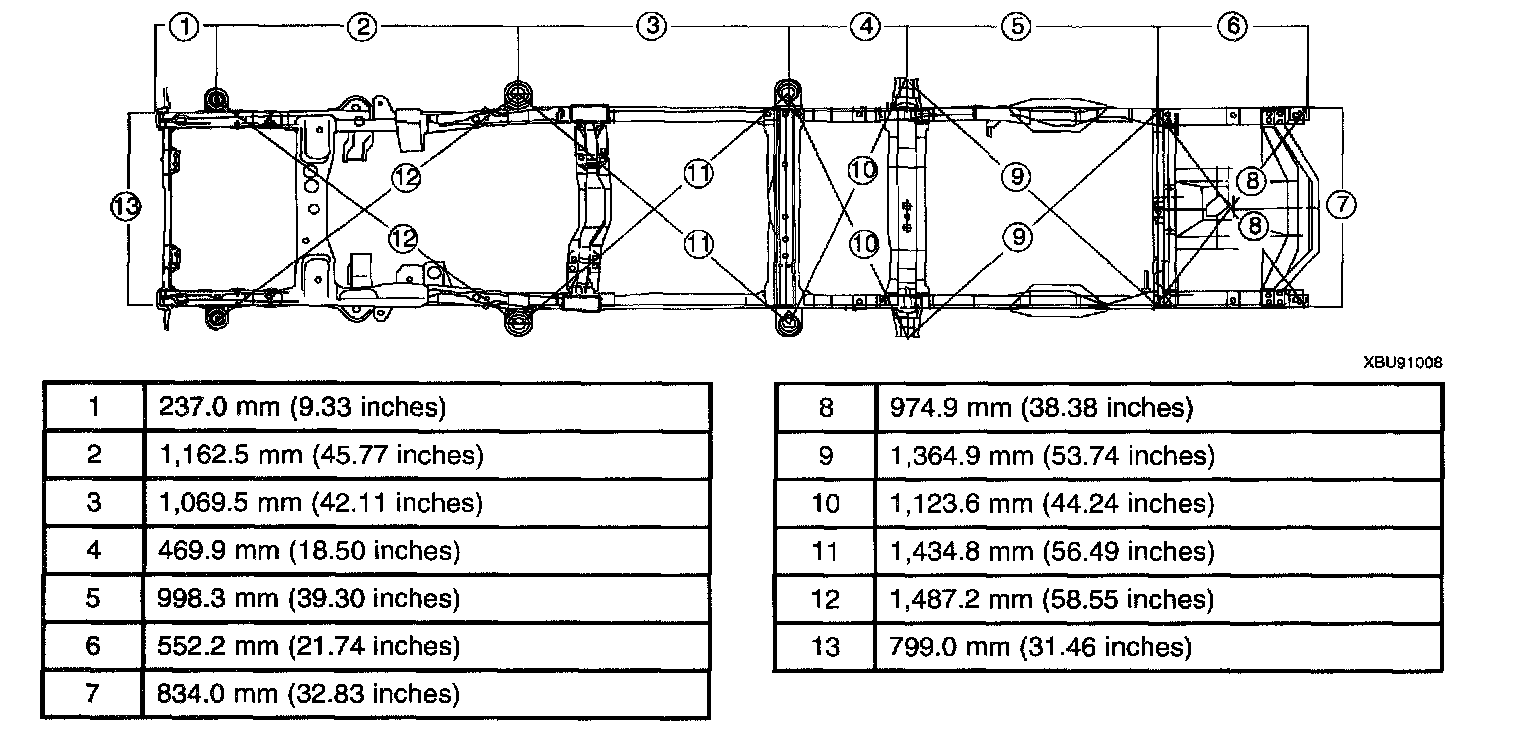

Frame Dimension - Long Wheel Base (4X4):

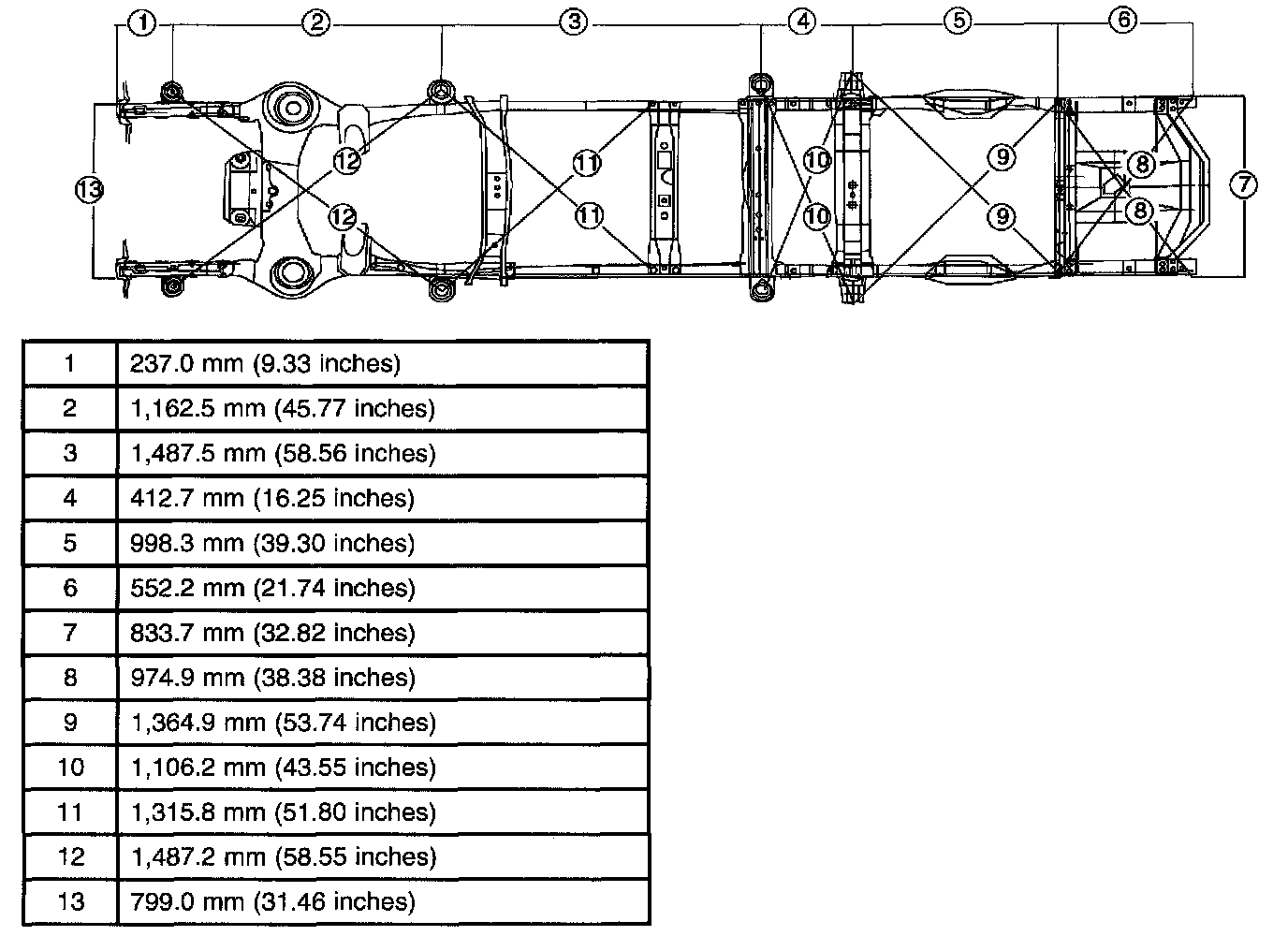

Frame Dimensions - Cab Plus (4X4):

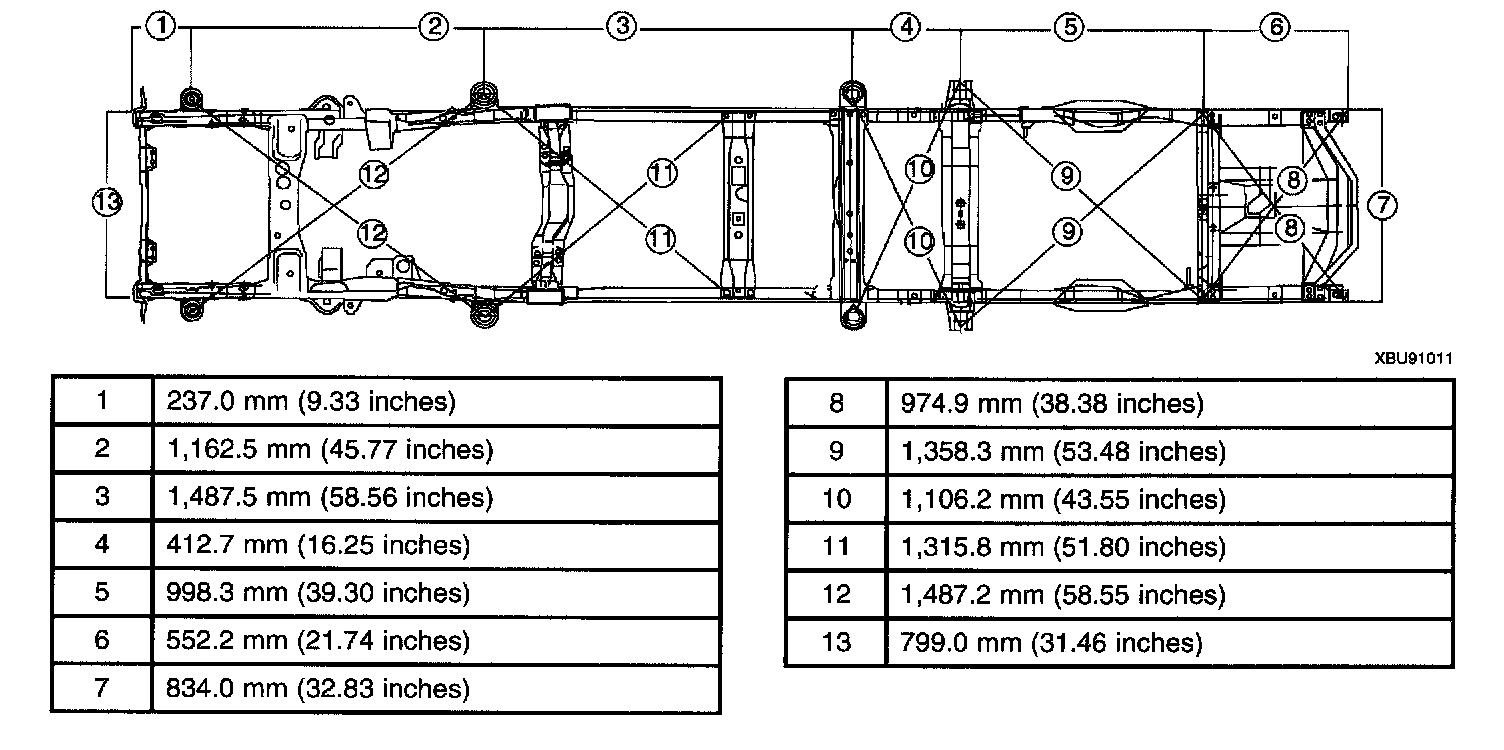

Frame Dimensions - Short Wheel Base (4X2):

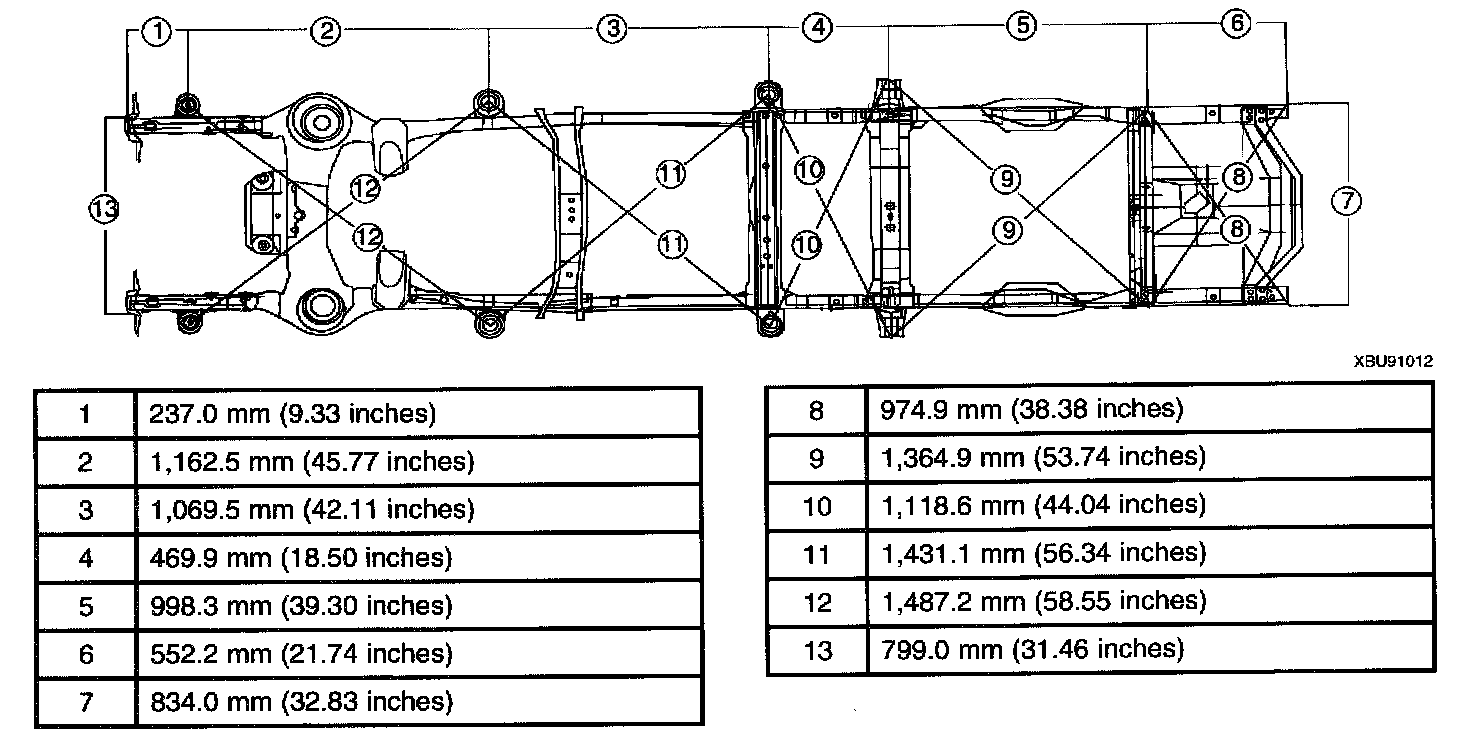

Frame Dimensions - Long Wheel Base (4X2):

Frame Dimensions - Cab Plus (4X2):

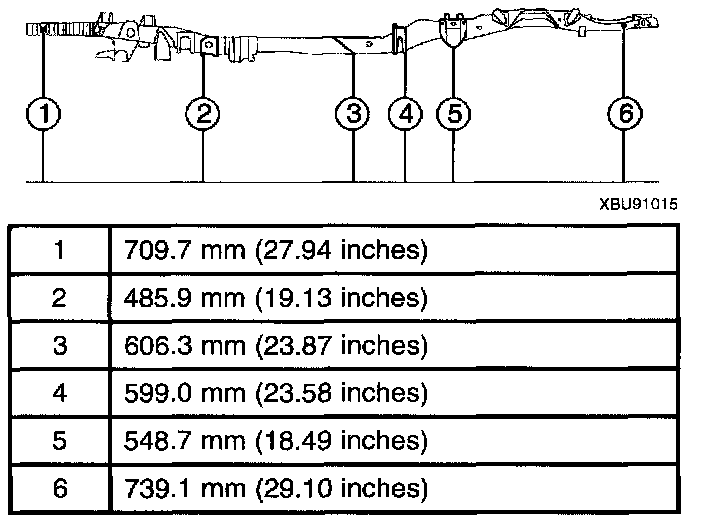

Frame - Short Wheel Base (4X2):

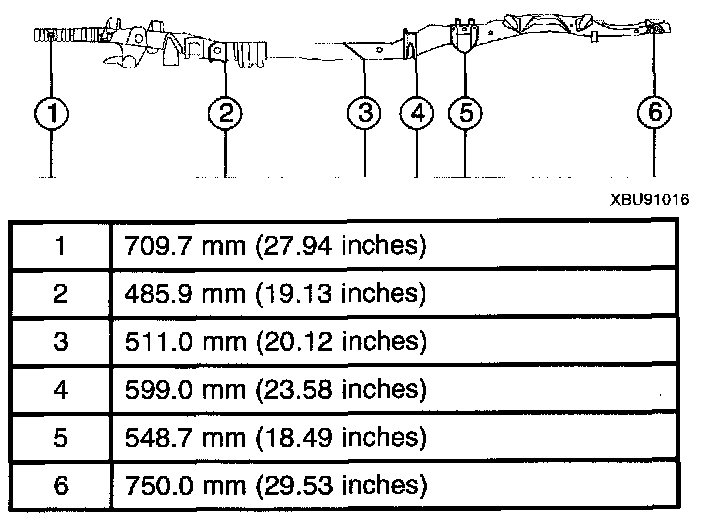

Frame - Long Wheel Base (4X2):

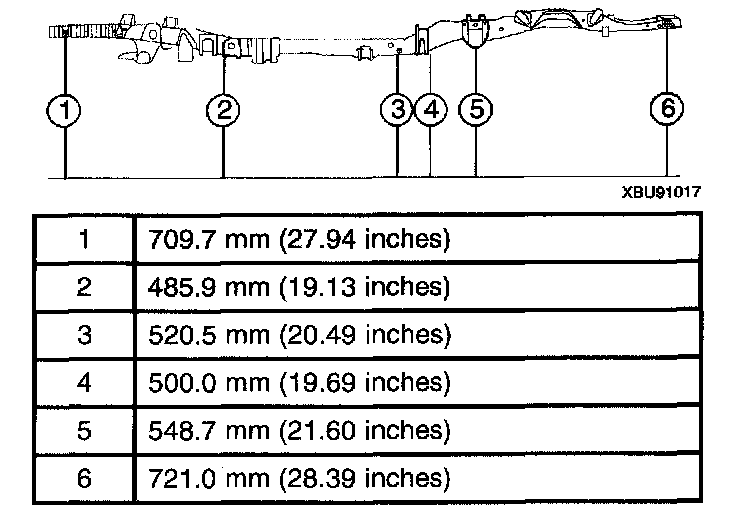

Frame - Cab Plus (4X2):

Frame - Short Wheel Base (4X4):
