Flywheel: Service and Repair

FLYWHEEL REMOVAL / INSTALLATION
Removal
1. Remove the transmission.





2. Remove the clutch, if so equipped.

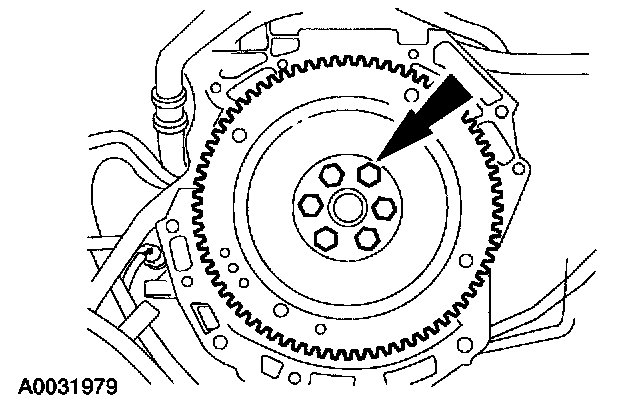

3. Remove the bolts and the flywheel or flexplate.

Installation

Note: Engine balancing is not required. Balance weights should not be installed on the new flywheel.

Note: Special bolts are used for installation. Do not use standard bolts.





1. Inspect the pilot bearing (manual transmission only). Install a new pilot bearing as necessary.

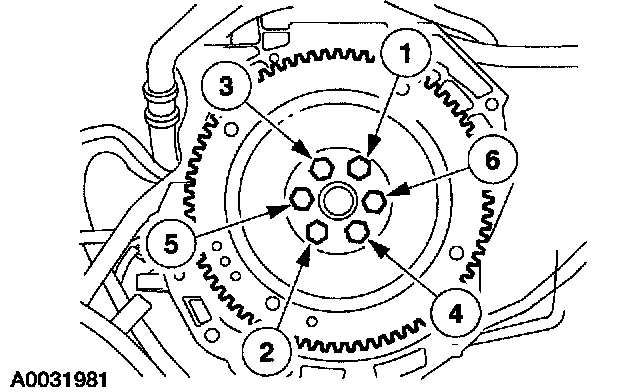

2. Install the flywheel or flexplate. Tighten the bolts in the sequence shown in three stages.
1. Stage 1: Tighten to 50 Nm (5.1 kgf-m, 37 lbs.).
2. Stage 2: Tighten to 80 Nm (8.16 kgf-m, 50 lbs.).
3. Stage 3: Tighten to 112 Nm (11.42 kgf-m, 83 lbs.).
3. Install the clutch, if so equipped.
4. Install the transmission.
