Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Mazda Truck
>>
2002
>>
B2300 SE Regular Cab 2WD L4-2.3L VIN D
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Automatic Transmission External Controls Diagnosis
>>
Pinpoint Tests
>>
3: The Transmission Control Switch Is Not Operating Properly
3: The Transmission Control Switch Is Not Operating Properly
PINPOINT TEST 3: THE TRANSMISSION CONTROL SWITCH IS NOT OPERATING PROPERLY

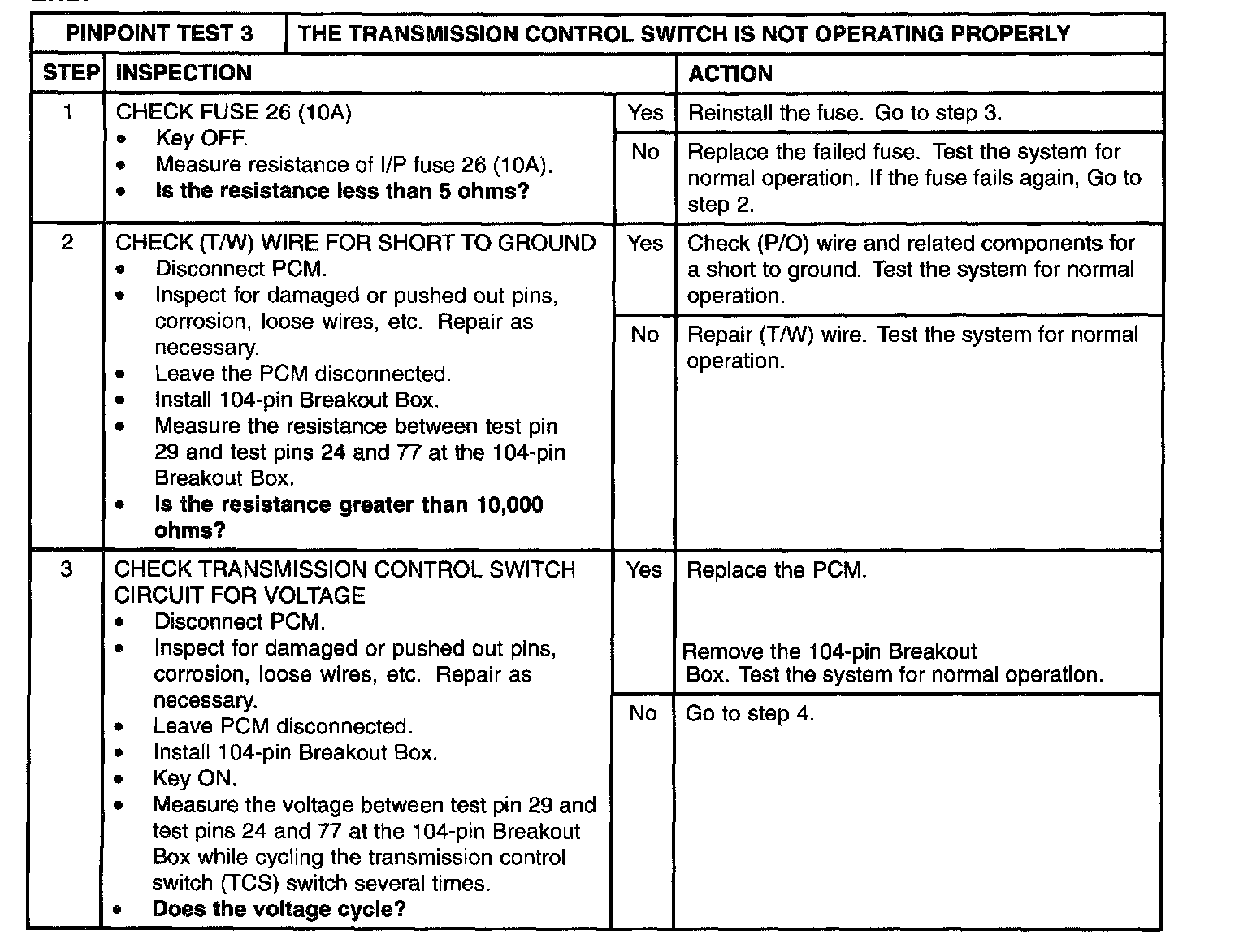

Steps 1 - 3

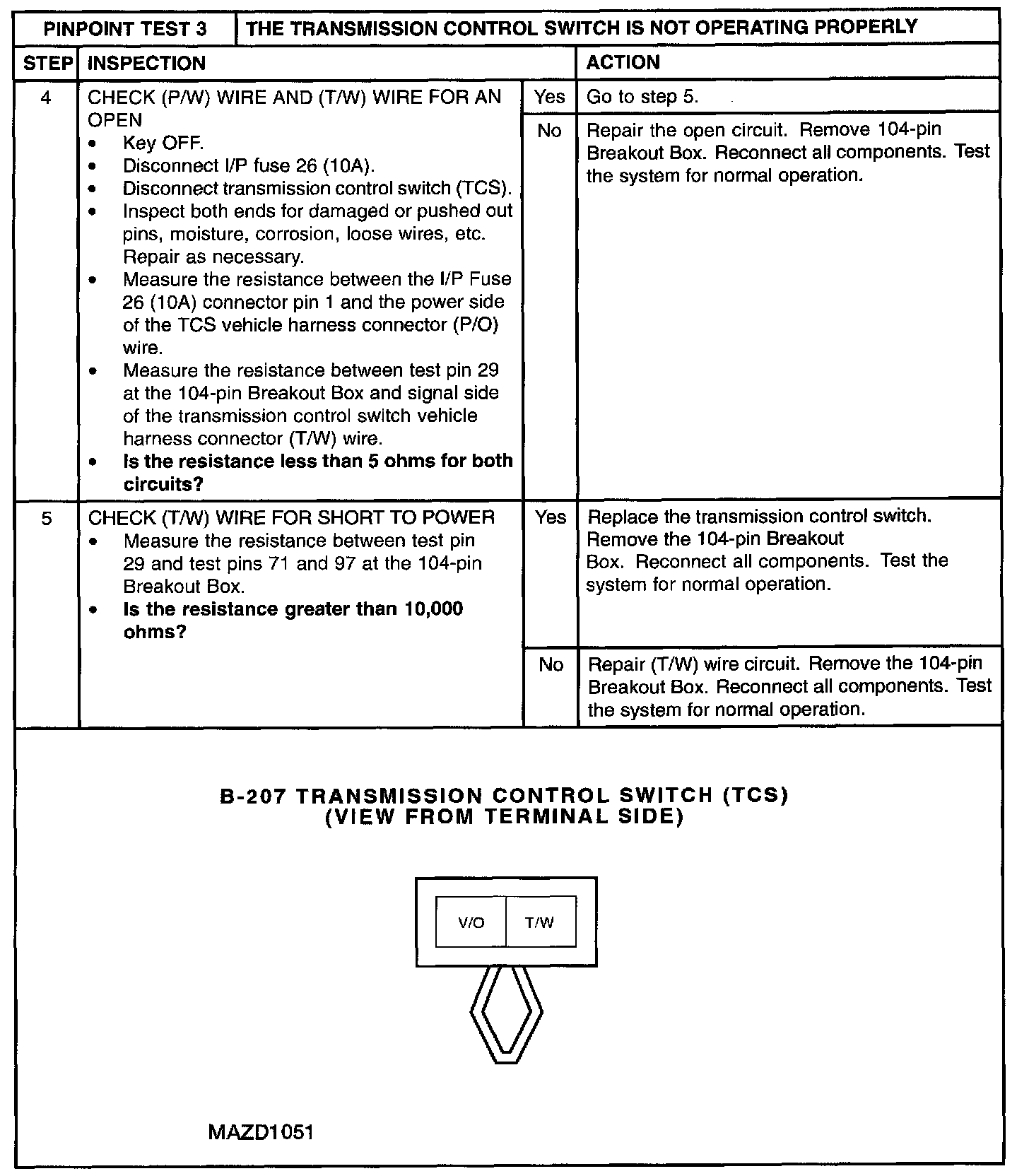

Steps 4 - 5
