Mazda Truck
>>
2002
>>
B2300 SE Regular Cab 2WD L4-2.3L VIN D
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Air Bag Systems
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Diagnosis By Symptom
>>
Control Module Communication
>>
Pinpoint Test 1: Mod. No Resp, WDS Tester - Air Bag Diag. Mon.
Pinpoint Test 1: Mod. No Resp, WDS Tester - Air Bag Diag. Mon.

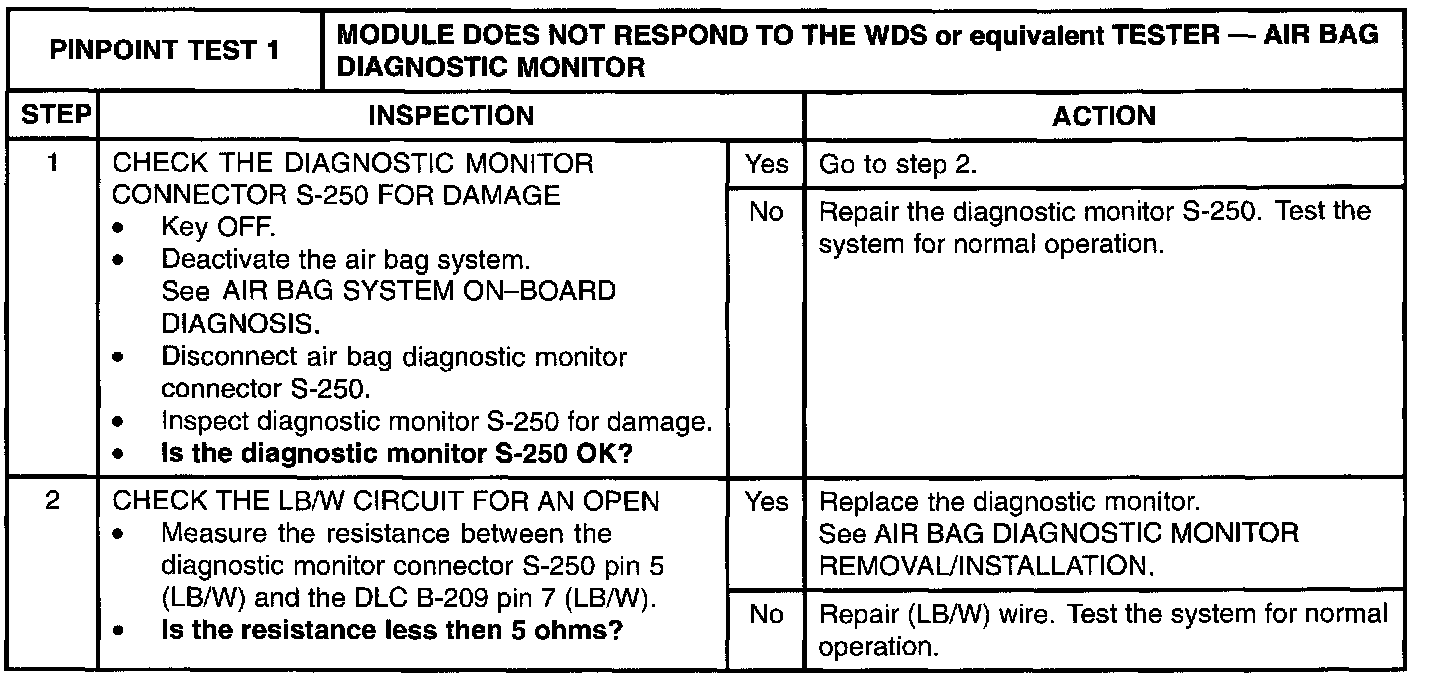

Step 1 - 2:

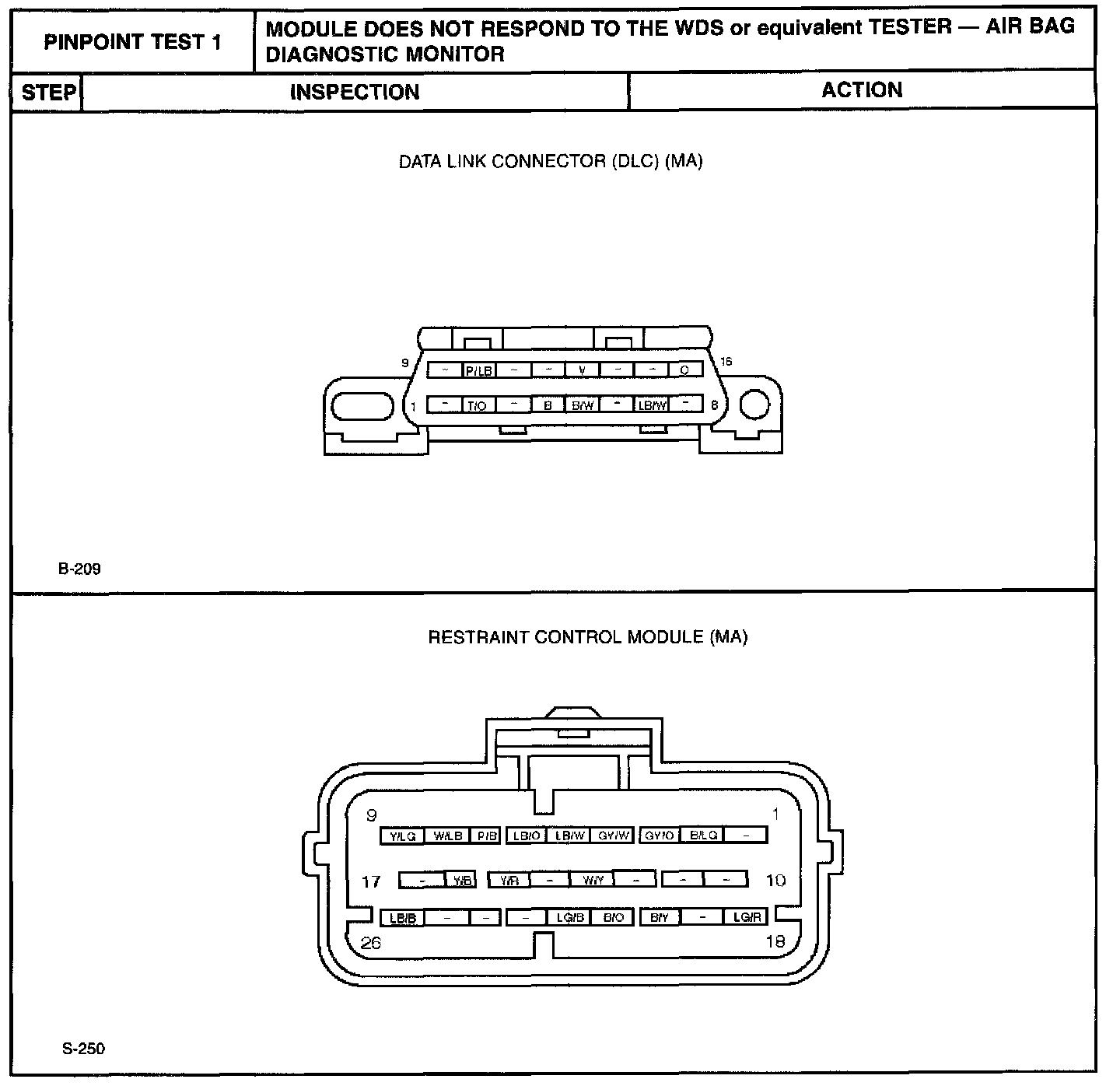

Step 2 (Continued):
