Variable Induction Control Actuator: Service and Repair

INTAKE MANIFOLD RUNNER CONTROL (IMRC)

1. Disconnect the negative battery cable. See BATTERY DISCONNECT.

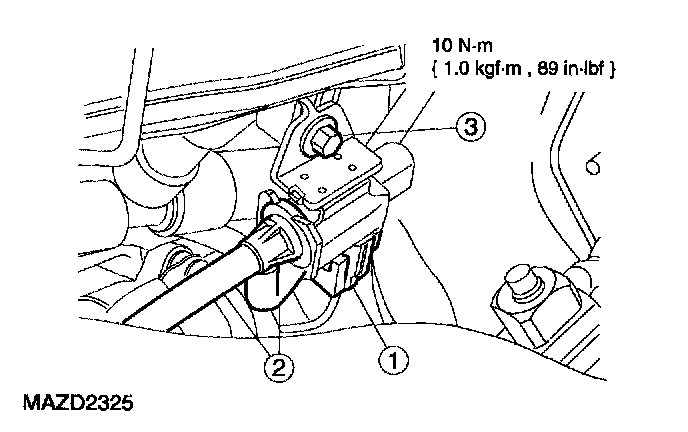

2. Remove the intake manifold runner control actuator.
1. Disconnect the electrical connector.
2. Disconnect the vacuum lines.
3. Remove the bolt and the IMRC actuator.

3. To install, reverse the removal procedure.
