Variable Induction System: Service and Repair

SWIRL CONTROL MONITOR REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

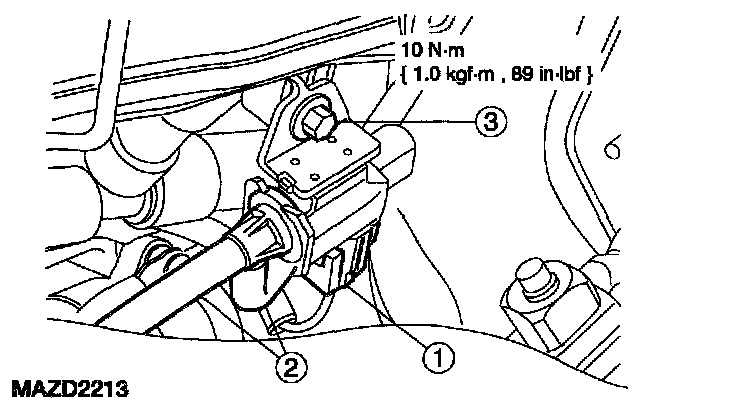

2. Remove the intake manifold runner control actuator.
1. Disconnect the electrical connector.
2. Disconnect the vacuum lines.
3. Remove the bolt and the IMRC actuator.

3. To install, reverse the removal procedure.
