6. Four Wheel Drive Module Wont Respond to the Diagnostic Tool
6. Four Wheel Drive Module Wont Respond to the Diagnostic Tool

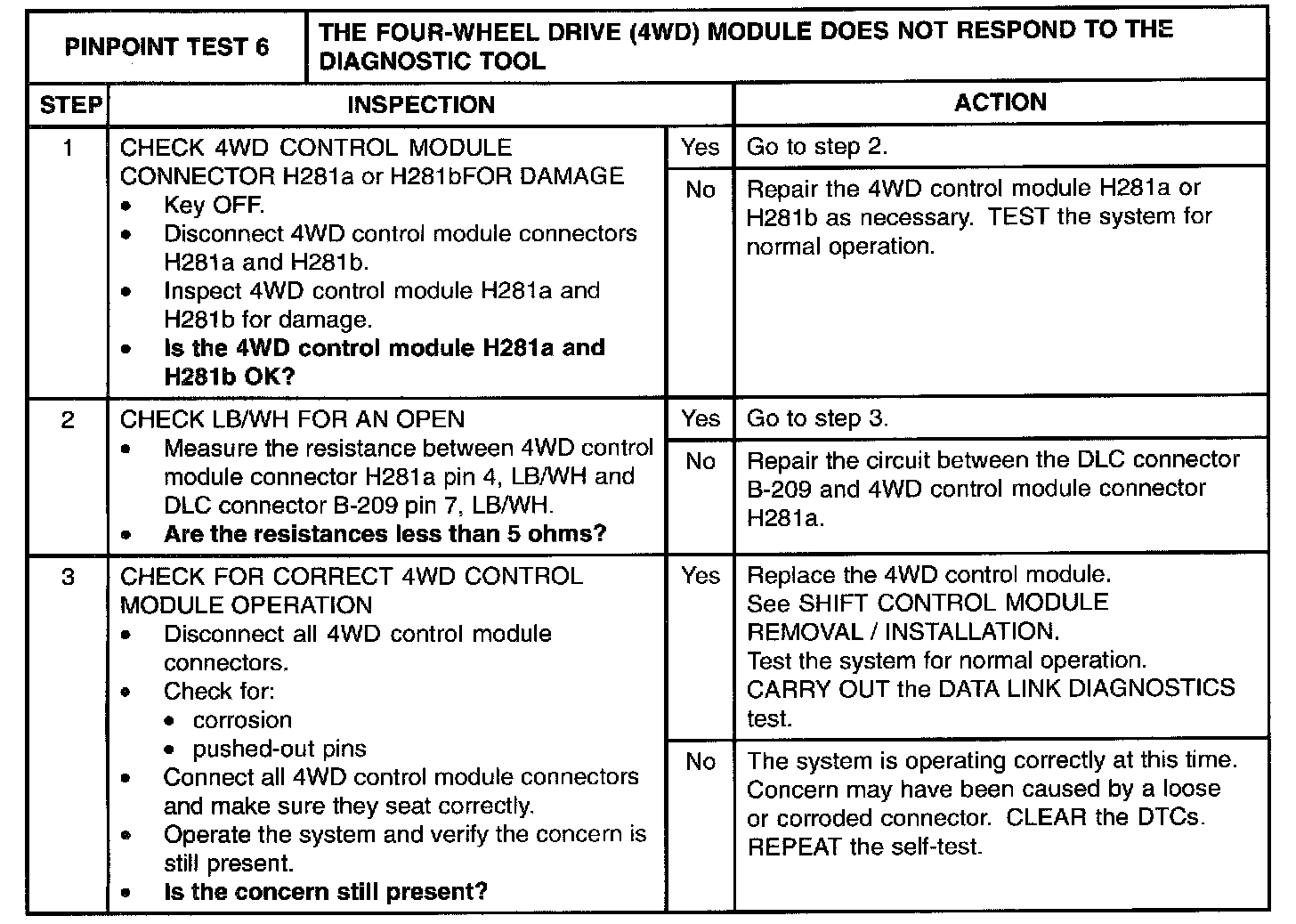

Step 1 - 3:

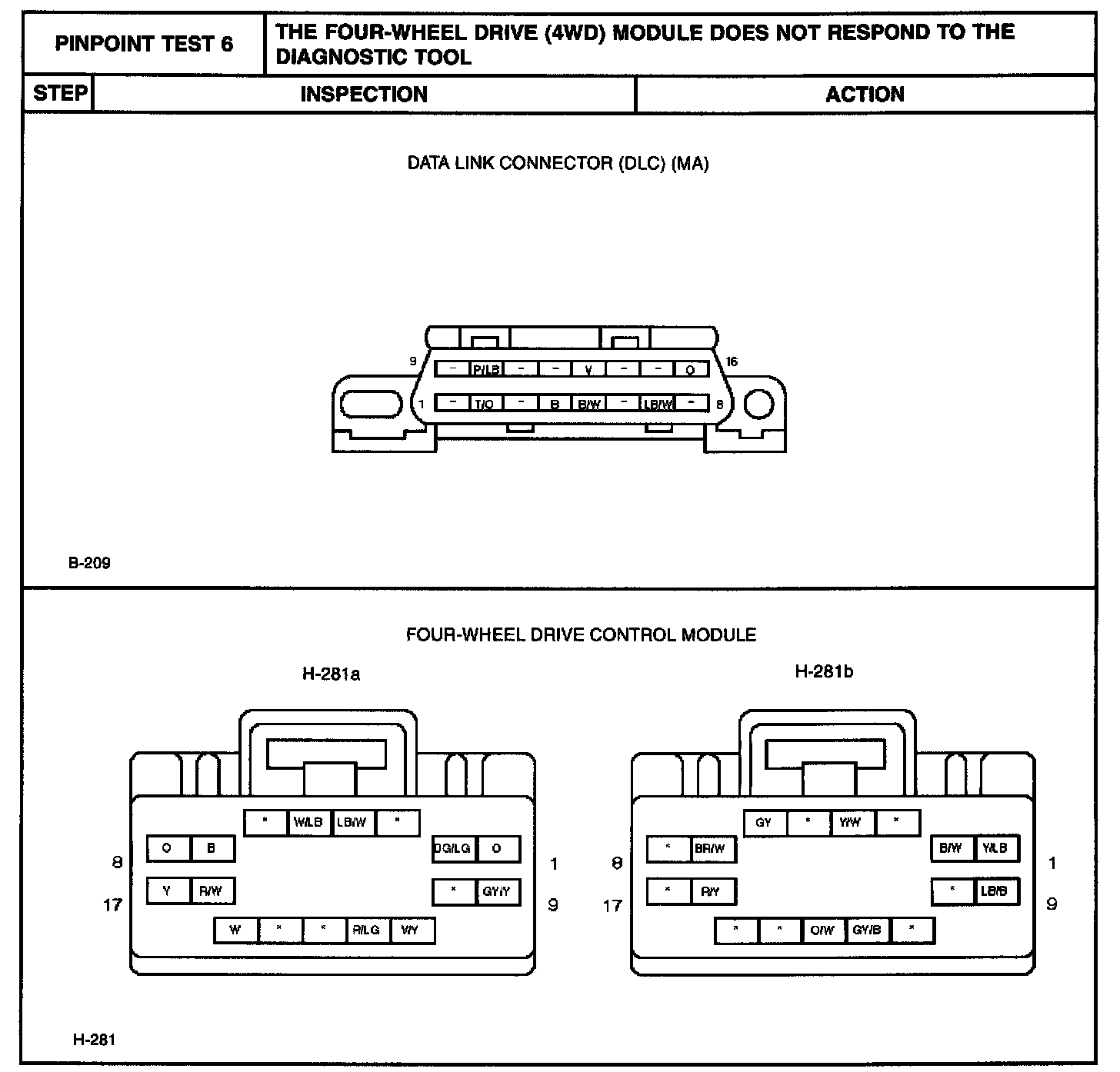

Step 3 Continued:
