Locations
>>
Connector Locations
>>

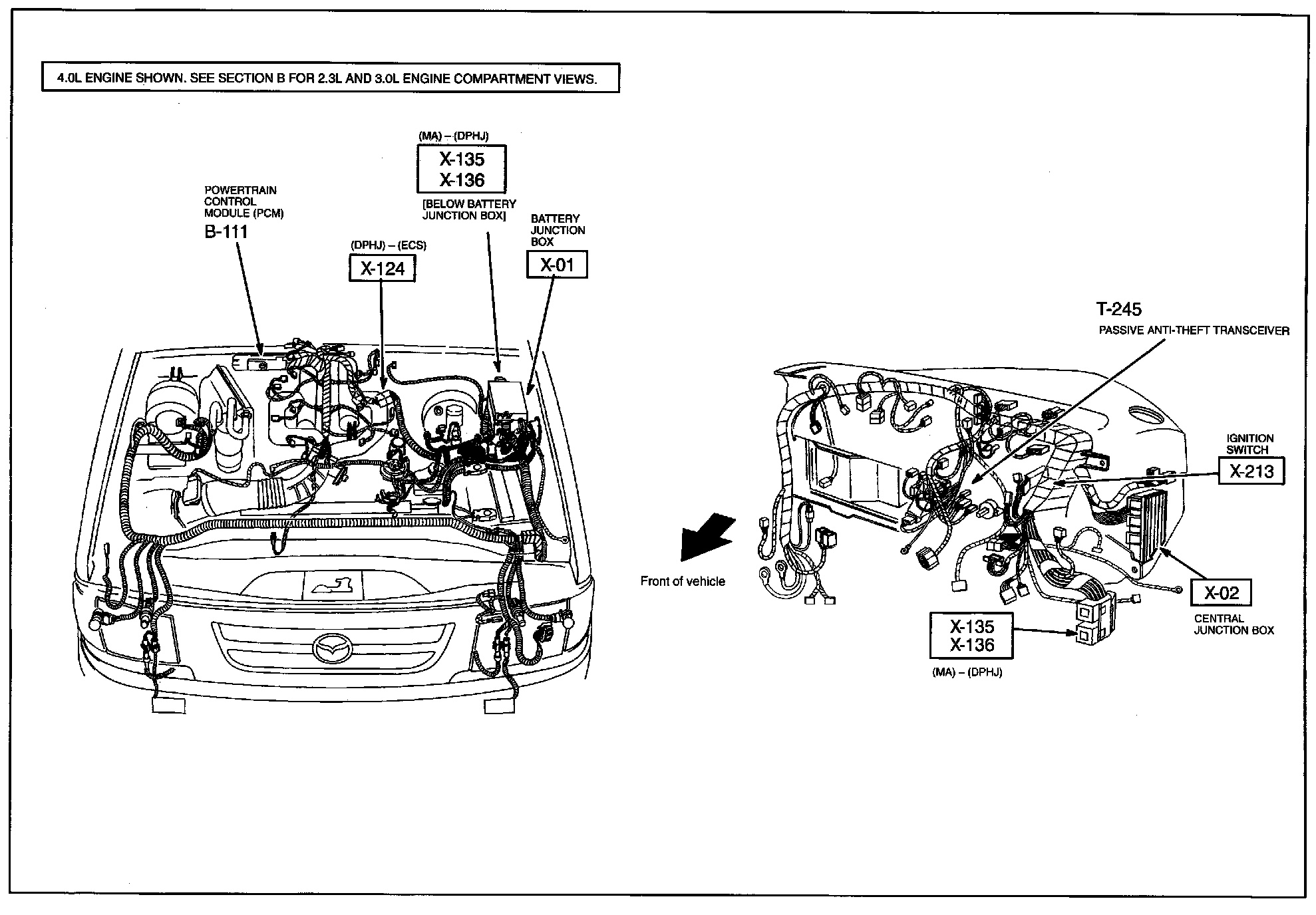

T-4 - Anti-Theft-Passive Anti-Theft System (PATS)
T-4 - Anti-Theft-Passive Anti-Theft System (PATS)
T-4 - Anti-Theft - Passive Anti-Theft System (PATS) Harness / Connector Symbols:
