Home >> Mazda Truck >> 2002 >> B2300 SE Regular Cab 2WD L4-2.3L VIN D >> Repair and Diagnosis >> Lighting and Horns >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Test 8

Pinpoint Test 8

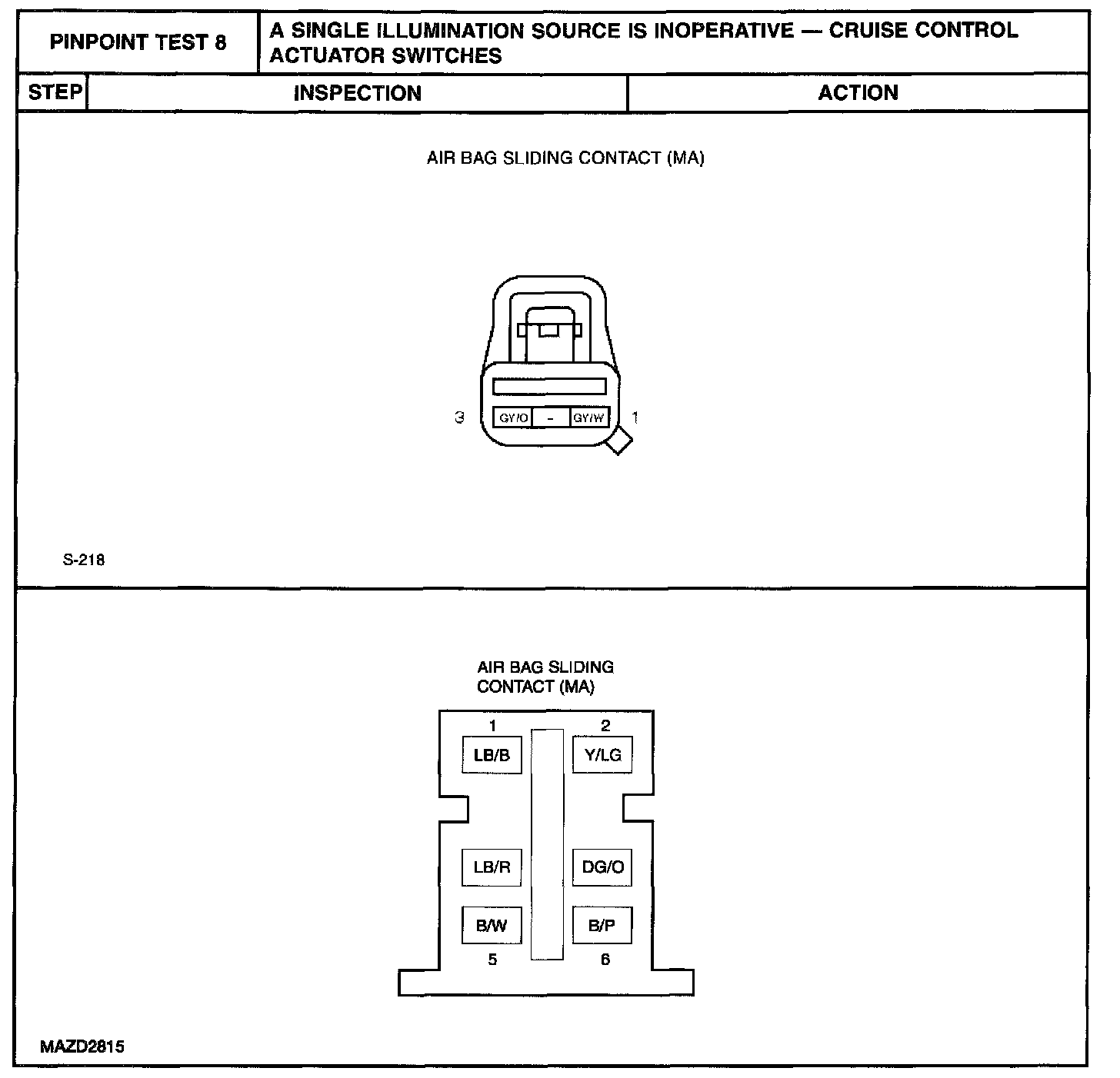

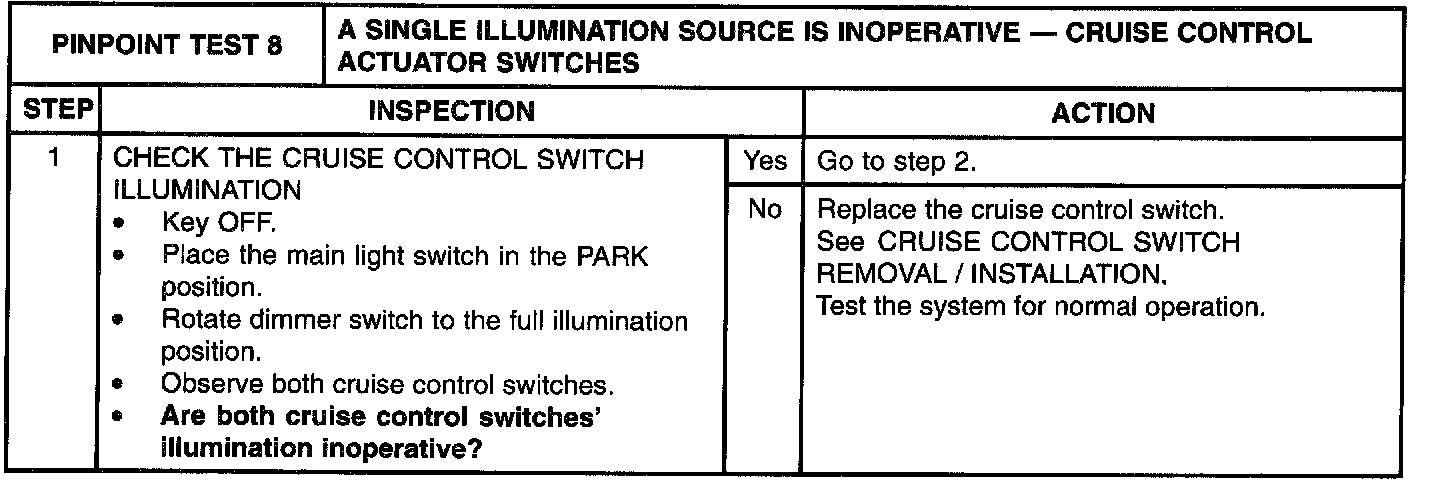

Step 1:

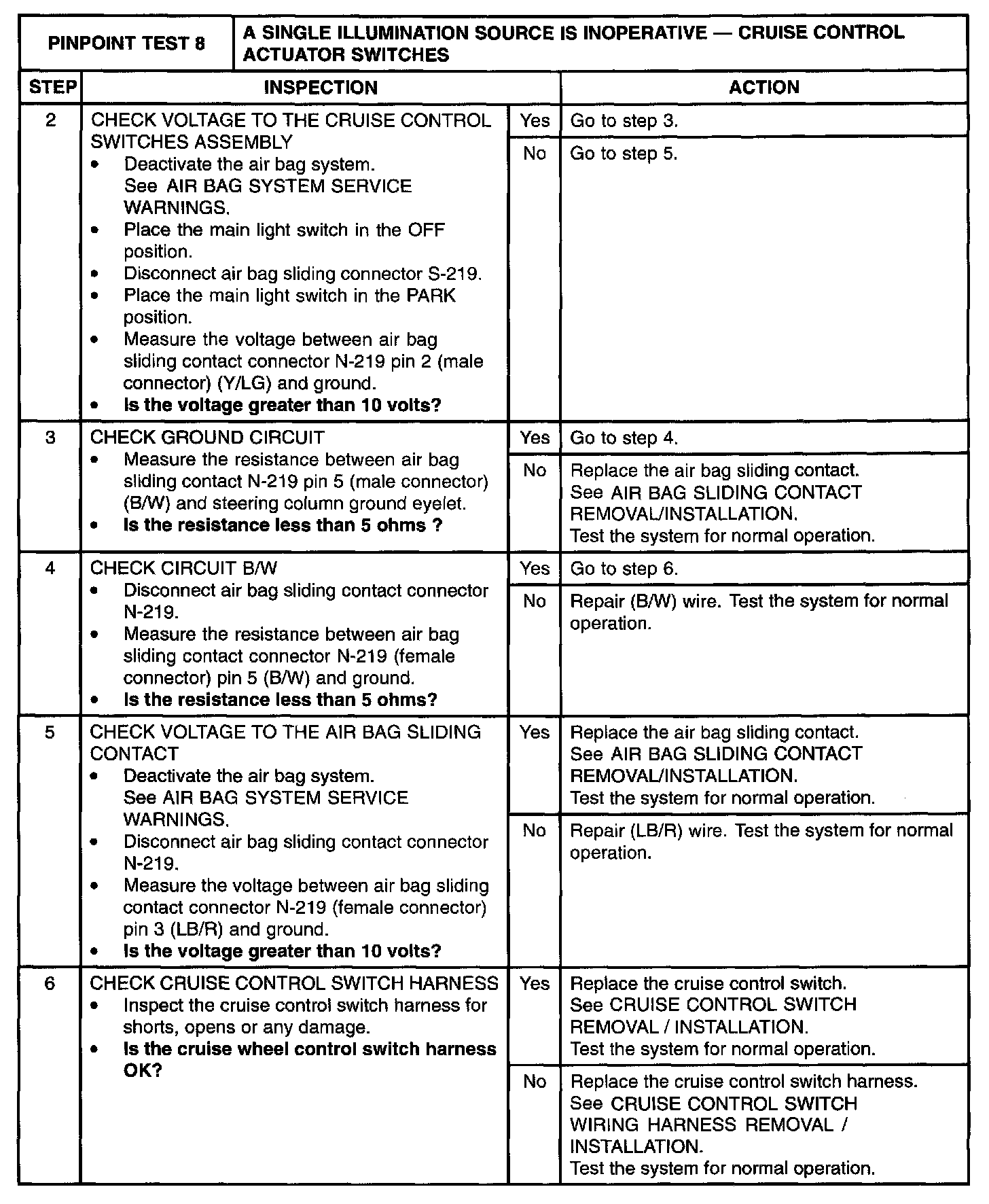

Step 2 - 6:



Step 6 Continued:
