Curiosii for ever!: Car repair manuals for everyone.
Home >> Mazda Truck >> 2002 >> B2300 SE Regular Cab 2WD L4-2.3L VIN D >> Repair and Diagnosis >> Lighting and Horns >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Test 1

Pinpoint Test 1

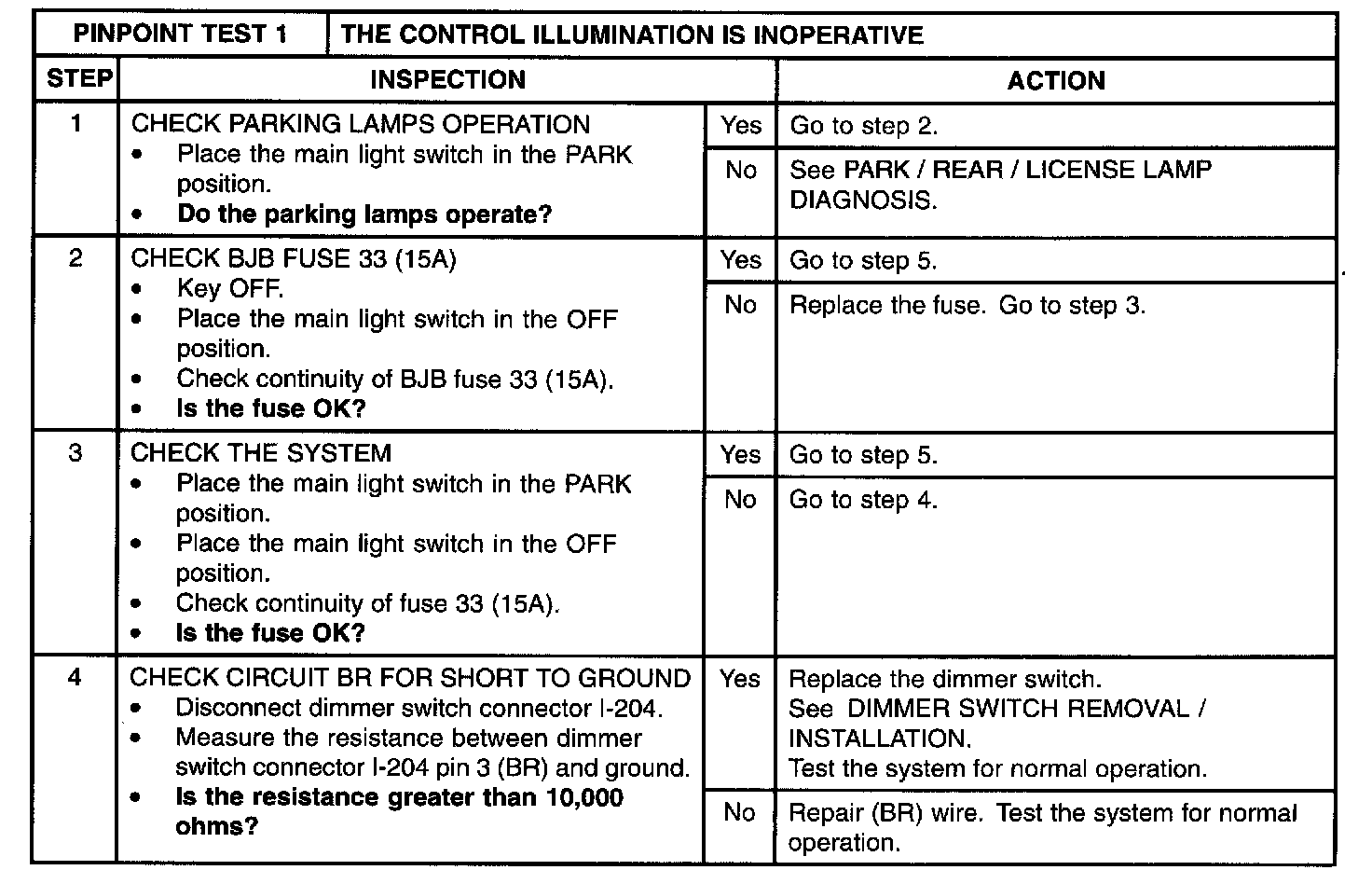

Step 1 - 4:

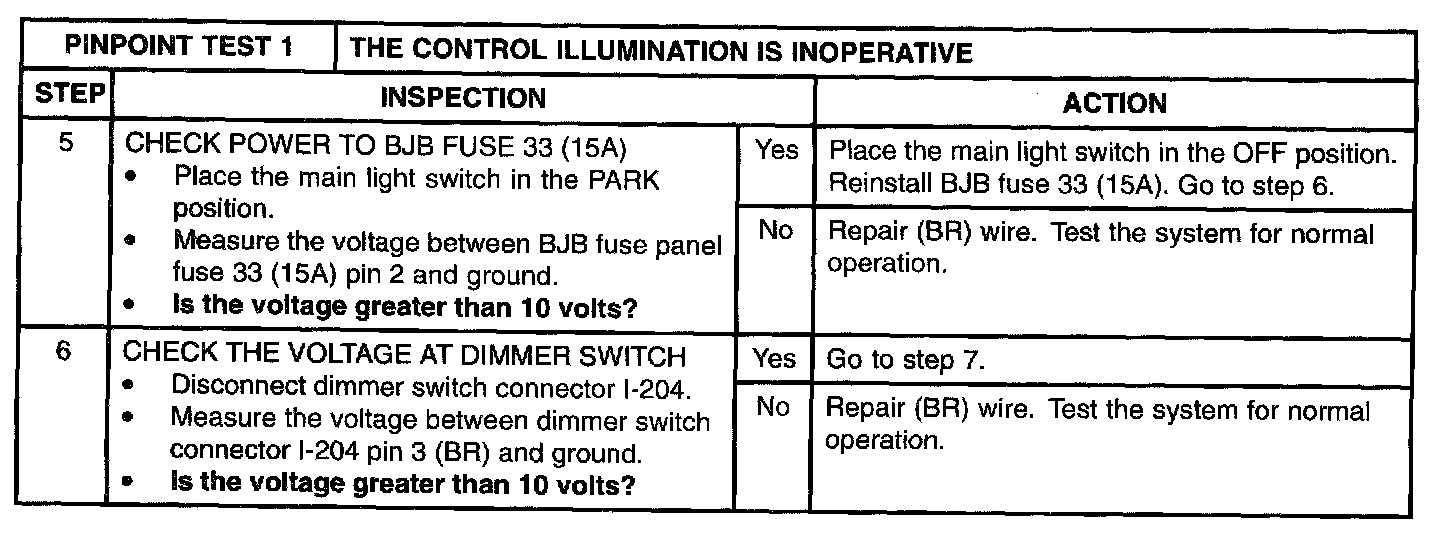

Step 5 - 6:

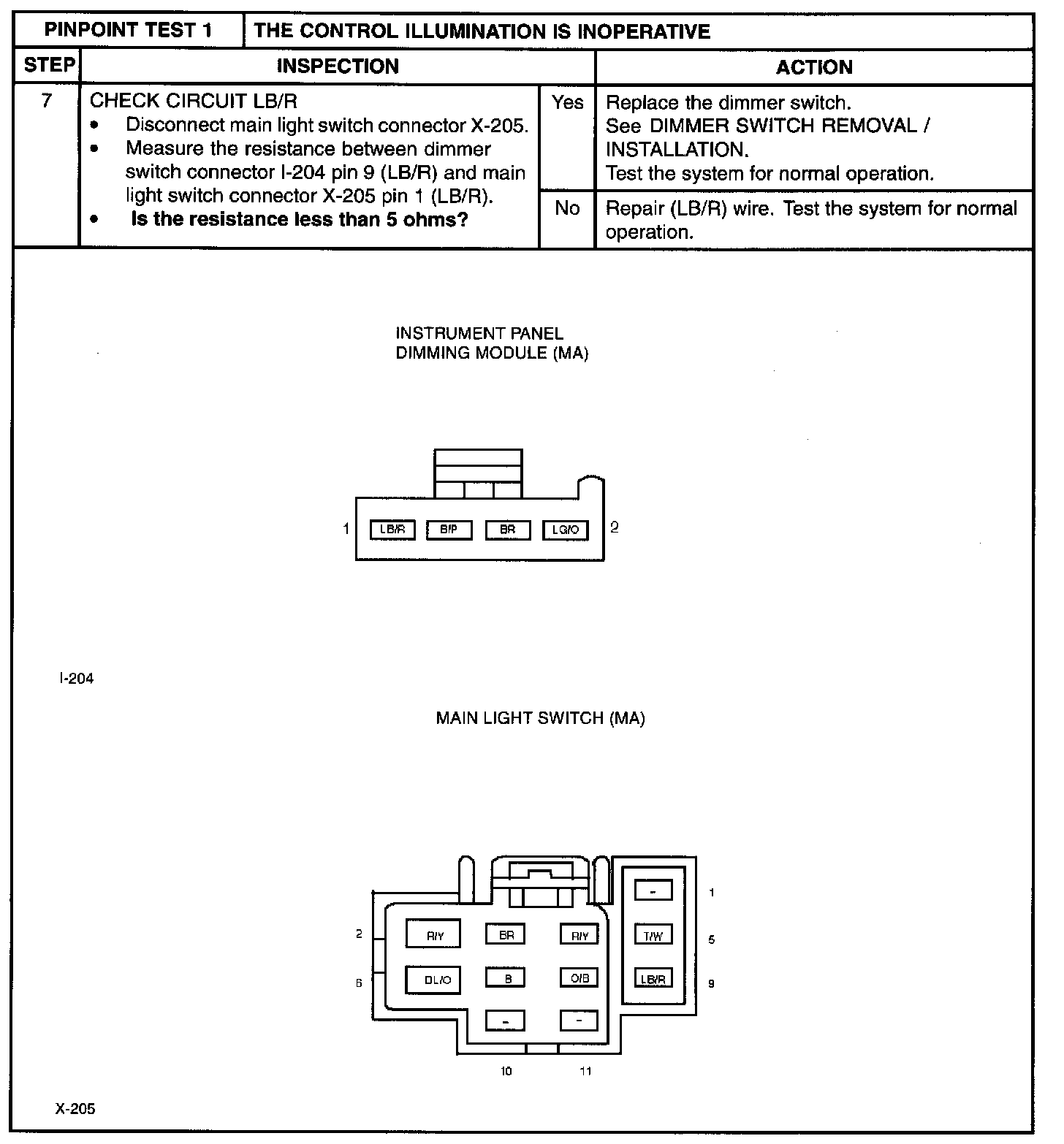

Step 7:
