Home >> Mazda Truck >> 2002 >> B2300 SE Regular Cab 2WD L4-2.3L VIN D >> Repair and Diagnosis >> Lighting and Horns >> Backup Lamp >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Test 1

Pinpoint Test 1

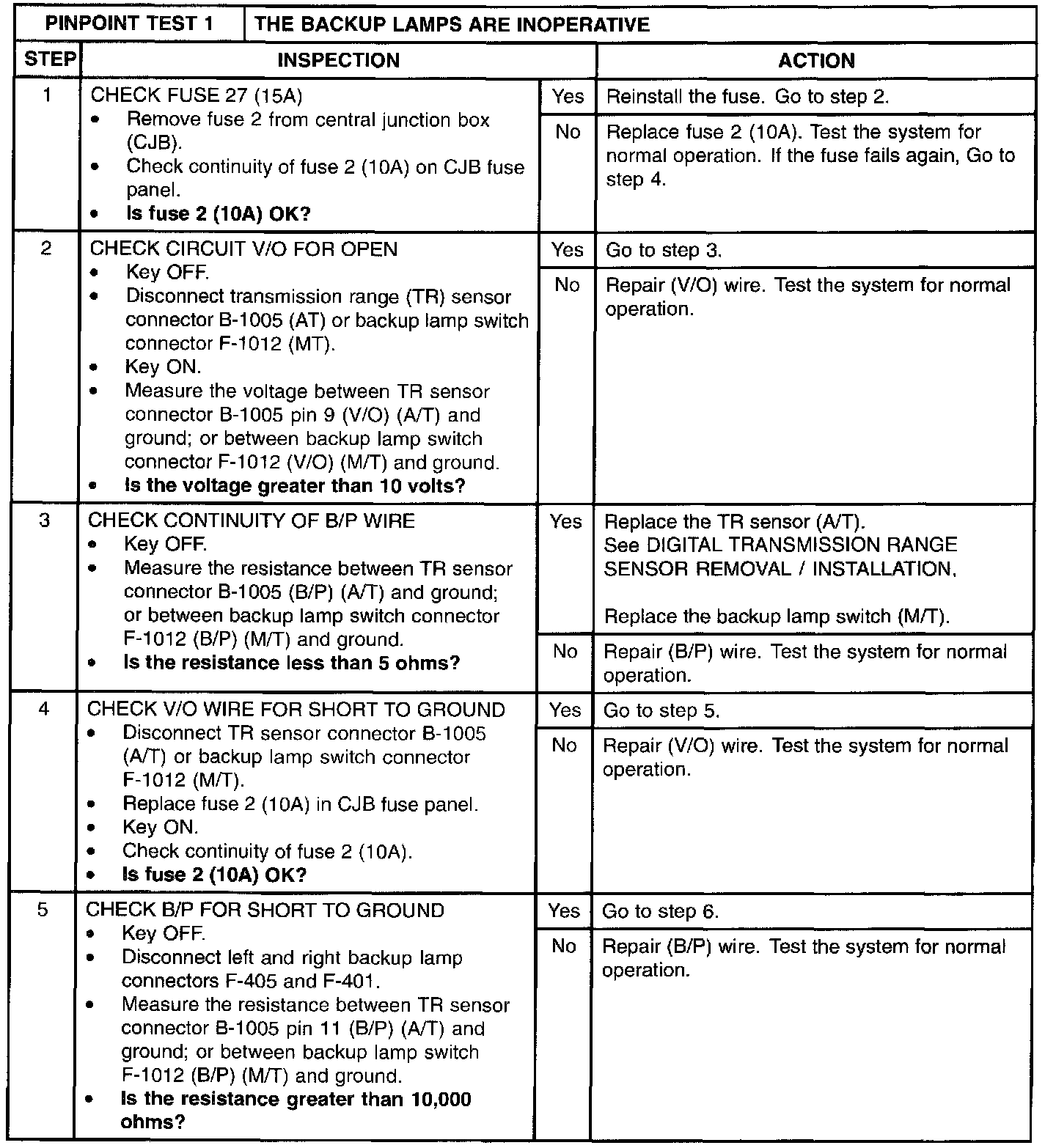

Step 1 - 5:

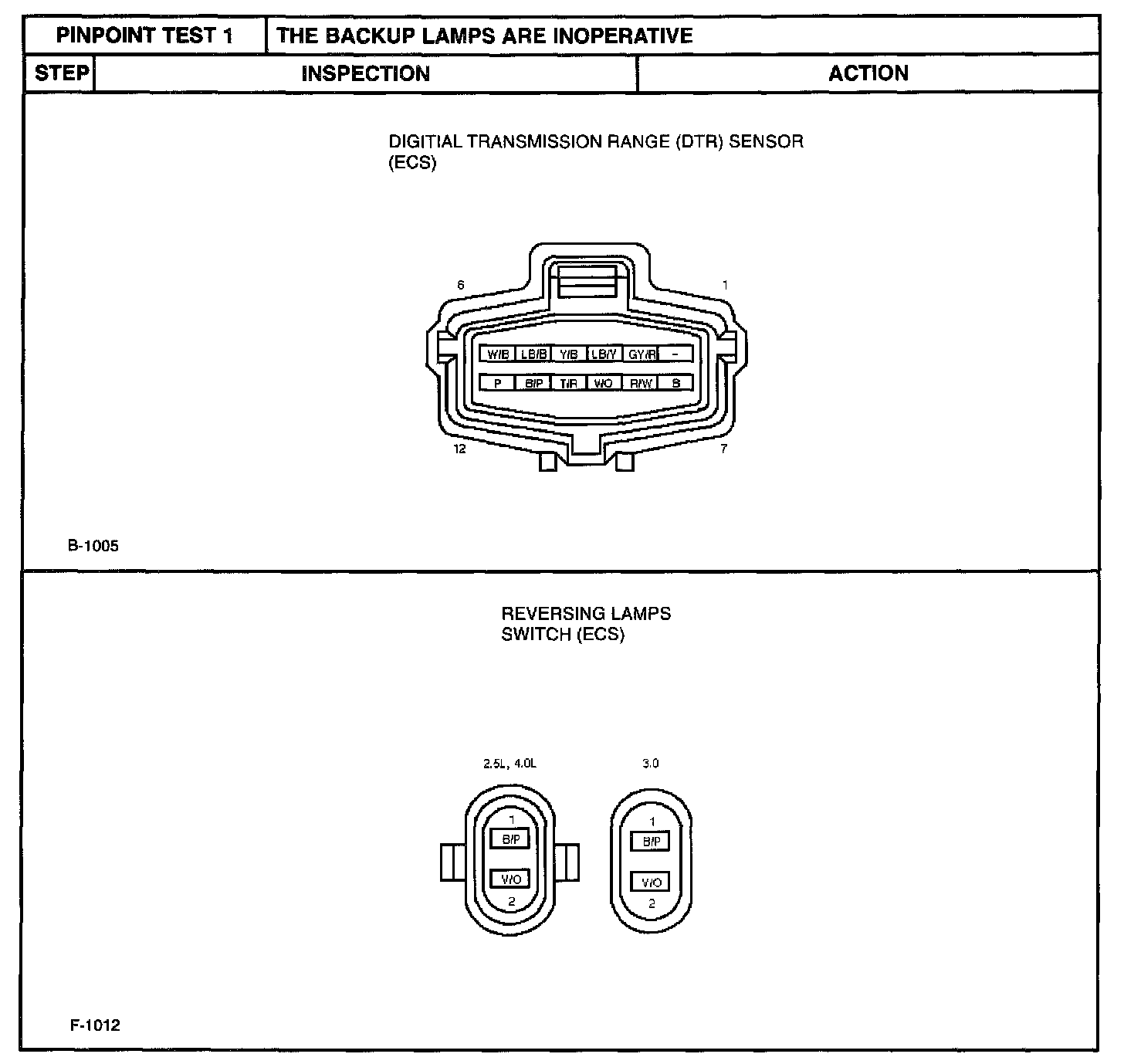

Step 6:

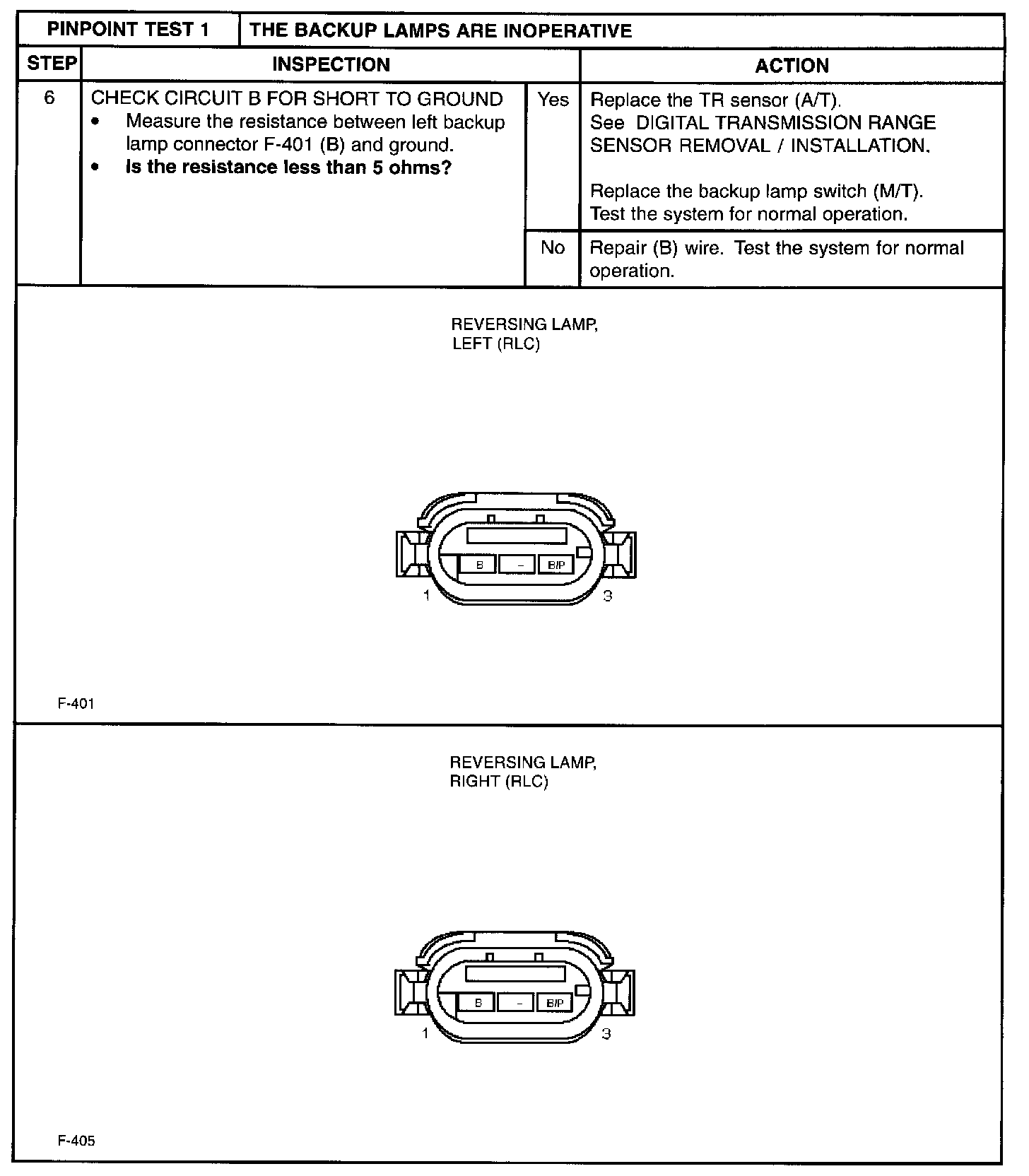

Step 6 Continued:
