Water Pump: Service and Repair

WATER PUMP REMOVAL / INSTALLATION





1. Drain the cooling system.





2. Remove the drive belt.

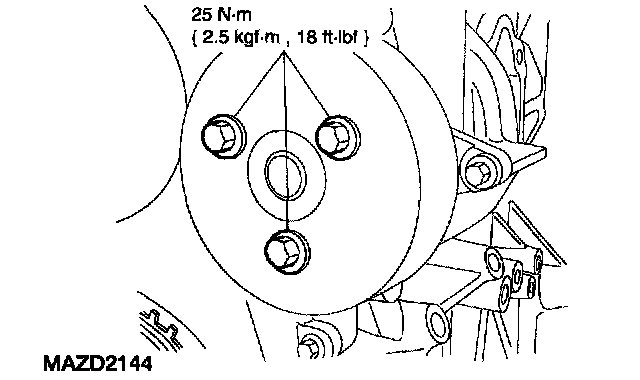

3. Remove the bolts and the water pump pulley.

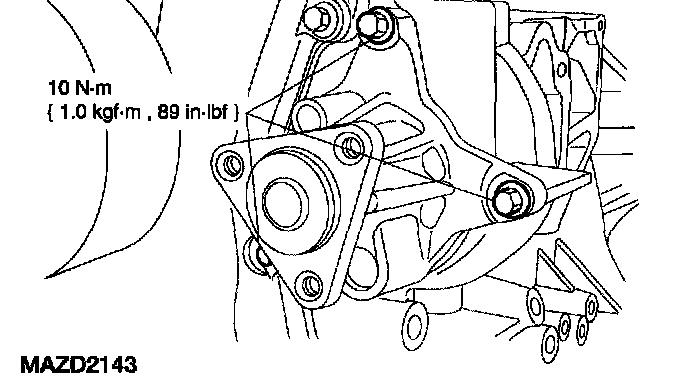

4. Remove the bolts and the water pump.

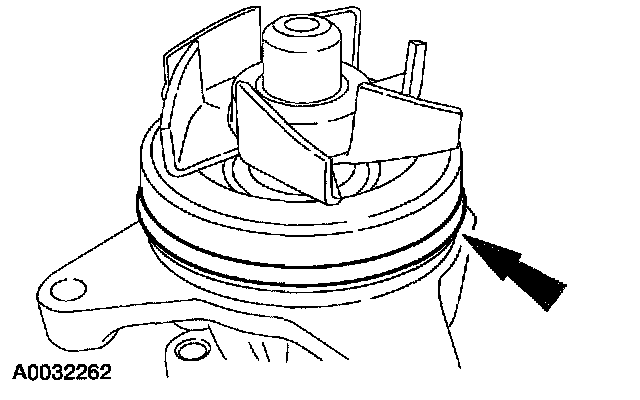

Note: Lubricate the water pump O-ring with MERPOL.

5. To install, reverse the removal procedure.
