Temperature Sensor (Gauge): Service and Repair

WATER TEMPERATURE SENDER UNIT REMOVAL / INSTALLATION
1. Disconnect the negative battery cable.
2. Drain the cooling system.

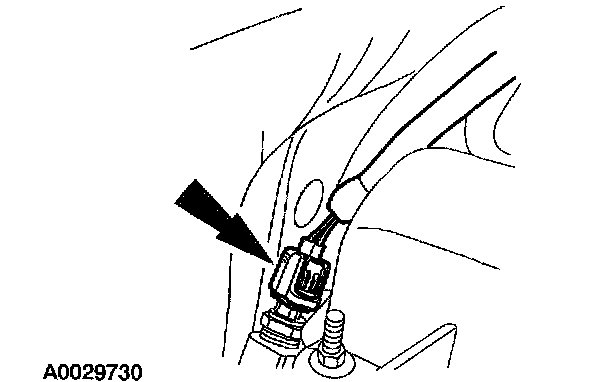

3. Disconnect the electrical connector.

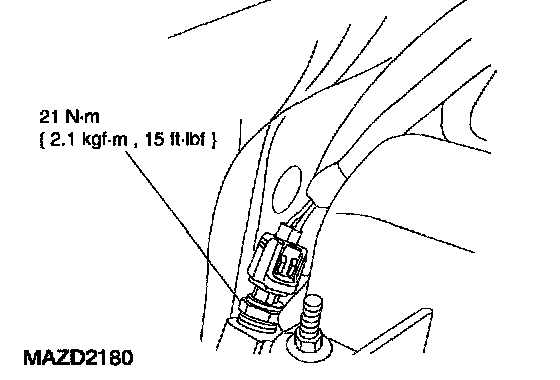

4. Remove the engine coolant temperature sensor.

Note: Coat the threads with pipe thread sealant.

5. To install, reverse the removal procedure.
