System Diagram

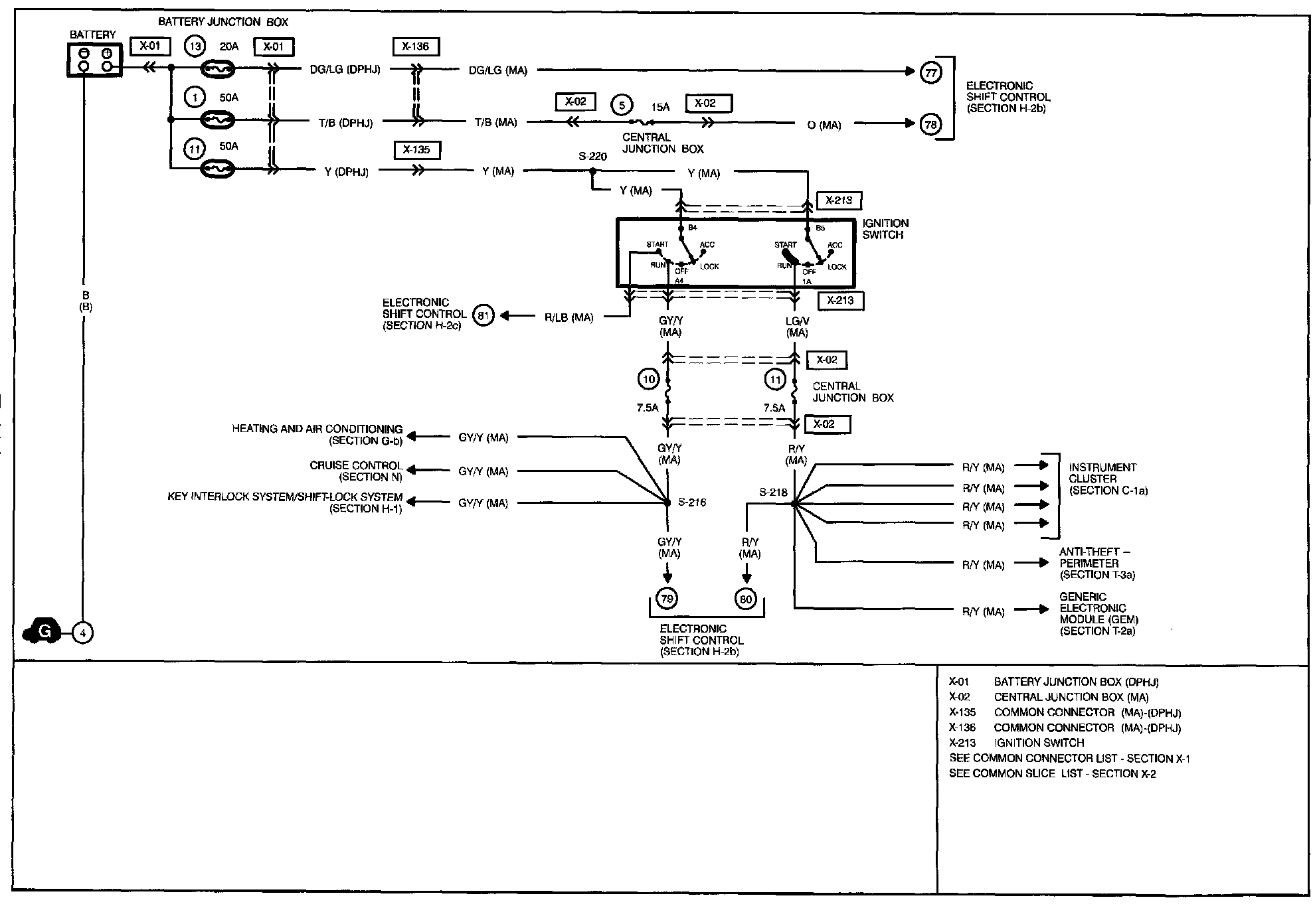

H-2a - Electronic Shift Control Circuit:

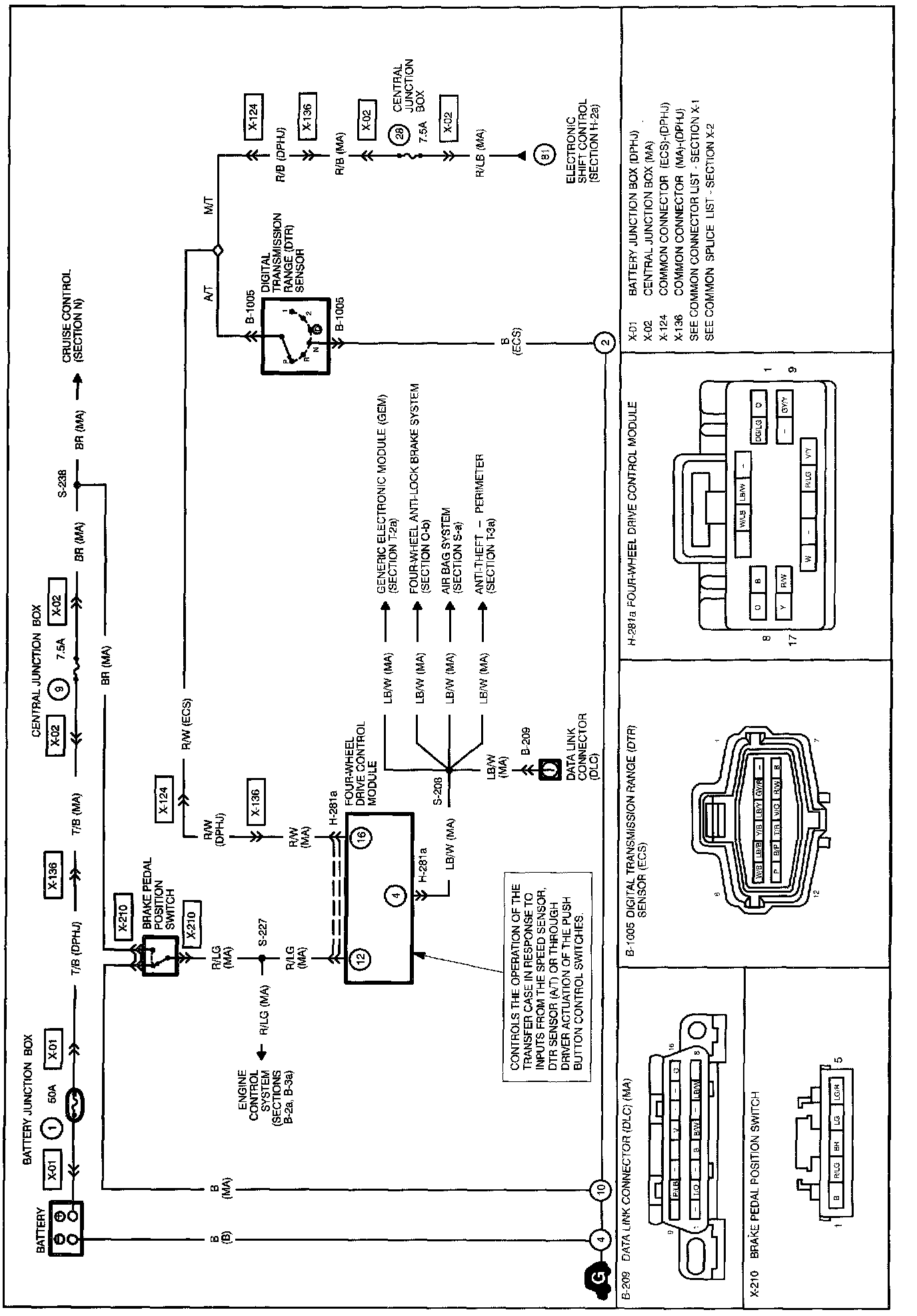

H-2a Electronic Shift Control Circuit:

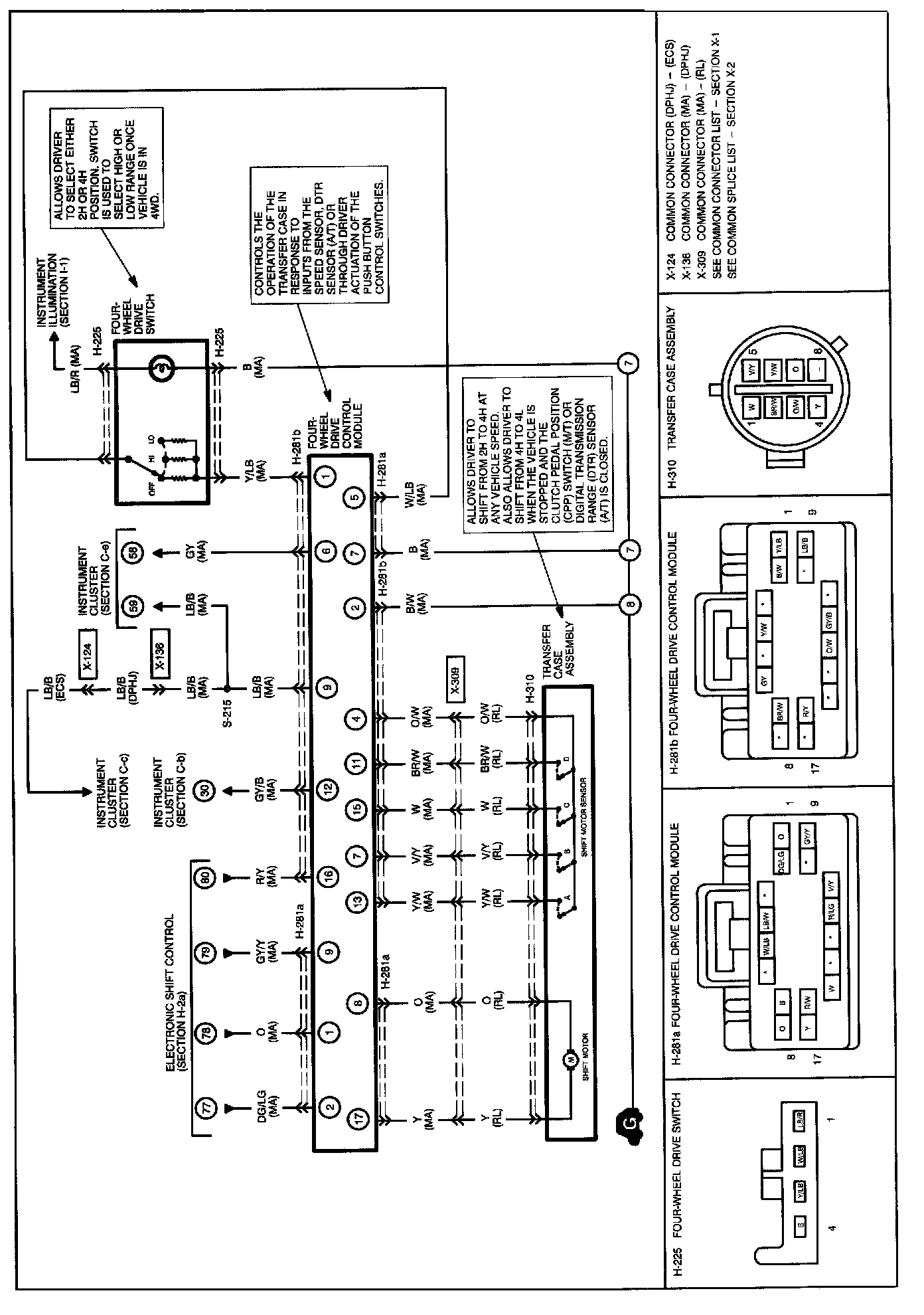

H-2c Electronic Shift Control Circuit:

Wiring Diagrams

NOTE: To view other sections referred to in these diagrams, see Complete Body and Chassis Diagrams by Section (A Thru Z) Electrical Diagrams
