Shift Interlock, A/T

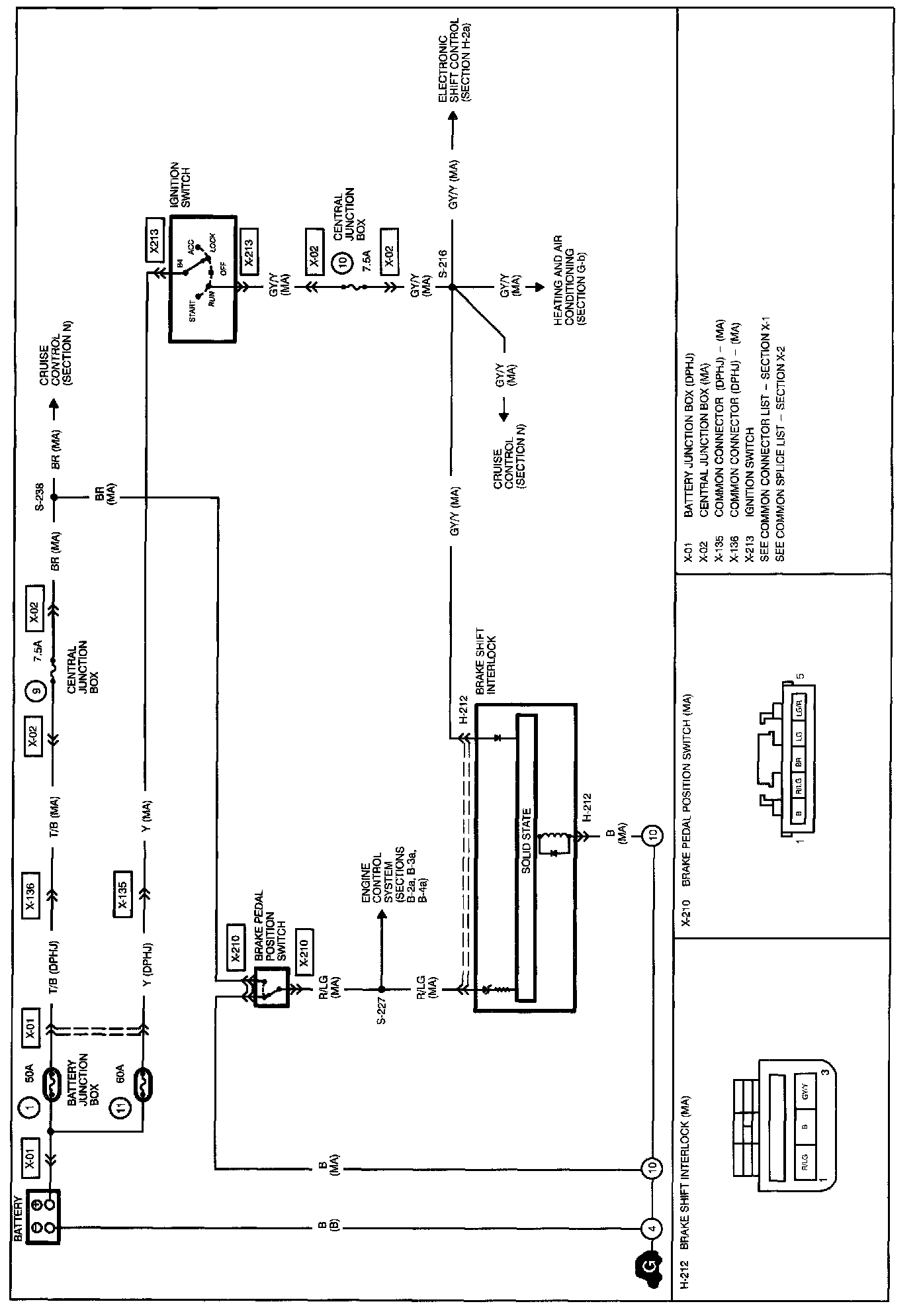

H-1 Key Interlock System/Shift-Lock System Circuit:

Wiring Diagrams

NOTE: To view other sections referred to in these diagrams, see Complete Body and Chassis Diagrams by Section (A Thru Z) Electrical Diagrams
