Powertrain Wiring Harness Connectors
FUEL CHARGING WIRING HARNESS REMOVAL/INSTALLATION1. Disconnect the negative battery cable.
2. Remove the intake manifold.

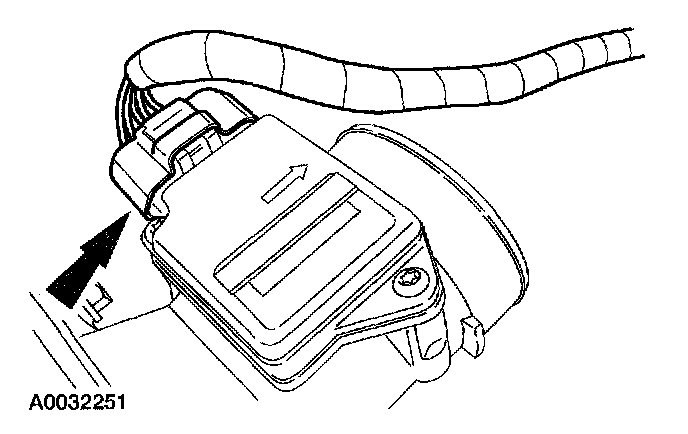

3. Disconnect the mass airflow sensor connector.

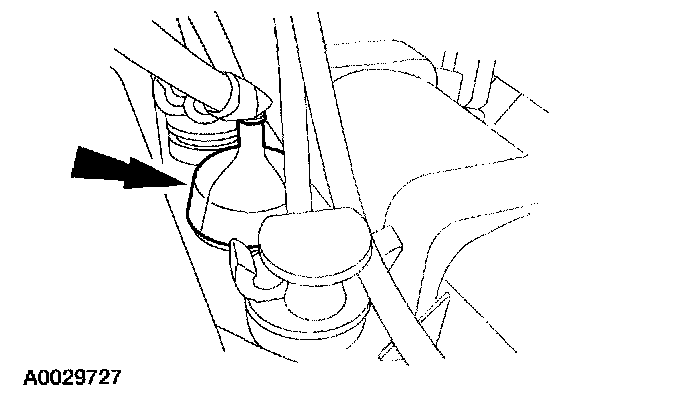

4. Disconnect the right side of the wiring harness from the engine.

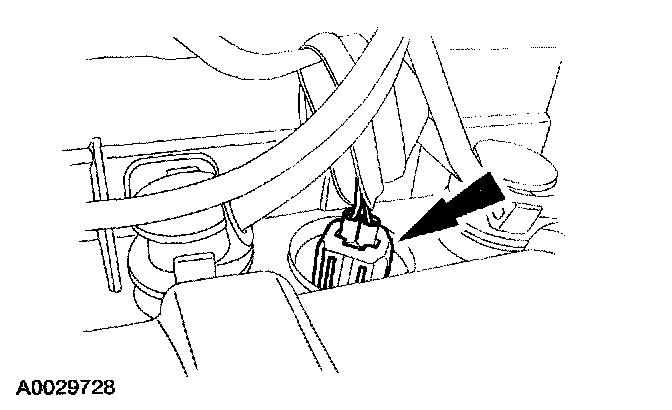

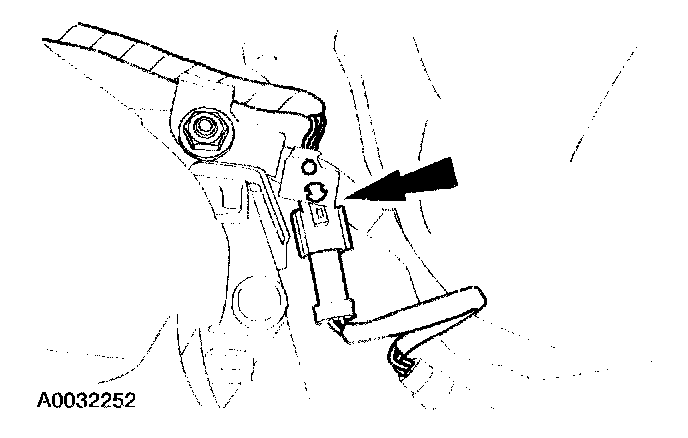

5. Detach the cylinder head temperature (CHT) sensor boot.
6. Disconnect the CHT sensor electrical connector.

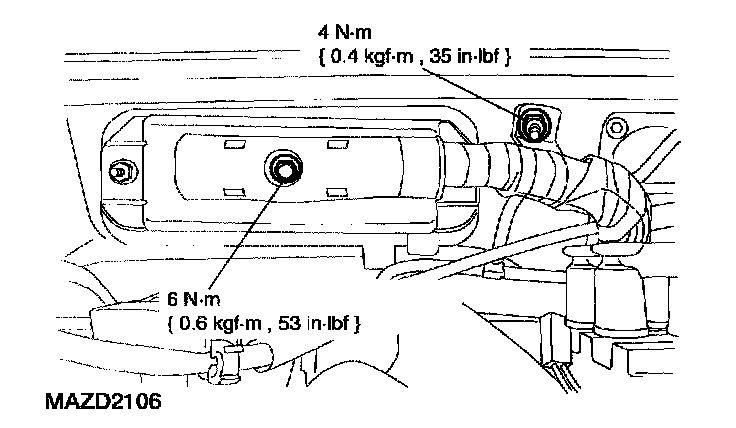

7. Disconnect the PCM connector wiring harness clamp.

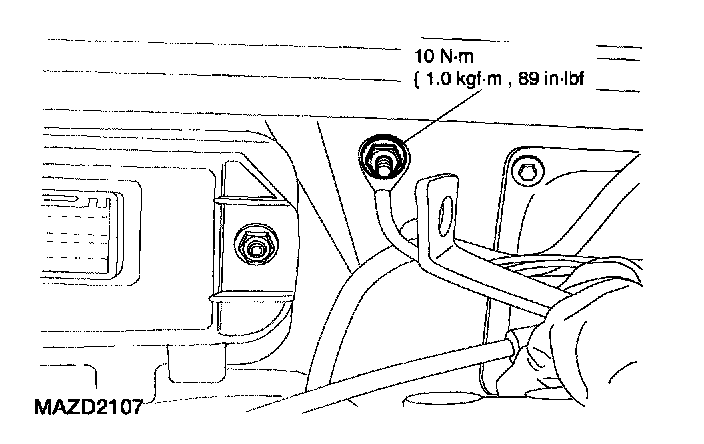

8. Disconnect the PCM ground wire.

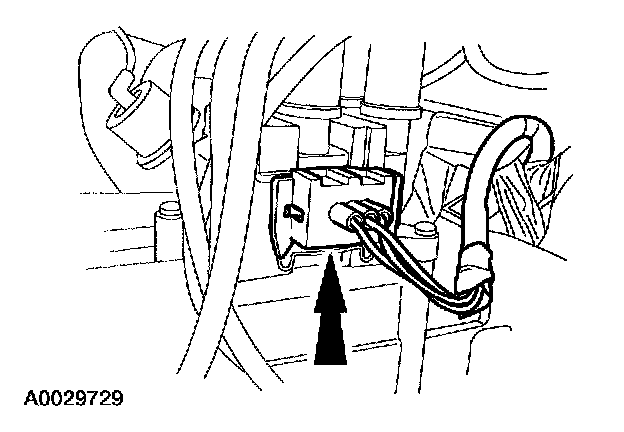

9. Disconnect the ignition coil assembly.
10. Disconnect the water temperature sensor.

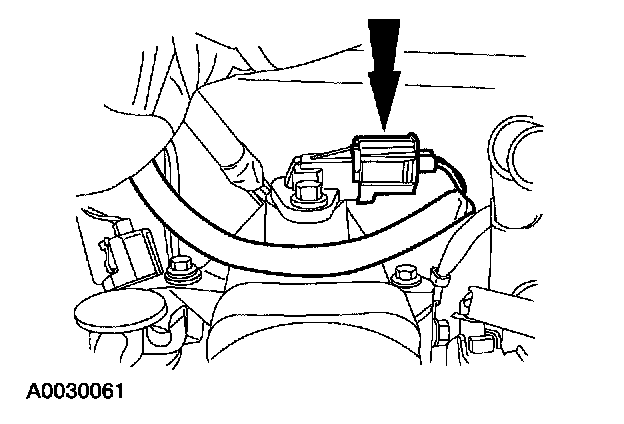

11. Disconnect the electric EGR (EEGR) valve electrical connector.

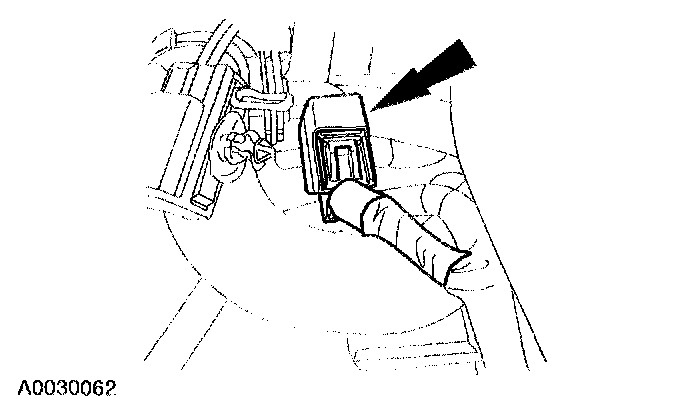

12. Disconnect the camshaft position sensor.

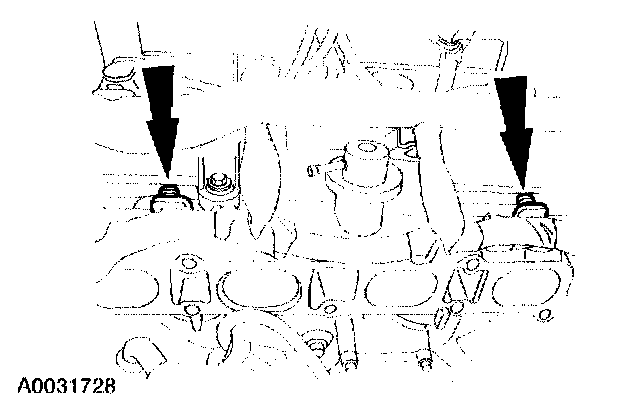

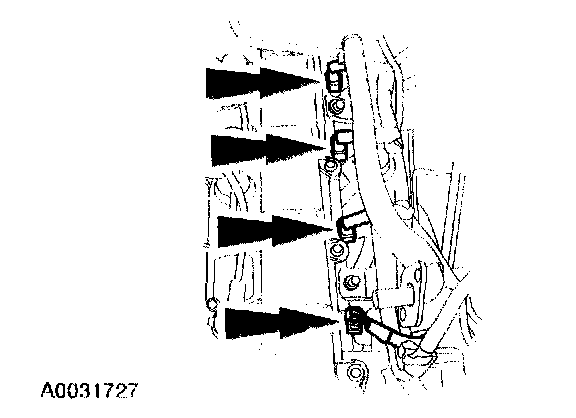

13. Disconnect the fuel injectors.

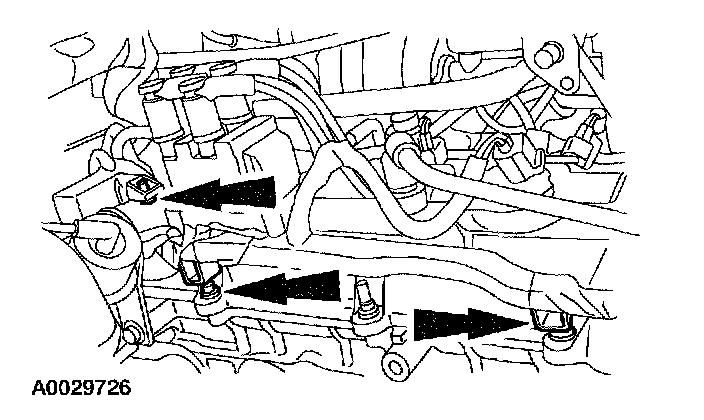

14. Disconnect the fuel injector wiring from the fuel rail.
15. Disconnect the heated oxygen sensor (HO2S) electrical connector and detach the connector from the bracket.
16. Disconnect the transmission wiring harness.
17. Disconnect the thermostat housing electrical connector electrical connector.

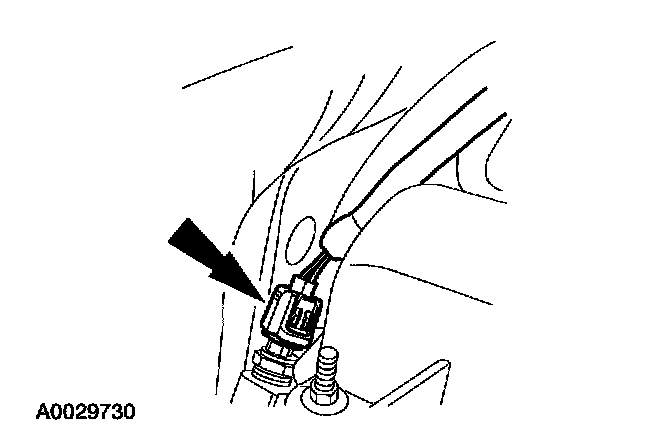

18. Disconnect the power steering pressure (PSP) switch.

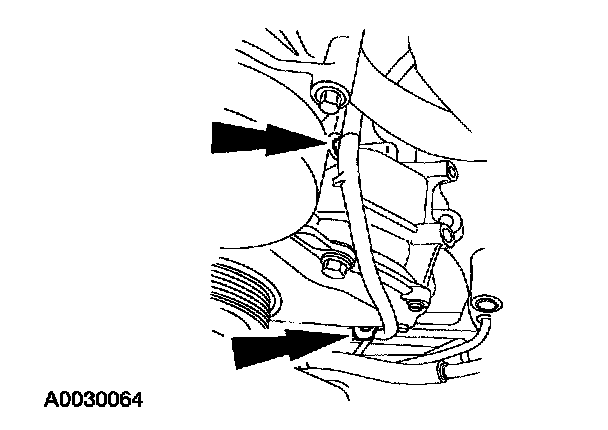

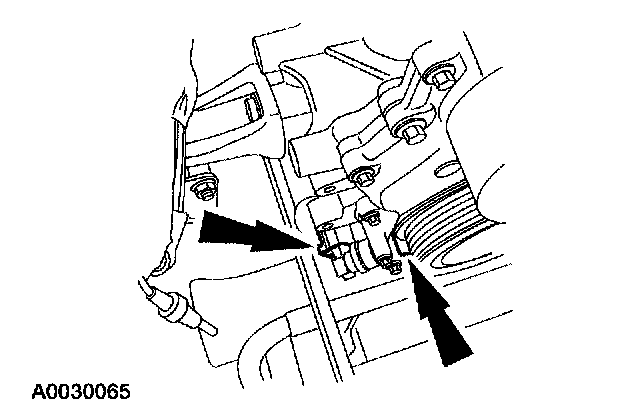

19. Disconnect the crankshaft sensor wiring from the front cover.
20. Disconnect the crankshaft sensor connector and wiring from the front cover.
21. Remove the engine wiring harness from the engine compartment.
22. To install, reverse the removal procedure.
