Drum Brake System: Testing and Inspection

BRAKE DRUM INSPECTION

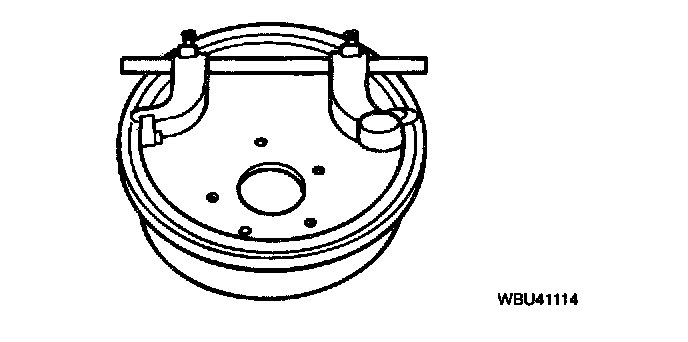

1. Drum Inner Diameter

Standard Diameter
Shown on drum

Diameter Limit
Standard diameter + 0.762 mm (0.030 in)

Caution:
^ When repairing or replacing the drum, check the contact with the shoe.
