Front Wheel Speed Sensor Rotor

FRONT SPEED SENSOR ROTOR (4X2) REMOVAL / INSTALLATION
1. Remove the disc plate.

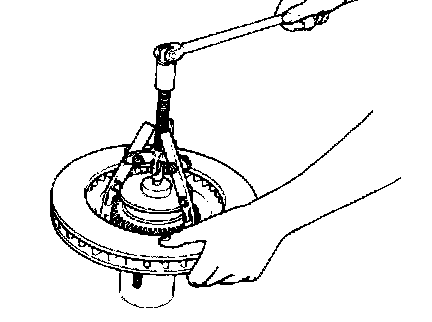

2. Remove the speed sensor rotor from the disc plate using a 3-jaw puller.
3. Install in reverse order of removal, referring to Installation Note.

Front Speed Sensor Rotor Installation Note

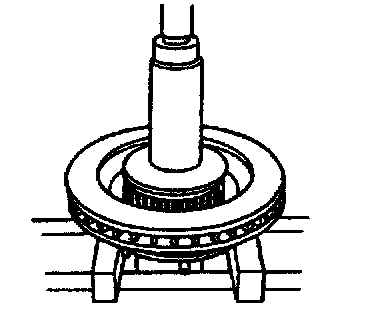

1. Press the new speed sensor rotor on the disc plate using a cylinder with a 79 mm (3.1 in) ID and a 96 mm (3.8 in) OD.
