Mazda Truck
>>
2002
>>
B2300 SE Regular Cab 2WD L4-2.3L VIN D
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Antilock Brakes / Traction Control Systems
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Module Communication
>>
2: No Module / Network Communication - ISO 9141 Network
2: No Module / Network Communication - ISO 9141 Network

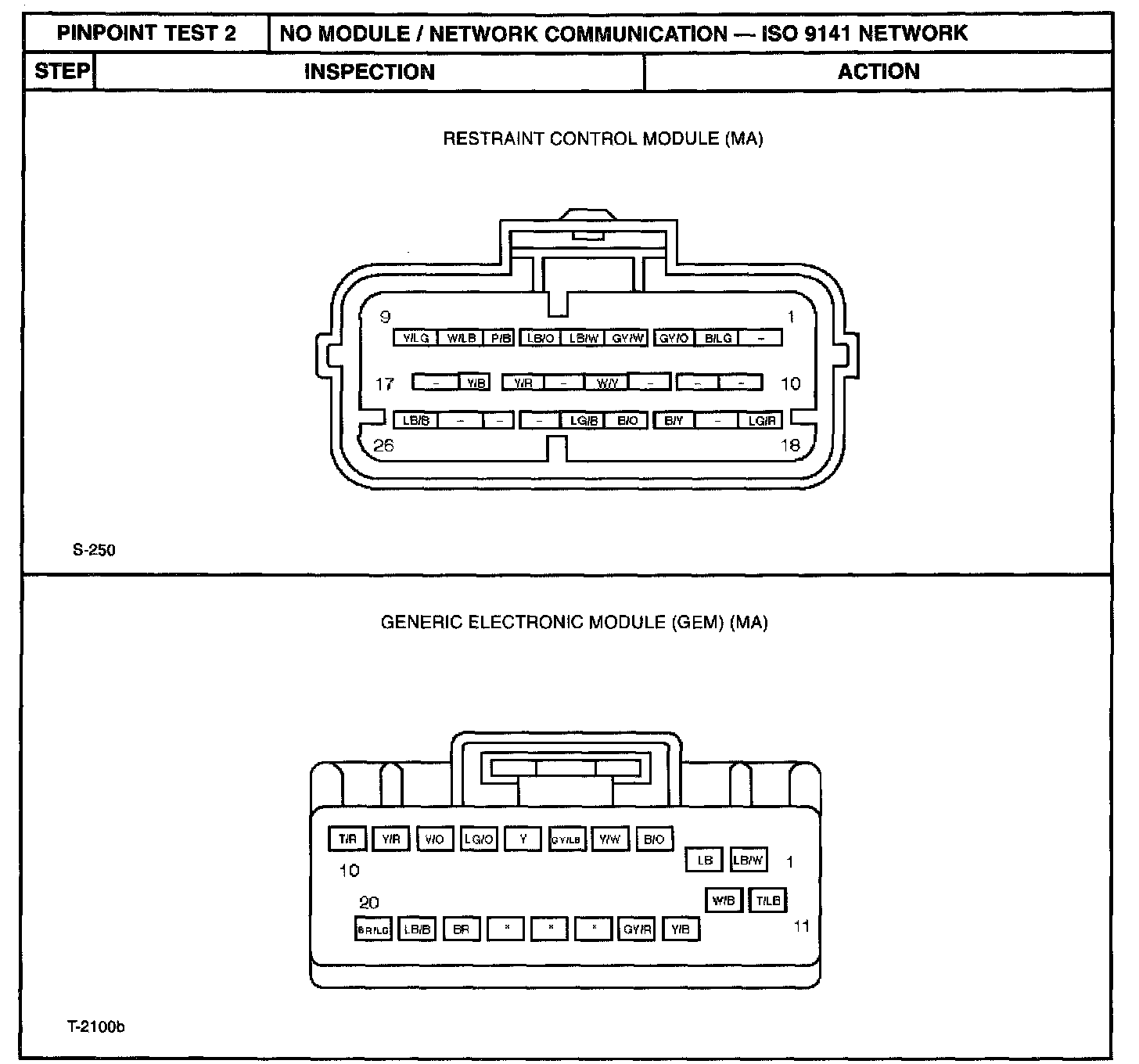

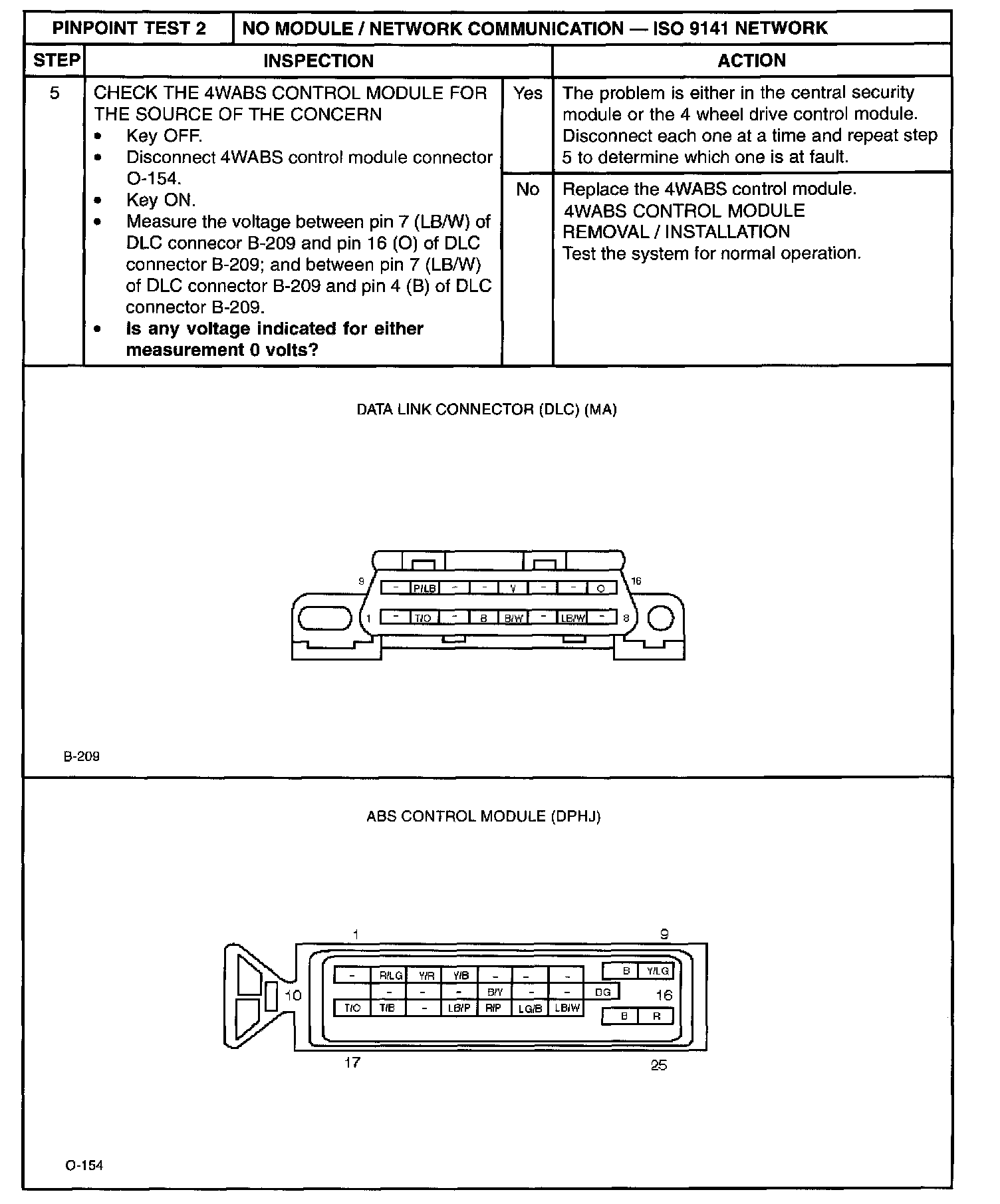

PINPOINT TEST 2: NO MODULE / NETWORK COMMUNICATION - ISO 9141 NETWORK
1 of 3
2 of 3
3 of 3
