Mazda Truck
>>
2002
>>
B2300 SE Regular Cab 2WD L4-2.3L VIN D
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Antilock Brakes / Traction Control Systems
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
4 Wheel Anti-Lock Brake System (4WABS) Diagnosis
>>
3: No Communication With the Module - 4WABS Control Module
3: No Communication With the Module - 4WABS Control Module

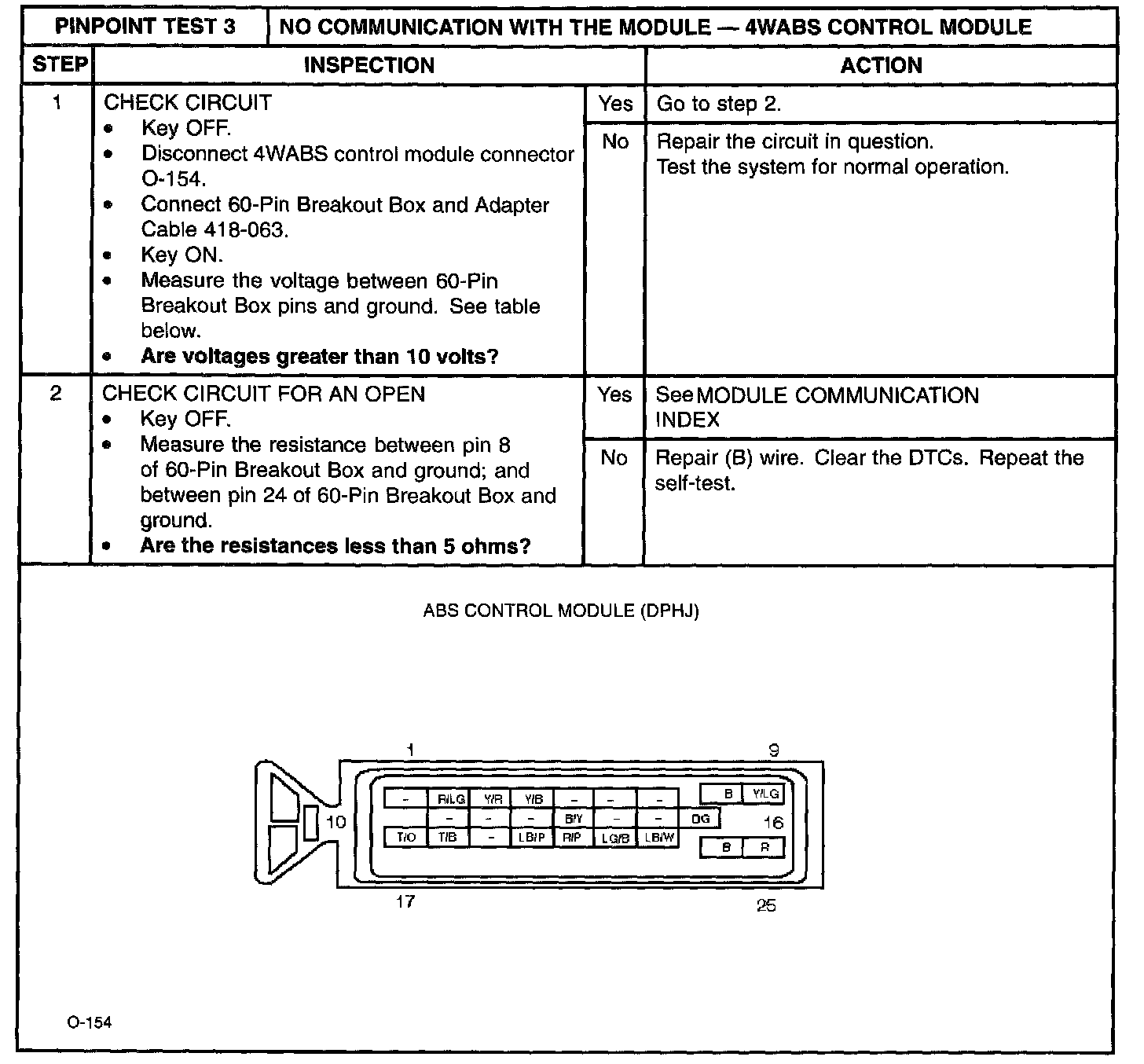

PINPOINT TEST 3: NO COMMUNICATION WITH THE MODULE - 4WABS CONTROL MODULE

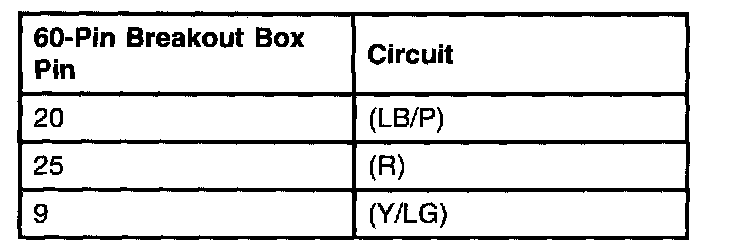

1 of 2
2 of 2
