Power Take Off Unit Driven Gear Seal

Removal
1. Remove the power take off (PTO) unit.





2. Using the special tools, remove the driven gear seal.

Installation

Note: Clean the inside of the driven gear of foreign material prior to installation.

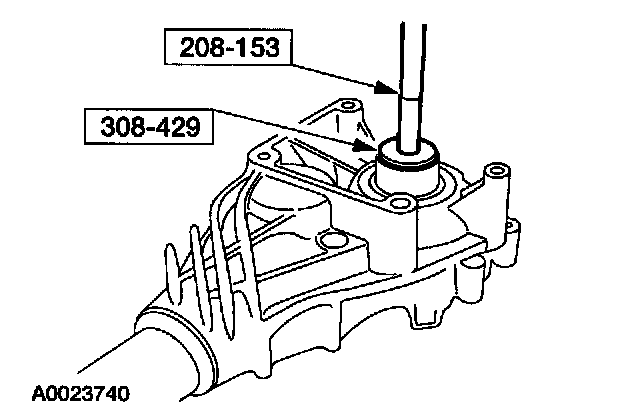

1. Using the special tools, install the driven gear seal.
2. Install the power take off (PTO) unit.
3. Fill the power take off (PTO) unit.
4. Check the transaxle fluid level.
